M8 X 110Mm Cup Sq Bolt X2; M8 X 150Mm Cup Sq Bolt X1 - TP active fun Kingswood2 Bedienungsanleitung

TP479 Kingswood2 SwingArm In0479-A 04 13:TP479 Kingswood2 SwingArm In0479-A 04 13 10/04/2013 10:47 Page 9
5
6
MW0069
MW0068

M8 x 150mm Cup Sq Bolt x1

FA8760

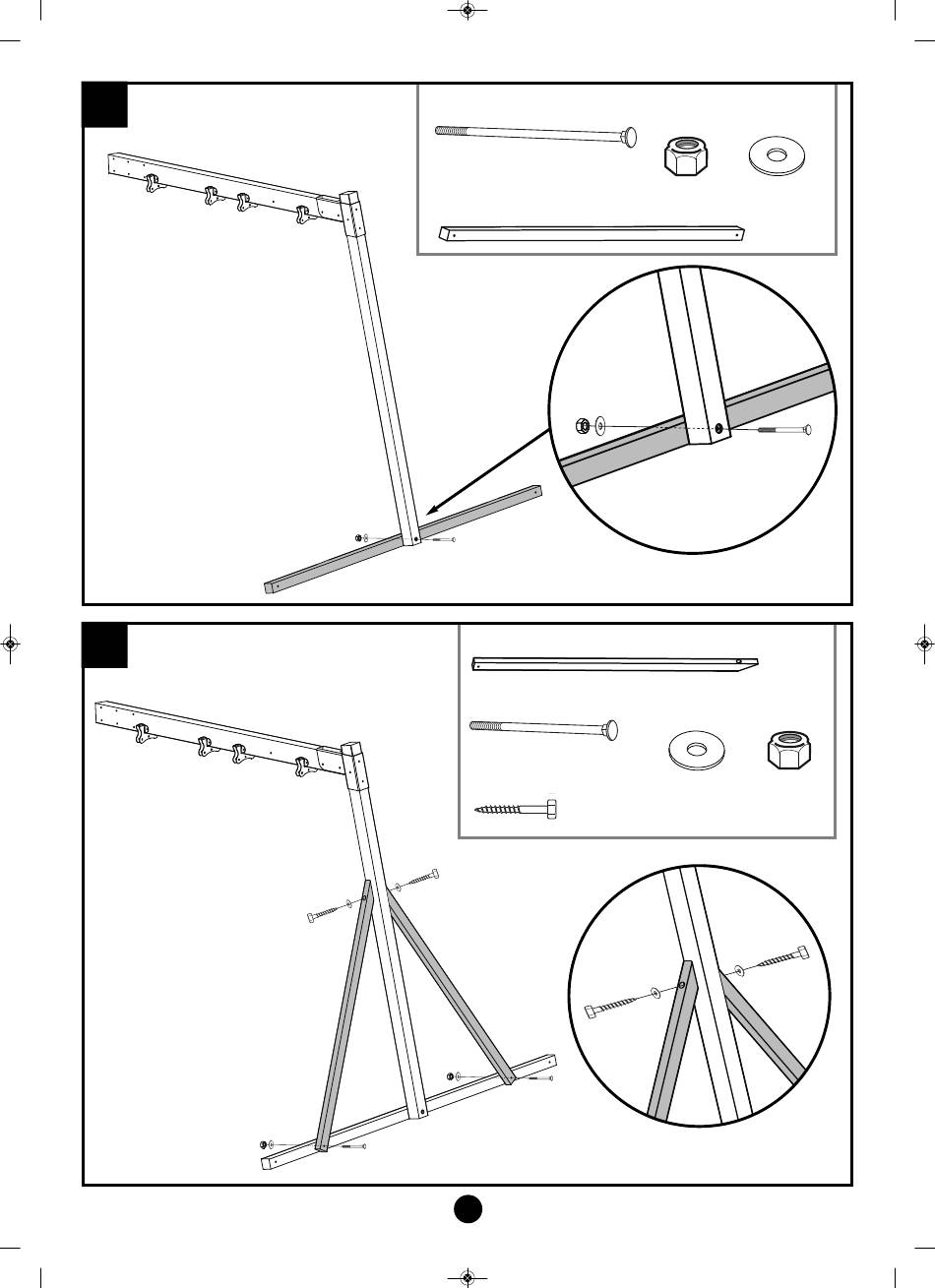

MW0069 Ground Support 2800mm
MW0068 Angled Brace 1830mm

M8 x 110mm Cup Sq Bolt x2

FA8438
M8 x 70mm
Coach screw x2
FA8022
MW0068
9
M8 Nylon M8 x 25mm
Insert Nut Large washer
FA5174 FA8023
x1 x1
x1
x2
M8 x 25mm M8 Nylon
Large washer Insert Nut
FA8023 FA5174
x4 x2
TP Kingswood2 Swing Arm
