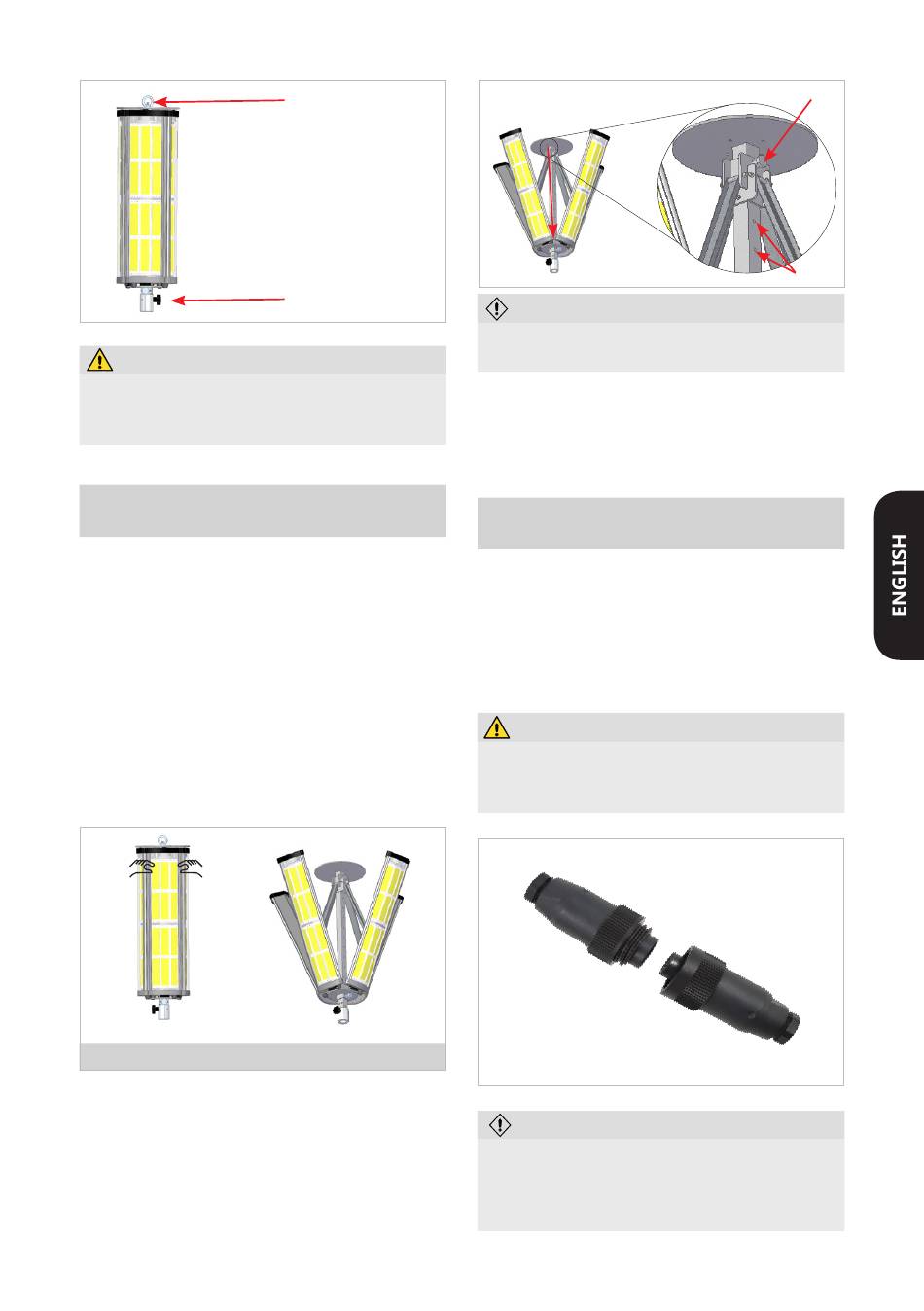

WARNING! Risk of injury!
Implicitly fix the luminaire with the star grip by
tightening it clockwise. That way, you avoid acci-
dents and injuries.
Adjustment of the modules
(suspended operation)
The ALDEBARAN 360 GRAD FLEX-C 2.0
®
luminaire has 4 single light modules that can be
adjusted via mechanics for the requirements of
the worksplace. Therefore, the modules can be
adjusted to the required position between 0-70°
of inclination after unlocking.
1. Unlocking of the modules
Before you can adjust the inclination of the
luminaire (8-fold screening), the magnetically
locked modules need to be unlocked, therefore
grab every single light module with both hands
at the sides and pull it towards the body.
Picture 1 (transport mode)
2. Adjusting the luminaire's inclination (sus-
pended operation)
In order to adjust the required inclination, pull
out the upper detent pin and lower the lumi-
naire to the required inclination. For fixing of
the adjusted position, the detent pin has to lock
into the default hole.
Ring nut
Star grip
Picture 2
ATTENTION! Risk of injury!
The detent pin must lock into the required positi-
on. That way, you avoid accidents and injuries.
3.

Folding up the luminaire

The luminaire can be put again into its initial
position by carrying out the steps described
above in reverse order.

Operation

Connectors (only -C versions):
To connect the supply lead, insert the cable connec-
tor of the lead into the cable socket of the luminaire
and turn it clockwise. To disconnect the lead, turn the
connector counterclockwise and pull out the cable
connector.
DANGER! Electrical current!
Make sure that the luminaire is disconnected from
the mains supply before connecting or disconnec-
ting the supply line.
ATTENTION!
Luminaire may only be operated with the original
supply cable, supply line in replacement / repair
only from manufacturer or his service represen-
tative
Upper detent pin
Holes
