E. Connect Your Device to the PC
U2600A Quick Start Guide
1 After all installations have been successfully completed, connect the
power cord to the AC/DC power adapter. The AC/DC power adapter
requirements are 110 V/240 VAC, 50/60 Hz, with output voltage of +12
VDC.
2 Insert the DC output plug from the AC/DC power adapter to the power
jack on the rear panel of the USB device.
3 Connect any of the U2600A Series instrument to any USB ports on
your PC with the USB cable.

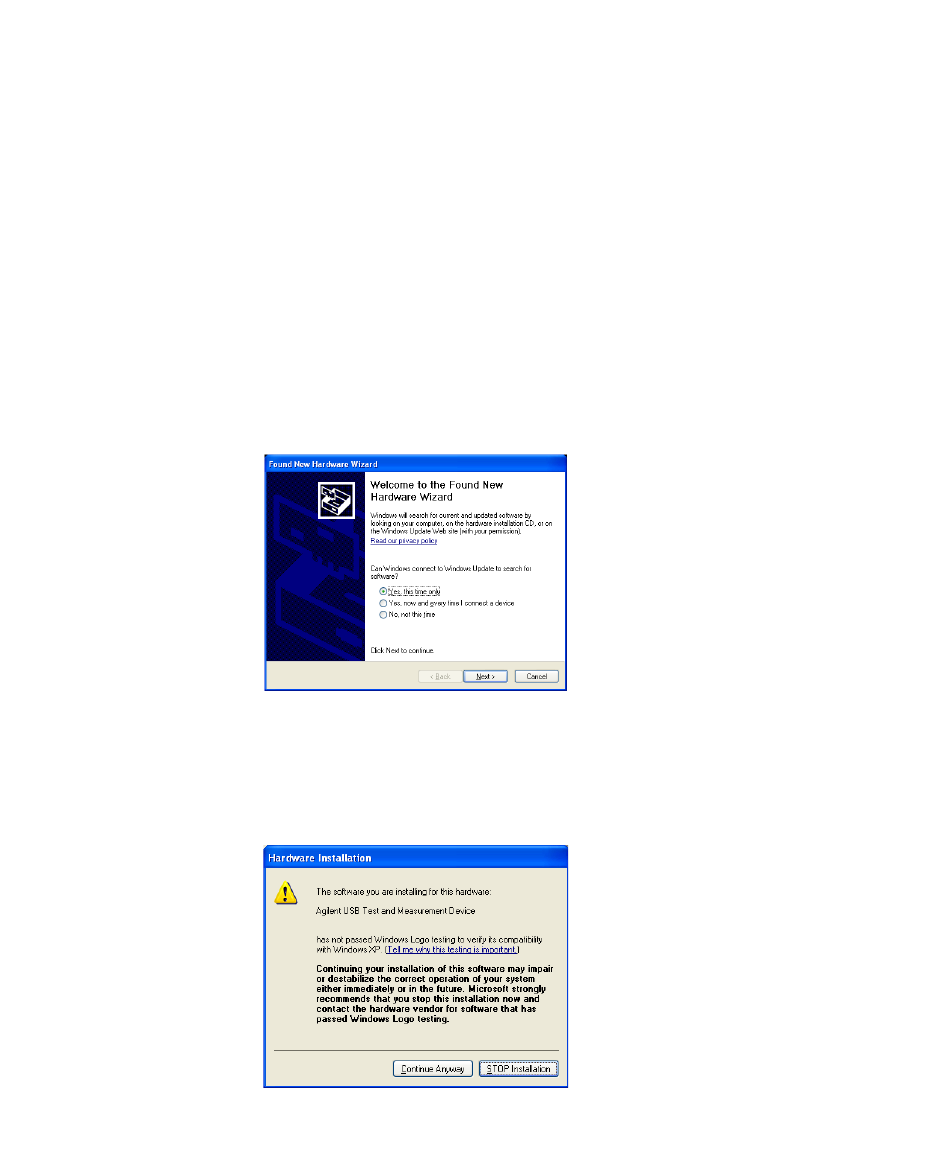

4 If this is the first time you connect the instrument to your PC, the
Found New Hardware Wizard window will appear as shown below.
Select Yes, this time only and click Next to proceed.
5 Select Install the software automatically (Recommended) and click
Next.
6 A warning message will appear in Hardware Installation window, as
shown below. Click Continue Anyway to proceed with the installation
of the driver.
15
