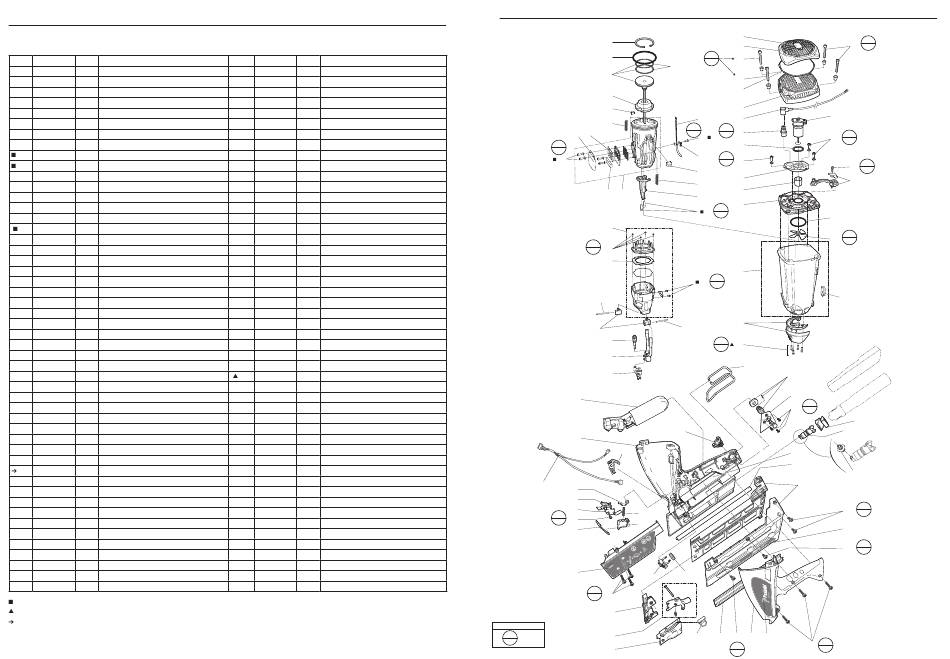

PARTS LEGEND
1
336680
1
Retainer ring
2
013743
1
Cylinder o-ring
3
013735
1
Piston assembly
4
336670
2
Piston ring
5
013778
1
Bumper
6
013758
2
Rubber stop
7
013779
2
Combustion chamber spring
10
336560
1
Reed valve
11
336580
1
Muffler cover
12
405141
5
Screw swage form 4-11
13
405140
1
Screw swage form 4-9
14
336570
1
Muffler
15
013751
1
Cylinder assembly
16
013737
1
Injection pipe assembly
17
013738
1
Bracket fuel line
18
013757
1
Nose
19
013796
2
Screw CHC M5-16
20
013749
1
Combustion Chamber Assembly
21
900456
4
Screw swage form 4-15
22
013750
1
Seal
23
013805
2
Screw taptite 4x8
24
013781
2
Combustion chamber stop pin
25
013780
2
Combustion chamber stop assembly
26
013742
1
Knob assembly
27
013744
1
Upper probe assembly
28
013745
1
Probe
29
013791
1
Grill label
30
013790
1
Grill assembly
31
013797
4
Screw CHC M5-35
33
013748
1
Filter
34
013770
1
Cap
35
013732
1
Spark plug contact assembly
36
013287
1
Motor assembly
37
013731
1
Spark plug assembly (901706)
38
321610
1
Retaining ring
39
334310
1
Motor mount
40
321590
1
Motor sleeve
41
013289
1
Wire assembly
42
013740
1
Cylinder head
43
321650
1
Cylinder head O-Ring
44
321660
1
Fan blade assembly
45
013769
1
Carter
46
013787
1
Nose protection
47
013789
1
Belt hook
48
013792
1
Magazine ball assembly
49
013788
1
Cover balll
50
013798
8
Screw Eco-syn Torx 4x12
51
013793
1
Magazine knob
53
013768
1
Handle assembly
55
013773
1
Handle label
56
013734
1
Contact level
Apply Loctite RC-620 (Green)
Apply Loctite 243 (Blue)
Denotes Change
IM90i
Part No. 010332 (EU), 010333(UK)
57
013785
1
Contactor plate
58
013784
1
Combustion chamber lock bar
59
013783
1
Trigger spring
60
013782
1
Trigger
61
013799
6
Screw Eco-syn Torx 4x25
62
013776
1
Handle cover assembly
63
013777
1
Under magazine label
64
013741
1
Shear block
65
013761
1
Follower assembly
66
013762
1
Follower buttom assembly
67
013767
1
Follower spring
68
013746
1
Battery electrical connection ass.
69
401450
1
Battery pad
70
013764
1
Cover plate magazine (short)
71
013765
1
Cover plate magazine (long)
72
013772
1
Assembly carter labels
73
013794
1
Magazine label (short)
74
013801
1
Magazine label (long)
75
013759
1
Magazine assembly (short)
76
013760
1
Magazine assembly (long)
77
013763
1
Nail channel (short)
78
013766
1
Nail channel (long)
79
013775
1
Nameplate label
81
013786
1
Ejection buttom assembly
82
013739
1
Electrovalve plug connection
83
404702
1
Screw thread forming 6 x 3/8
84
013808
1
Wires guide
85
013231
1
Maintenance kit (filter + o'ring)
86
013811
1
Wire assembly guide
87
013812
1
Electrovalve heat protection
88
013813
4
Screw CHC M5-16
52-1
013299
Red MEFI IM90i
80-1 013298
Red electrovalve assembly
52-2 013730
Black MEFI IM90i
80-2 013771
Black electrovalve assembly
IM90i
1
2
4
3
5
6
7
11
10
3.8
4
12
14
15
20
4.7
21
5
22
24
25
26
27
28
52-1
52-2
51
53-72-55
86
41
56
41
57
59
1.5
50
1.7
60
58
62-63
68
1.5
61
1.7
64
TORQUE VALUES
MIN
66
N.m
MAX
65
Part No. 010332 (EU), 010333(UK)
29
31
30
5.2
31
5.6
31
85-33
34
36
35
16
3.4
2.2
37
4
2.8
3.4
13
12
4
38
17
3.4
12
4
83
6
39
84
7
40
18
42
6
19
6.5
43-85
1
44
1.2
45
2.2
23
2.8
87
46
24
6
88
6.5
47
48
49
1.5
50
1.7
48
81
80-1
80-2
79
77-78
82
75-76
1.5
50
1.7
73-74
1.5
50
1.7
69
67
70-71
50
53
72
1.5
61
1.5
1.7
1.7
5.2
5.6
1.5
1.7
