Location Of Controls; Power Supply - Seg RR 1330 Bedienungsanleitung

19
18 20
13
6
14
11
26 17
7 15
1. NEXT button
2. FOLDER UP button
3. FM STEREO LED
4. CD compartment
5. Tuning lens
6. FUNCTION switch
7. PLAY MODE button
8. MODE (FM stereo/mono) switch
9. TUNING dial
10. USB port
11. Earphones jack
12. Open/Close CD
13. Handle
14. VOLUME dial
Using the AC power supply
Insert the AC power cord into an AC mains outlet with a 230V AC ~ 50Hz power
source and insert the other end into the AC ~ socket at the back of the unit.
Using batteries
1. Open the battery compartment.
2. Insert 8 UM2/ "C" size batteries (not supplied) with the polarities (+/-) matching
the markings in the battery compartment. Reversed batteries may damage
the unit.
3. Close the battery compartment.
Note: When AC power is supplied, the battery power is cut off automatically.

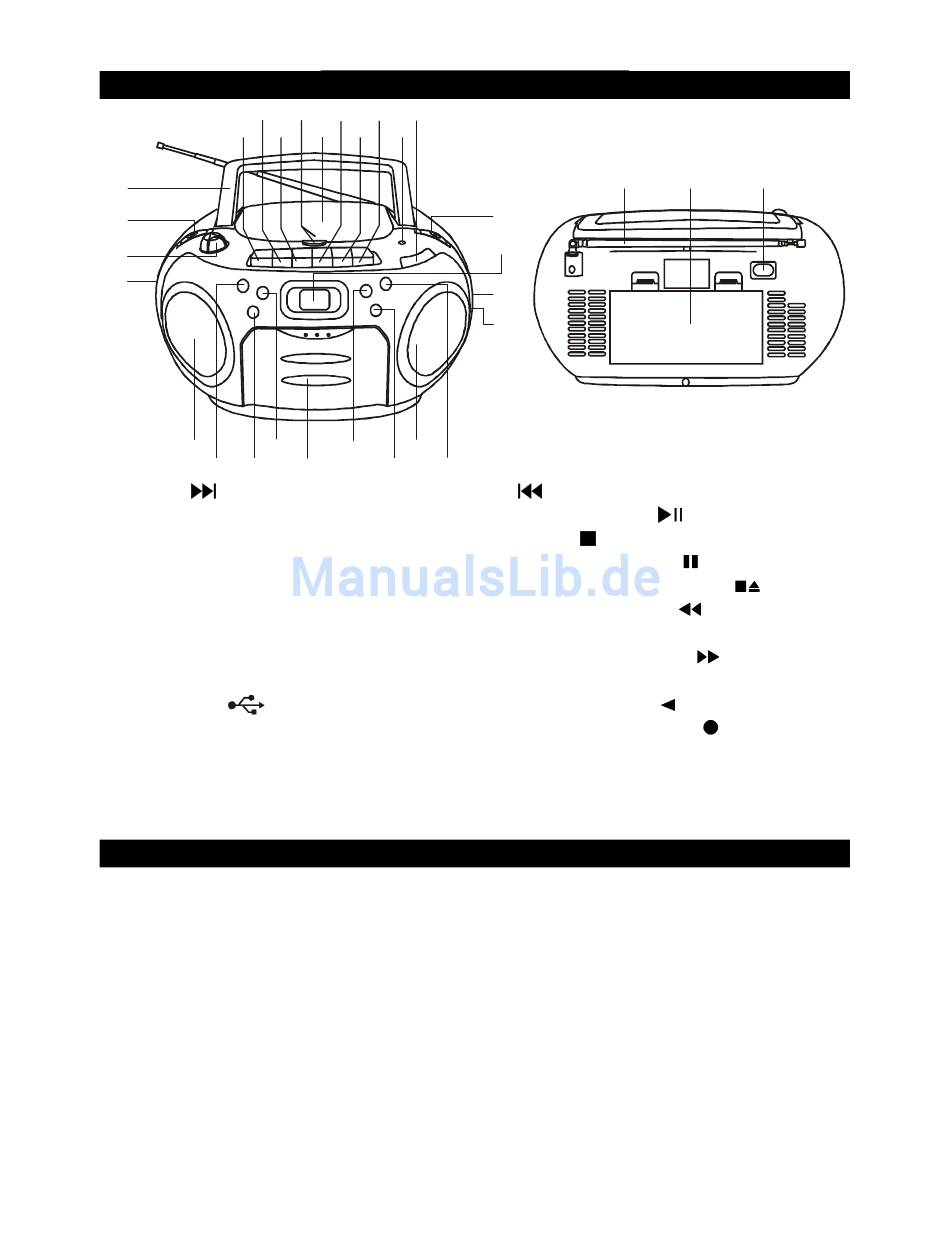

LOCATION OF CONTROLS

25 5
12 22
4 24 3
16 26
23 1 2

POWER SUPPLY

GB-4
29
8
21
9
10
15. PREVIOUS button
16. PLAY/ PAUSE
17. STOP / CD/USB button
18. Cassette PAUSE
19. Cassette STOP/EJECT
20. Cassette F.FWD
21. LCD display
22. Cassette REWIND
23. Cassette compartment
24. Cassette PLAY
25. Cassette RECORD
26. Speaker
27. AC ~ socket
28. Battery compartment
29. FM antenna
28 27
button
button
button
button
button
button
button
