TV Wall Mount Installation Instructions
GB GB
Caution:
1. It is recommended for this product to be installed by at least two persons, of
which at least one person should be physically fit enough to handle heavy
loads and technically skilled.
2. Before installing, please read this manual and make sure that there are no
electrical cords, gas or water pipes in the place designated for mounting the
holder.
3. We are not responsible for any damage incurred during installation, improper
installation or subsequent use.
4. If in doubt, contact your nearest dealer and ask for assistance with installation.
5. For installation it is necessary to use safe and appropriate tools. Disregarding
the instructions may cause property damage or injury.
6. If you intend to remove the TV from the wall, always make sure all electrical
cords are unplugged.
7. If you are unsure of your wall load, select a different location for your installation
or carrying capacity and increase the strength of the wall with renovation.
8. The product can be installed only for flat screen televisions or televisions
containing mounting holes and have a flat back wall. To ensure that this holder
is compatible with your TV search for a compatible holder on the following
website www.emos.eu/DRTV
Tools necessary for installation (not included):
Philips Head Screw Driver
Electric or Portable Drill
Drill bit with 10 mm in Diameter (for Wood, Concrete, or as needed)
Plaster Board or Chipboard Anchors (as needed)
Pencil
Level (if not included)
Included:
A
B
D
E
H
I
J
K
L
N
O
Prior to every installation, remove the entire contents of the package and carefully
lay-out all its parts.
EMOS spol. s r. o., cz
Type of Installation Material Pieces
Anchor 10/50mm
Wall Anchor Bolt 8/63mm
Anchor Bolt 4/12mm
Anchor Bolt 4/22mm
Anchor Bolt 6/12mm
Anchor Bolt 6/22mm
Anchor Bolt 8/15mm
Anchor Bolt 8/30mm
Screw Pads 4.5/10mm
Screw Pads 6.3/14mm
Rubber Gasket 15*8/15mm
0-0-0-K

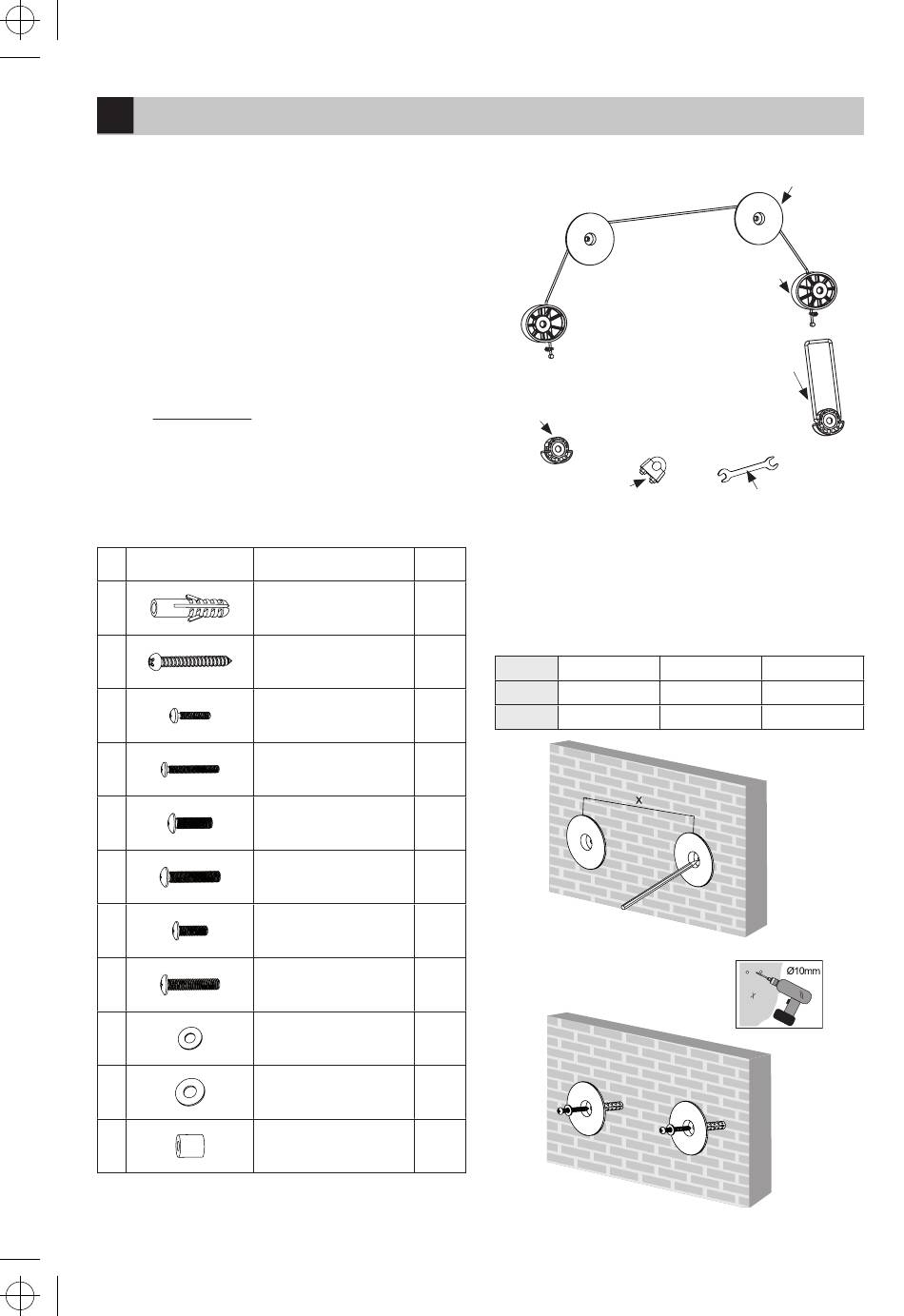

Diagram:
Rubber Pad
Tightening lock nut
Attaching the Wall Mount:
Carefully consider the location of your TV screen. To install the wall mount it is
necessary to drill into the wall. It is advisable to find the position of mounting holes
on the back of your TV and mark their approximate position on the wall. Given
the construction of the wall mount you can then determine the position of the
so-called "wall piece".
Before installation, first check the size of the mounting holes in your TV. Accordingly,
2
you must select the spacing of two wall studs – parameter X (see Table and Figure
1).According to the size, using 2 tightening lock nuts, you need to secure the length
of metal wire – parameter L ( see Table and Figure 2).
2
VESA ≤200x200mm
X 80-100mm
4
L 400mm
4
4
4
4
4
4
4
4
2
Wall Piece
Mounting Rail
Mount
Key to tighten the lock nut
<400x400mm <600x600mm
180-220mm 380-420mm
500mm 750mm
