AV14 Vehicle Cradle Instructions

Use these instructions to install the vehicle cradle (Model AV14)
on model PB21, PB22, PB31, and PB32 printers. The vehicle
cradle provides a convenient way to mount the printer on your
vehicle for charging or printing.
Items Provided in the Kit
•
•
•
•
•
•
•
•
Note: The vehicle cradle comes configured for use with the
model PB31 and PB32 printers. If you are using a model PB21 or
PB22 printer, you will need to remove the PB31/PB32 base and
install the PB21/PB22 base. You also need to adjust the latch
hooks at the top of the vehicle cradle.
To change the base and adjust the latch hooks

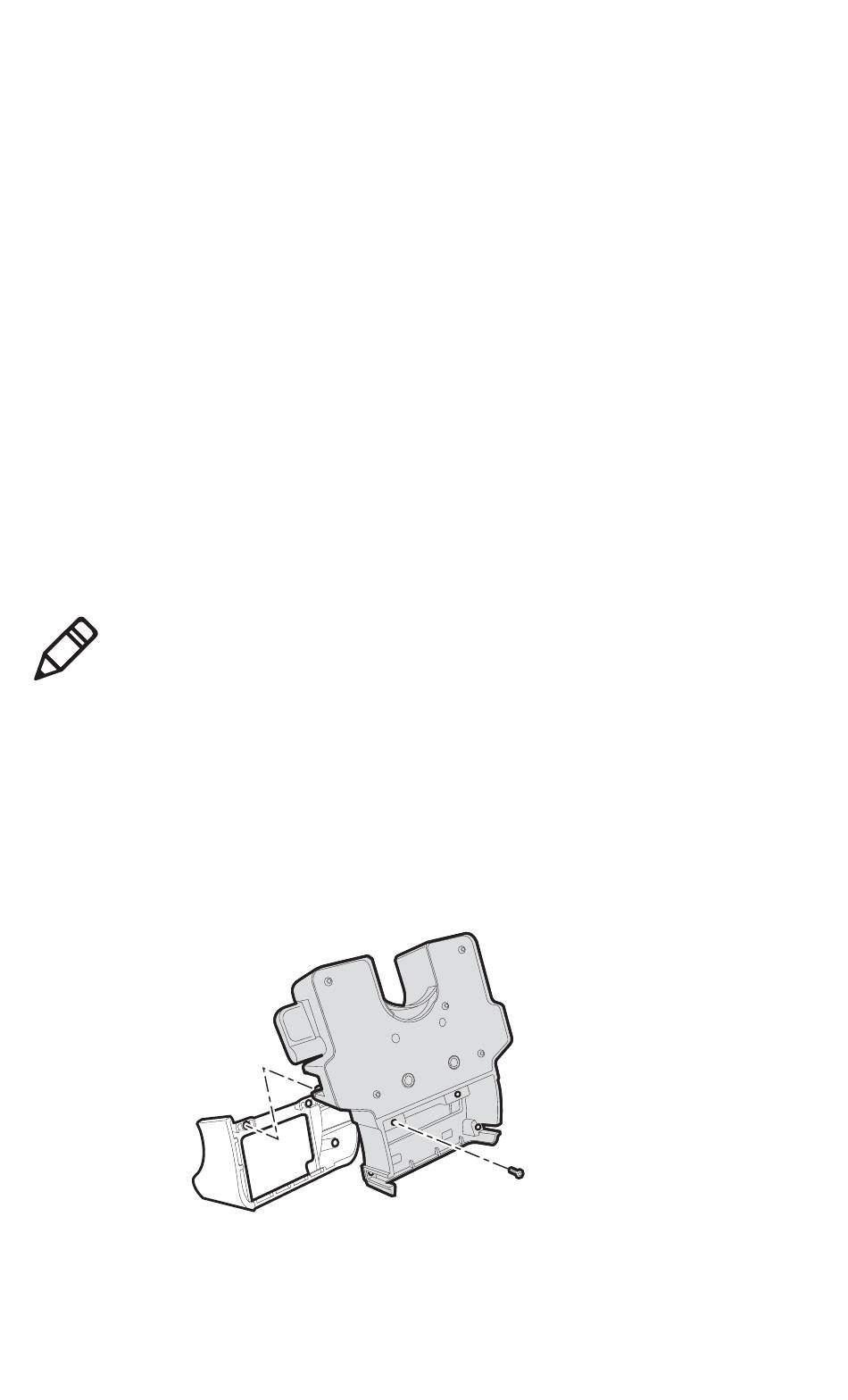

1 Using a small Phillips screwdriver remove the four screws
Mounting hardware
RAM vehicle mount base
Mounting arm
RAM vehicle base
Mounting arm
Vehicle cradle
Installation instructions
PB21/PB22 vehicle cradle base
attaching the PB31/PB32 base to the vehicle cradle.
Screw (4 places)
1
