18 Technical Information
Procedure for Installation of the RS232 -
RS485 Protocol Converter

Particular Characteristics

The protocol converter operates at physical level; it does not make
any check on the frame in transit and can therefore be used for
products that do not use the standard protocol.

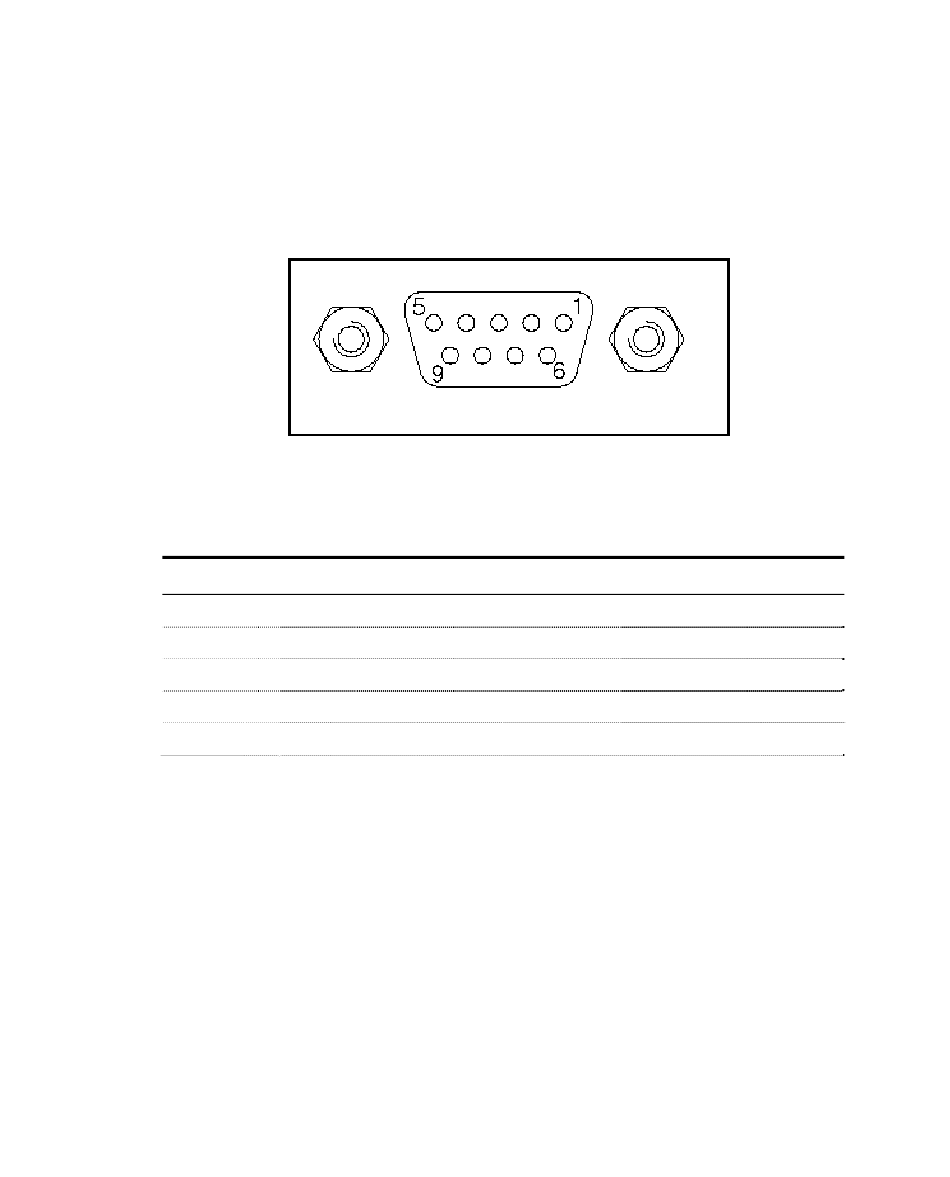

Figure 1
Table 3
J1 – RS232
2
3
5

Connection Diagram

There are two different connection schemes if you use the wire or
fiber version.
The following figure shows the typical connection of the Protocol
Converter Wire version with a Agilent MoniTorr RS485 network. If
the connection cable is too long or if it crosses noisy environments, a
twisted and shielded cable should be used.
136/146
PIN OUT
J2 – RS485
TX 1
RX 3
GND 5
6
8
Protocol Converter RS232-485 User Manual / 87-900-974-01 (E)
A
A
GND
B
B
