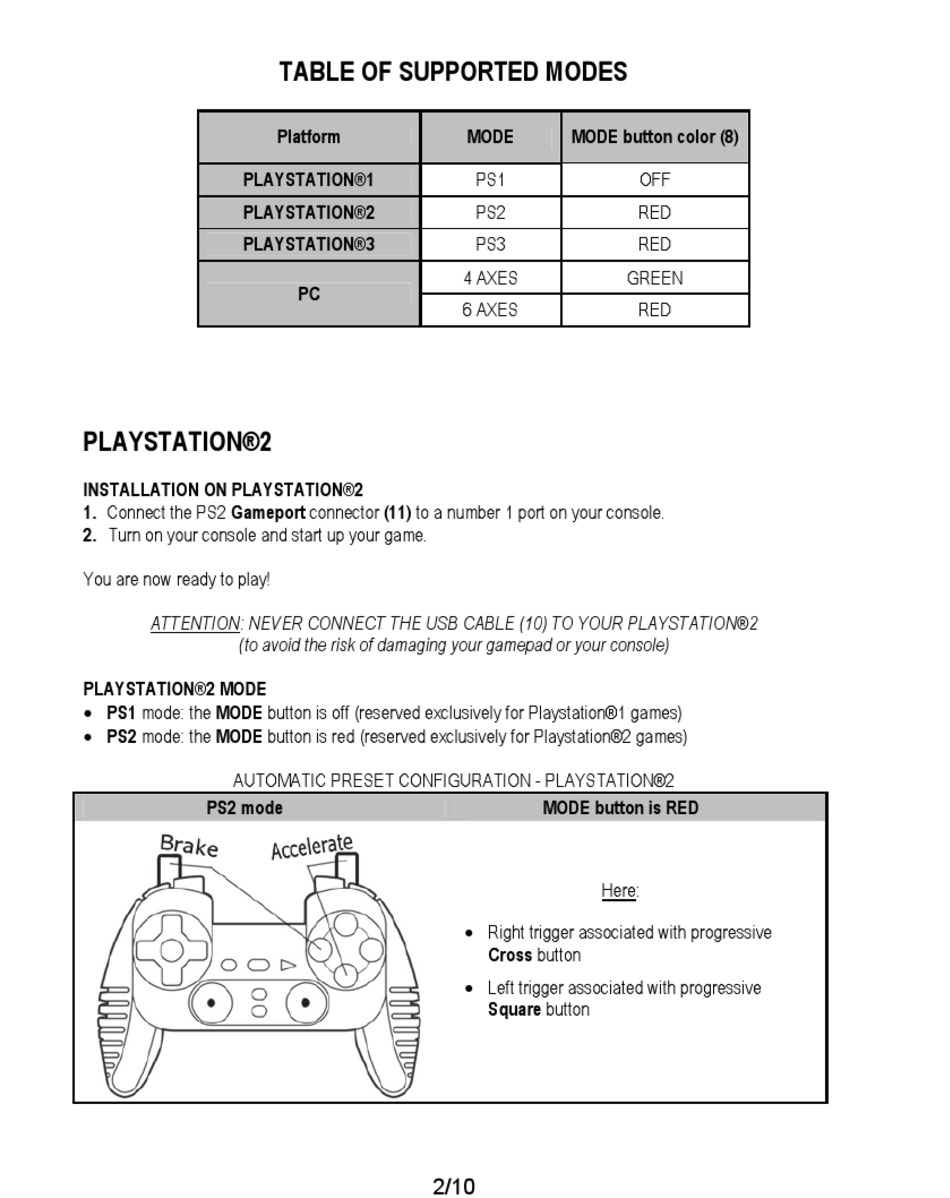

Thrustmaster Dual Trigger 3-in-1 Benutzerhandbuch Seite 3

PLAYSTATION®1
PLAYSTATION®2
PLAYSTATION®3
PLAYSTATION®2
INSTALLATION ON PLAYSTATION®2
1. Connect the PS2 Gameport connector (11) to a number 1 port on your console.
2. Turn on your console and start up your game.
You are now ready to play!
ATTENTION: NEVER CONNECT THE USB CABLE (10) TO YOUR PLAYSTATION®2
(to avoid the risk of damaging your gamepad or your console)
PLAYSTATION®2 MODE
 PS1 mode: the MODE button is off (reserved exclusively for Playstation®1 games)
 PS2 mode: the MODE button is red (reserved exclusively for Playstation®2 games)
AUTOMATIC PRESET CONFIGURATION - PLAYSTATION®2
PS2 mode
TABLE OF SUPPORTED MODES
Platform
PC
2/10
MODE MODE button color (8)
PS1 OFF
PS2 RED
PS3 RED
4 AXES GREEN
6 AXES RED
MODE button is RED
Here:
 Right trigger associated with progressive
Cross button
 Left trigger associated with progressive
Square button
