q2429a • q2430a • q2436a • q2437a
maintain
mantenimiento
maintenance
wartung
manutenzione
lea esto primero

Werbung

loading

Inhaltszusammenfassung für HP q2429a

  • Seite 1 • q2430a • q2436a • q2437a maintain mantenimiento maintenance wartung manutenzione lea esto primero...

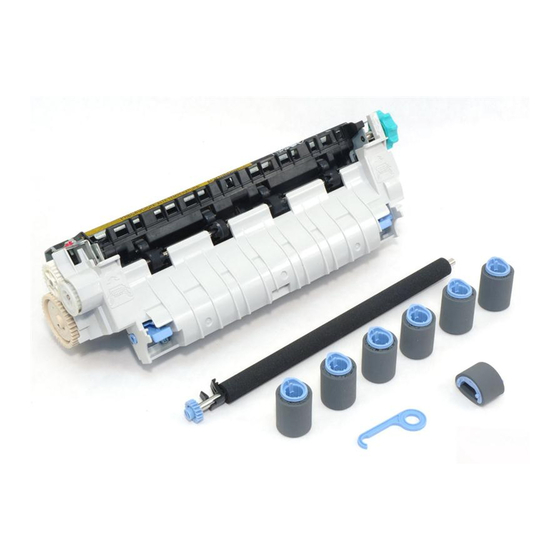

  • Seite 2 This package contains one fuser, one transfer Note: The cost of this kit is not covered under Turn the printer power off. WARNING! After you roller, one plastic transfer-roller tool, one pickup the original printer warranty or under most turn the printer power off, allow the fuser to cool roller, six feed rollers, and one pair of extended warranties.
  • Seite 3 Turn the printer so that its rear cover faces you. Disconnect all cables from the rear of the To replace the transfer roller: Turn the printer so Lift and pull to remove the optional duplexer, if it printer. that the front is facing you. Open the top cover is installed.
  • Seite 4 Use the plastic transfer-roller tool (1) to lift the Put on the gloves and remove the protective Make sure that the black collar on the left side is left end of the metal shaft upward (2). Slide the sheet from the new transfer roller. CAUTION: oriented properly, with the open end down.
  • Seite 5 Install the print cartridge, and then close the top To replace the tray-1 pickup roller: If an optional If an optional envelope feeder is not installed, cover. envelope feeder is installed, remove it by open tray 1 and remove the envelope-entrance pressing the envelope-feeder release button (1) cover.
  • Seite 6 Locate the pickup roller at the center of tray 1. Release the roller by sliding apart the two Place the new pickup roller onto the shaft. Align latches located on each side at the top of the the pin that is located on each side at the roller.
  • Seite 7 Insert the envelope-entrance cover (1) or the To replace the feed rollers in tray 2: Remove Pinch the blue latch that is on the left side of the optional envelope feeder (2). tray 2 from the printer. Find the cover that is feed roller (1).
  • Seite 8 Slide a new feed roller onto the shaft. Note: It is Move the front of the printer to the edge of the Pinch the blue latch on the left side of the feed important that this roller locks into place. If it table top for better access to the feed roller that roller (1).
  • Seite 9 Slide a new feed roller onto the shaft and rotate Insert tray 2. If no optional trays are installed, To replace the feed rollers in an optional the roller until it locks into place. Note: It is go to step 31. 500-sheet feeder: If an optional 500-sheet important that the roller locks into place.
  • Seite 10 To replace the feed rollers in an optional Push down on the release lever and open the On the inside of the door, open the small cover 1500-sheet feeder: If an optional 1500-sheet door of the 1500-sheet feeder. next to the feed roller. feeder is installed, perform steps 24 through 30.
  • Seite 11 Pinch the blue latch that is on the side of the Slide the new feed roller onto the shaft. Locate the roller at the top-center inside the feed roller and slide the roller off the shaft. Note: It is important that this roller locks into 1500-sheet feeder.
  • Seite 12 Slide a new feed roller onto the shaft and rotate Close the door of the 1500-sheet feeder. To replace the fuser: Open the rear output bin the roller until it locks into place. Note: It is and pull the extension outward until it stops. important that the roller locks into place.
  • Seite 13 Remove the rear output bin and extension by Firmly grasp each side of the fuser. Push the Remove all packing material from the new bending the middle of the bin down and blue levers upward and pull the fuser straight fuser.
  • Seite 14 Push the new fuser firmly into the printer until Install the rear output bin. Pull gently on the bin Connect the cables to the rear of the printer. the blue levers on both sides click into place. to make sure that the hinge pins are fully inserted.
  • Seite 15 Install the optional duplexer, if it was removed. To finish the installation: Turn the printer power To verify that installation is complete, print a on while holding down for several seconds, configuration page from the control panel. until all three control panel lights turn on and Press to open the printer menus.
  • Seite 16 If you purchased an exchangeable kit, you can maintenance” is reset to zero. If the number is installed or not completely seated, jams can return your old fuser to HP for credit. Pack the not reset, repeat step 39, or see the support occur.
