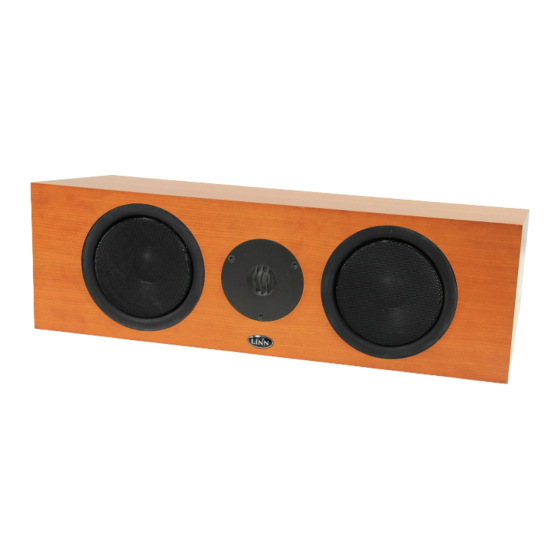

- Seite 1 LINN TRIKAN LOUDSPEAKER OWNER’S MANUAL...
-
Seite 2: Important Safety Information
GENERAL SAFETY INSTRUCTIONS Important safety information Read instructions. Read the safety and operating instructions before operating the appliance. Explanation of symbols used in this manual and on the product: Retain instructions. Retain the safety and operating instructions for future reference. Heed warnings. -
Seite 3: Ce Declaration Of Conformity
CE Declaration of Conformity Linn Products Ltd declare that this product is in conformance with the Low Voltage Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended by 92/31/EEC and 93/68/EEC. The conformity of the designated product with the provisions of Directive... -
Seite 4: Instructions De Sécurité
IINSTRUCTIONS GENERALES DE SECURITE Instructions de sécurité Veuillez lire toutes les instructions de sécurité et de fonctionnement avant d’utiliser l’appareil. Veuillez conserver les instructions de sécurité et de fonctionnement pour pouvoir vous y reporter ultérieurement. Explication des symboles utilisés dans ce manuel et sur le produit : Tenez compte des avertissements. -
Seite 5: Déclaration Fcc
CE DÉCLARATION DE CONFORMITÉ Linn Products Ltd certifie que ce produit est conforme à la directive 73/23/EEC concernant la basse tension et à la directive 89/336/EEC concernant la compatibilité électromagnétique comme amendé par les circulaires 92/31/EEC et 93/68/EEC. Les normes suivantes prouvent la parfaite conformité du présent produit aux provisions de la directive 73/23/EEC (LVD) : Numéro de norme... - Seite 6 Printed in the United Kingdom. Imprimé au Royaume-Uni. Linn TRIKAN is a trademark of Linn Products Limited. Linn TRIKAN sont des marques de Linn Products Limited. Linn Part Number: PACK 592 Numéro de référence : PACK 592...
-
Seite 7: Inhaltsverzeichnis
Positioning the TRIKAN......9 Aufstellen des TRIKAN ......9 Positionnement de l'TRIKAN. - Seite 8 Colocación del TRIKAN......9 Plaatsen van de TRIKAN......9 Preparazione dei diffusori per il collegamento .
- Seite 9 viii...
-
Seite 10: Key Features
à travers la gamme de fréquences. Musikwiedergabe über den gesamten Frequenzbereich garantiert. ❑ The TRIKAN’s drive units are fully shielded to enable placement ❑ close to a television or computer without causing picture Les enceintes TRIKAN sont pleinement protégées pour ❑... -
Seite 11: Caratteristiche Principali
❑ ❑ Le unità TRIKAN sono completamente schermate per Los altavoces de la TRIKAN están completamente apantallados De stuureenheden van de TRIKAN zijn volledig afgeschermd consentirne il posizionamento vicino a un televisore o un PC para poder colocarse cerca de un receptor de televisión u opdat u hem nabij een televisietoestel of computer kunt plaatsen senza il problema delle interferenze nelle immagini. -
Seite 12: Setting Up The Linn Trikan
Setting Up the Linn Trikan Assemblage du Linn Trikan Installation der Linn Trikan Installazione di Linn Trikan Instalación de la Linn Trikan Gebruiksklaar maken van de Linn Trikan... -
Seite 13: Safely Unpacking
Sicheres Auspacken Italiano Italiano Italiano Italiano I diffusori Linn TRIKAN sono pesanti, Fare attenzione nel sollevare oggetti Appoggiare i componenti su una Se possibile, conservare l’imballaggio per il qual motivo vanno disimballati pesanti. superficie piana, per evitare di nell’eventualità... -
Seite 14: Check You Have
TRIKAN-BI-AMP ACTIVE TRIKAN SINGLE WIRE PASSIVE Loudspeaker Grille with Velcro Linn badge, socket Bracket and 2 4 X 4mm plugs 2 double-sided link Warranty card. English English English English circles key and rubber screws boards (patent Complete the feet(x5) pending) attached warranty card and to each speaker. -
Seite 15: Fitting The Feet
Gebruik de bijgeleverde zelfklevende Breng de rubberen voetjes aan op de Een standaard of muurbeugel is ondergrond. rubberen voetjes. hoeken van de onderzijde van de leverbaar. Voor nadere informatie kast. hierover verwijzen wij u naar uw Linn- Montage van de voetjes dealer. -
Seite 16: Fitting The Bracket
English English English English The Bracket is designed so that the Lay the speaker on its front on a Place the bracket onto the speaker Using the two Phillips screws speaker sits at 90 degrees to your smooth surface. and align screws. supplied, secure the bracket onto the Fitting the Bracket shelf or Television. -
Seite 17: Positioning The Trikan As A Centre Speaker
The TRIKAN can be used as a centre The TRIKAN should be placed slightly The TRIKAN can be positioned above The four rubber feet should be fitted to English English English English loudspeaker. The TRIKAN should be closer to the rear wall than the main... -
Seite 18: Positioning The Trikan
10cm-30cm 45cm The TRIKAN can be used as the main Place the speaker so that you are the For best results the speakers should Angle speakers inward by 5 to 10 English English English English left or right speaker in a 2 channel same distance from each speaker. -
Seite 19: Configuration Options
English English English English Single wired - a single cable from Bi-wired - a single amplifier, with Bi-amplified - two amplifiers. One Bi-amplified Aktiv - the Aktiv one amplifier drives each speaker. separate wires to drive the bass/mid drives the bass/mid units. The other crossover splits the signal into two Note: This speaker is supplied in units and the treble unit. -
Seite 20: Preparing Speaker For Configuration
English English board for each configuration. This collars, and both link boards. speaker with the chosen board please contact your local Linn retailer contains the necessary linking Select the link board for the outermost. or go to www.linn.co.uk and select Preparing speaker for circuitry. -
Seite 21: Connecting Cables
TRIKAN-SINGLE-WIRE-PASSIVE TRIKAN ACTIVE English English English English Single wired Bi-wired Bi-amplified Bi-amplified Aktiv Connecting cables Français Français Français Français Câbles de connexion Mono-cablâge Bi-cablâge Bi-amplification Bi-amplification Deutsch Deutsch Deutsch Deutsch Kabelverbindungen Einfache verbindung B-Wirl Bi-ampfiler Bi-ampfiler Aktiv Italiano Italiano Italiano... -
Seite 22: Fitting The Grille
Carefully lie your speaker on a flat Remove the adhesive backing from Line up your grille with the cabinet. Remove the grille from the speaker. surface to avoid damage to your the circular velcro spots that are When alignment is correct, push firmly Push down on the velcro circles to English English... -
Seite 23: Looking After Your Speaker
English English English English Do not open the speaker; there are no Remove marks from the cabinet and Avoid getting any liquid behind the user serviceable parts inside. polish it with a soft, slightly damp grille. cloth. Looking after your speaker Ne pas ouvrir les enceintes ;... -
Seite 24: Technical Support And Information
Prière de contacter le détaillant le plus proche ou les bureaux mentionnés ci-dessous pour tout support technique, informations concer- nant les produits et autres renseignements. Les détails complets de votre distributeur local se trouvent à l'adresse : www.linn.co.uk/buy_linn/find_retailer.cfm Technische Beratung und Information Für technische Beratung, Produktanfragen und Information wenden Sie sich bitte an Ihren Händler vor Ort oder an die Adresse unten. -
Seite 25: Linn Trikan Specifications
Linn TRIKAN Specifications Spécifications du Linn TRIKAN Linn TRIKAN Technische Daten Introduced: 2001 Lancement : 2001 Eingeführt: 2001 Type: 2 way infinite baffle loudspeaker Type : Enceinte à baffle infini à double voie Typ: 2-Weg Membranlautsprecher Frequency Réponse de Frequenzgang... - Seite 26 Specifiche di Linn TRIKAN Características técnicas Linn Linn TRIKAN Specificaties TRIKAN Introdotto: 2001 Introductie: 2001 Presentado: 2001 Tipo: 2 altoparlanti a baffle infinito Type: 2-weg infinite baffle loudspreker Tipo: caja acústica de bafle infinito de 2 vías Passivo risposta di...
