1. Introduction
The MONCOLHA5PN2 is controlled by an OSD ("On-Screen Display") microcomputer, which can be used to adjust
contrast, brightness, colour and volume. Remove the protective foil from the display when bringing it into service.

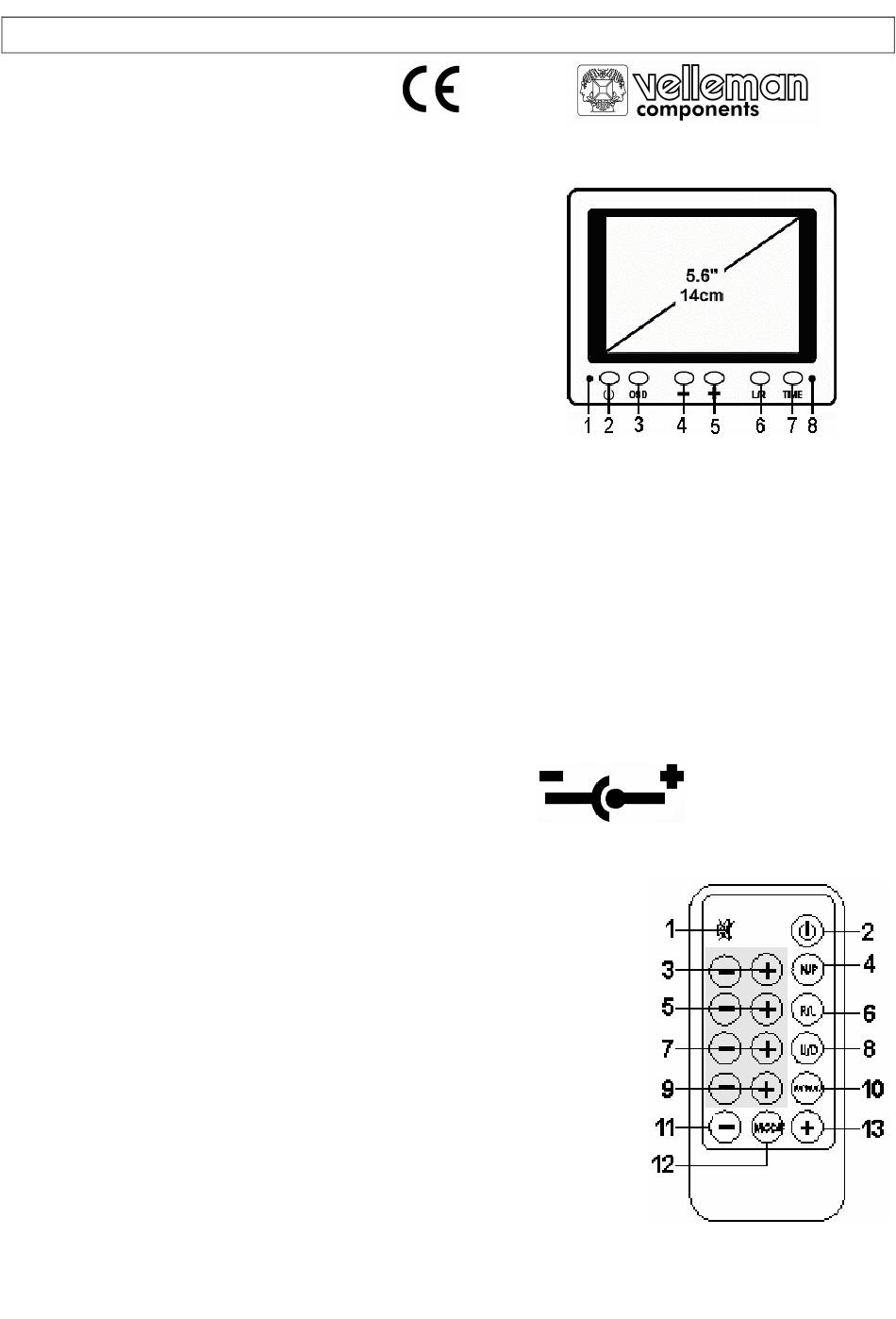

2. Description of the Front Panel
1. Headphone
: 3.5mm headphone connection
2. POWER button : to activate/deactivate the device
3. OSD button
: to select the various adjustments
4. "-" button
: to reduce the entered values
5. "+" button
: to increase the entered values
6. L/R button
: to reverse the image (left/right)
7. TIME button
: to set the timer (30/60/90/120min./off)
8. sensor
: remote control sensor (right of TIME button)
Remark: when the image is mirrored through the L/R adjustment, the displayed adjustments are also mirrored.
3. Operation
a) Make sure the video and audio input connections are properly executed (see also "4. Wiring").
b) Press OSD to display the adjustments in this order : Brightness → Contrast → Colour → Tint (no function)
Volume ... Enter the values with + and -.
c) The POWER button (de)activates the LCD monitor. It is not necessary to disconnect the 12VDC power adapter.
d) The L/R adjustment allows you to reverse the image horizontally (left/right) e.g. for a rear view camera on a car.
e) Use the TIMER adjustment to determine the time that will elapse before the device is deactivated. Set a
deactivation delay of 0, 30, 60, 90 or 120 minutes.
4. Wiring
Connect the supplied cable with the monitor's mini-DIN plug.
Connections : yellow RCA = video in
red RCA
Black
Note that the 12VDC adapter is optional.
5. Remote Control
1. Mute button (sound on/off)
2. ON/OFF button
3. Brightness Adjustment
5. Contrast adjustment
7. Colour adjustment
4,6,8 No function
9. Volume up/down
10. Left/Right button (reverse image horizontal)
11. Adjustment - in menu
12. Mode button (bright→contrast→colour→tint (no function)→Volume→reset)
13. Adjustment + in menu
MONCOLHA5PN2
MONCOLHA5PN2 - 5.6" TFT LCD MONITOR
= audio in
= Power 12VDC (±10%) (use a DC 12V/1000mAh power supply)
Fig. 1
Fig. 2
- 1 -
