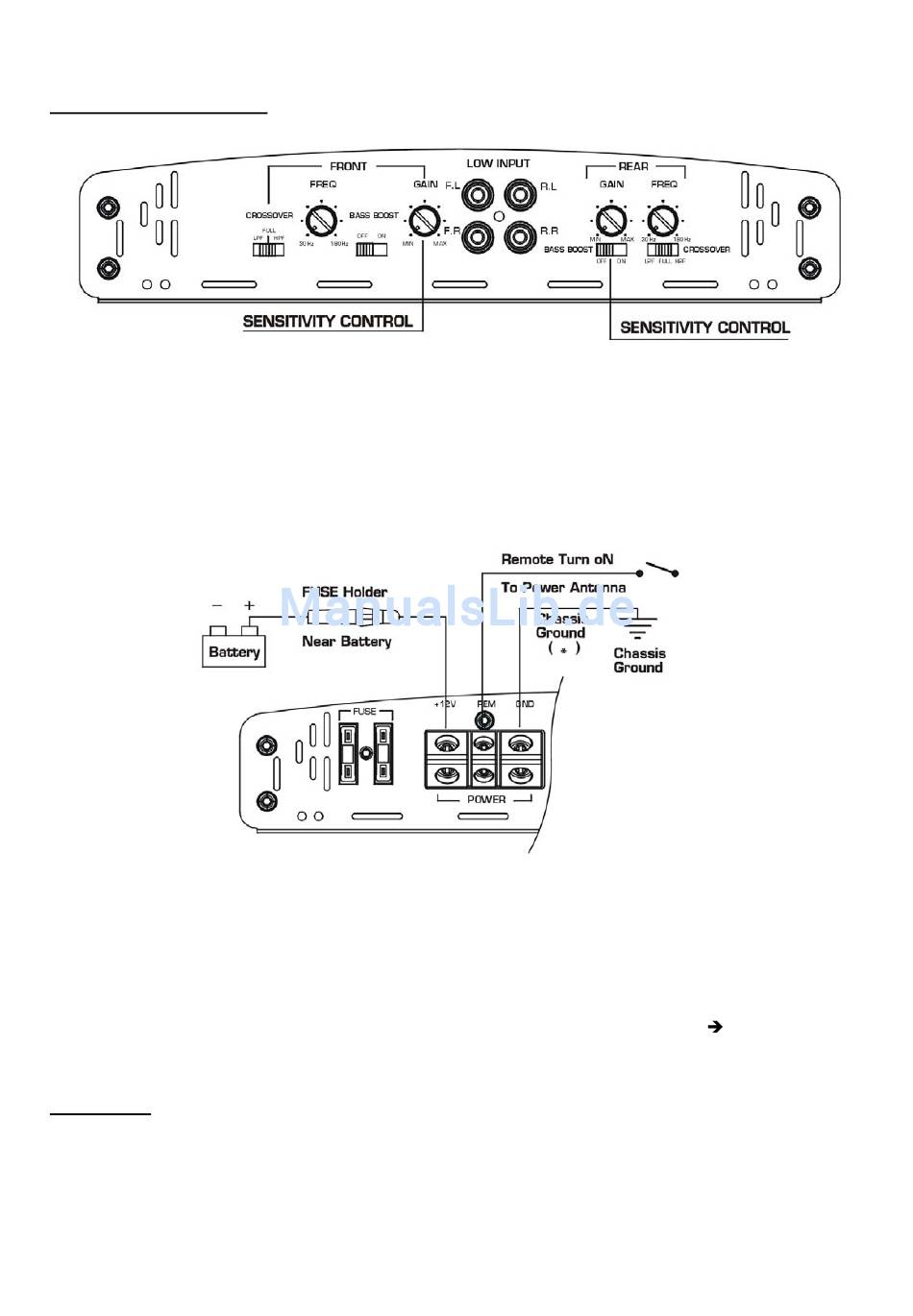

Actuators and Connectors:
1. CROSSOVER (F/R): Toggle for activating the high-pass (HPF)-, the band-pass (FULL)- or the low-pass
filter (LPF).
2. FREQ (F/R): Rotary switch for adjusting the threshold frequency of the chosen filter.
3. BASS BOOST ON/OFF (F/R): Switch for increasing the sound pressure level about 18 dB.
4. GAIN (F/R): Rotary switch for adjusting of the input sensitivity.
5. LOW INPUT F.L./F.R.: Cinch connectors for the signal input from the car radio.
6. LOW INPUT R.L./R.R.: Cinch connectors for the signal input from the car radio.
1. BATTERY: Car battery (12 V).
2. FUSEHOLDER: Covered the micro-fuse between the (+12V)-terminal of the amplifier and the positive
pole of the car battery.
3. FUSE: Bladefuses (2x 20 A).
4. POWER +12V: Connector for the cable to the positive pole of the car battery.
5. POWER REM: Connector for the cable from the car radio (On-/Off-switch).
6. POWER GND: Grounding. The cable must be connected to the chassis of the car.
7. PROTECTION/POWER: LED as operation display or shows in case of a short circuit
(FUSE).
Installation:
•
Connect the speakers to the output terminal SPEAKER OUT.
•
Connect the car radio to the terminal POWER REM.
•
Connect the terminal POWER GND to the car chassis.
•
Connect the car battery to the terminal POWER +12V.
•
It is recommended to install the power supply cables and the audio cables on different sides of the car.
E.T.T. Electronic Toys Trading GmbH Kreuzstraße 65/66 38118 Braunschweig
Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung
751-016
Exchange the fuse
