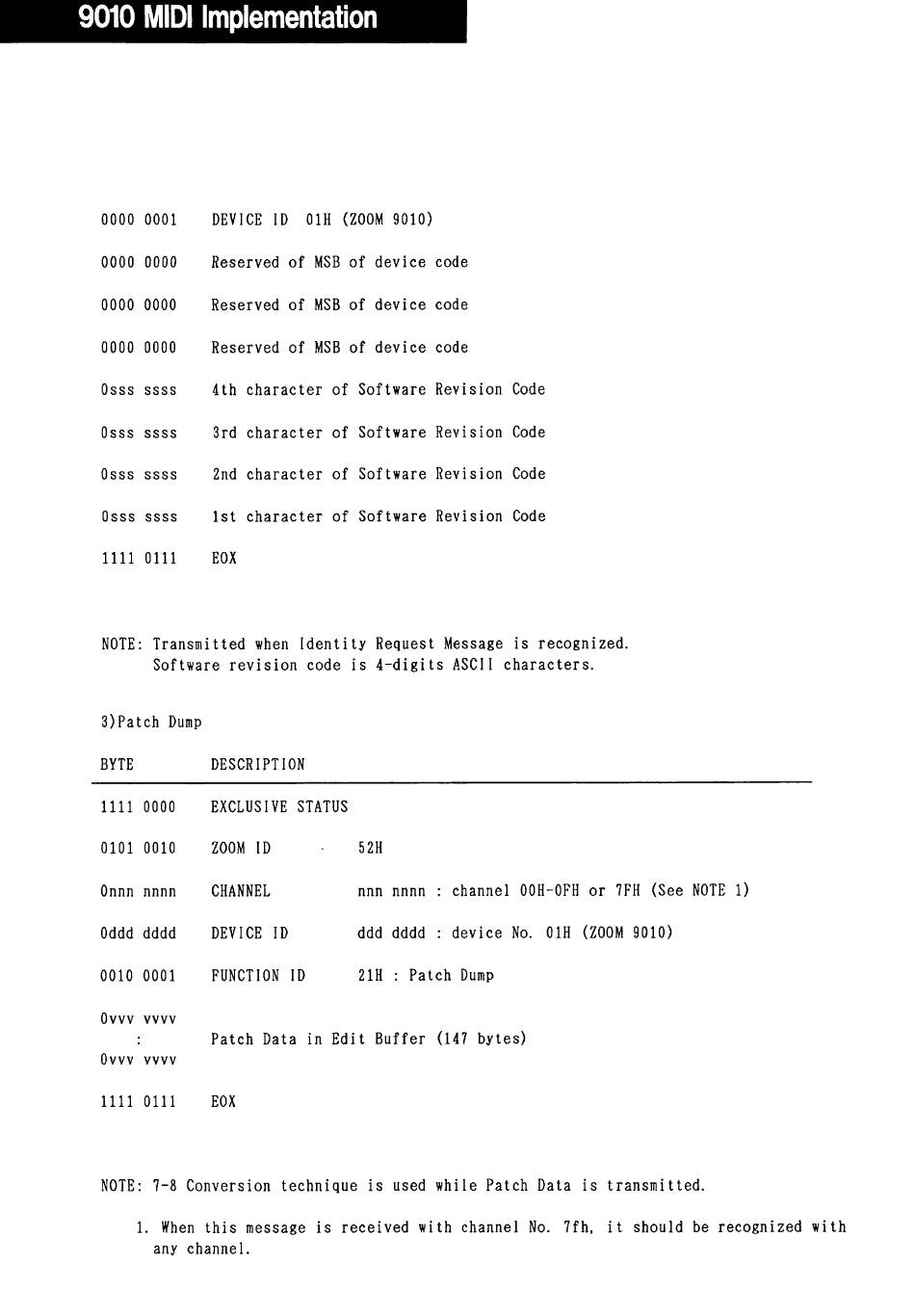

0000 0001
0000 0000
0000 0000
0000 0000
osss ssss
osss ssss
osss ssss
osss ssss
1111 0111
DEVICE ID 01H (ZOOM 9010)
Reserved of MSB of device code
Reserved of MSB of device code
Reserved of
MSB
of device code
4th character of Software Revision Code
3rd character of Software Revision Code
2nd character of Software Revision Code
Ist character of Software Revision Code
EOX
NOTE: Transmitted when Identity Request Message is recognized.
Software revision code is 4-digits A S C H characters.
3)Patch Dump
BYTE DESCRIPTION
1111 0000 EXCLUSIVE STATUS
0101 0010 ZOOM I D 52H
Onnn nnnn CHANNEL nnn nnnn : channel OOH-OFH or 7FH (See NOTE 1)
Oddd dddd DEVICE ID ddd dddd
:
device No. 01H (ZOOM 9010)
0010 0001 FUNCTION ID 21H : Patch Dump
ovvv vvvv
Patch Data in Edit Buffer (147 bytes)
ovvv vvvv
1111 0111 EOX
NOTE: 7-8 Conversion technique is used while Patch Data is transmitted.
1. When this message is received with channel No. 7fh, it should be recognized with
any channel.
