Replacing Battery; Eu Declaration Of Conformity - V2 SPA PROTEO1 Handbuch

COURTESY LIGHT COMMAND
(BUTTON LIGHT)
This controls control unit light outputs (only on those models
with dedicated light outputs).
WARNING: the light output mode of operation depends on
the control unit settings.
Depending on the PROTEO model used, proceed as follows:
PROTEO1
Press the LIGHT key briefly: LED1 flashes for several seconds,
indicating that transmission of the command has been successful.
PROTEO4
1. Press the SELC key several times until the desired channel is
selected: the corresponding LEDs remain lit for several
seconds.
2. Press the SUN/LIGHT key briefly: the LED flashes for several
seconds, indicating that transmission of the light command to
the control unit has been successful.
GROUPS
(BUTTON SELG)
By this button it is possible to program and select the GROUPS of
channels to be used for the radio transmission. It is possible to
store up to 8 groups of channels; stored the eighth, a new group
will replace the first one.
1. Press the button SELC until selected the first channel to link to
the group
2. Press the button SELG: the led linked to the selected channel
starts blinking
3. Press the button SELC until selected the second channel to link
4. Press the button SELG: the led linked to the selected channel
starts blinking
5. Repeat the procedure for all the desired channels: the leds
linked are on till the end of the procedure
6. Once selected all the channels wait for the leds to switch off:
the group has been stored and it is possible to display it by
pressing the button SELG
When the groups are more than one, to select the desired group
proceed as follows:
1. Press the button SELG several times until selected the desired
group: the leds linked to the channels are on for some
minutes
2. Press one of the buttons UP, DOWN or STOP to transmit the
control
To delete all the groups stored proceed as follows:
1. Press and release the button SELG: the last group used is
displayed by the leds.
2. Press and hold the SELC key before the LEDs are turned off
3. Then, without releasing the SELC key, press and hold the SELG
key also.
4. Keep pressed both the buttons for some seconds until the leds
switch off: the groups have been deleted

REPLACING BATTERY

Replace the battery when the radio range power decrease or the
led light intensity becomes too feeble. Open the door of the
battery compartment and replace the battery respecting the
polarity shown by picture 2.
WARNING: Batteries contain pollutant elements, must be
disposed of in accordance with environmental regulations (V2
advise to use a specific disposal system).Transmitter contains
pollutant elements too; follow the same procedure to dispose.
Should the batteries lose electrolytic substances, please replace
them immediately avoiding with care any contact with such
substances.

EU DECLARATION OF CONFORMITY

V2 SPA hereby declares that the products: PROTEO
comply with the following directives:
2014/53/EU, ROHS2 2011/65/CE
Racconigi, 01/06/2016

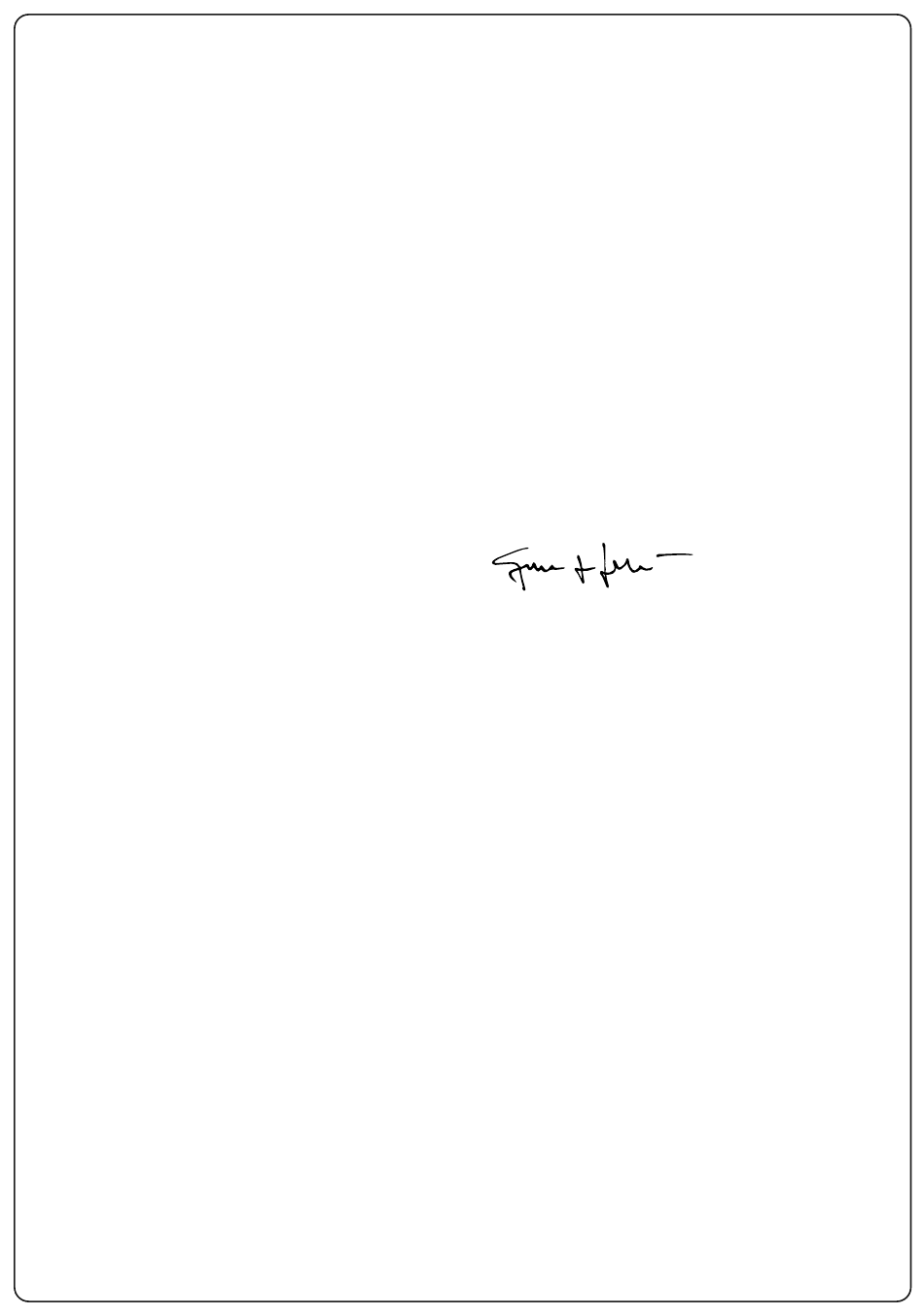

V2 SPA legal representative
Giuseppe Pezzetto
