Your guide to Ambiente
EN

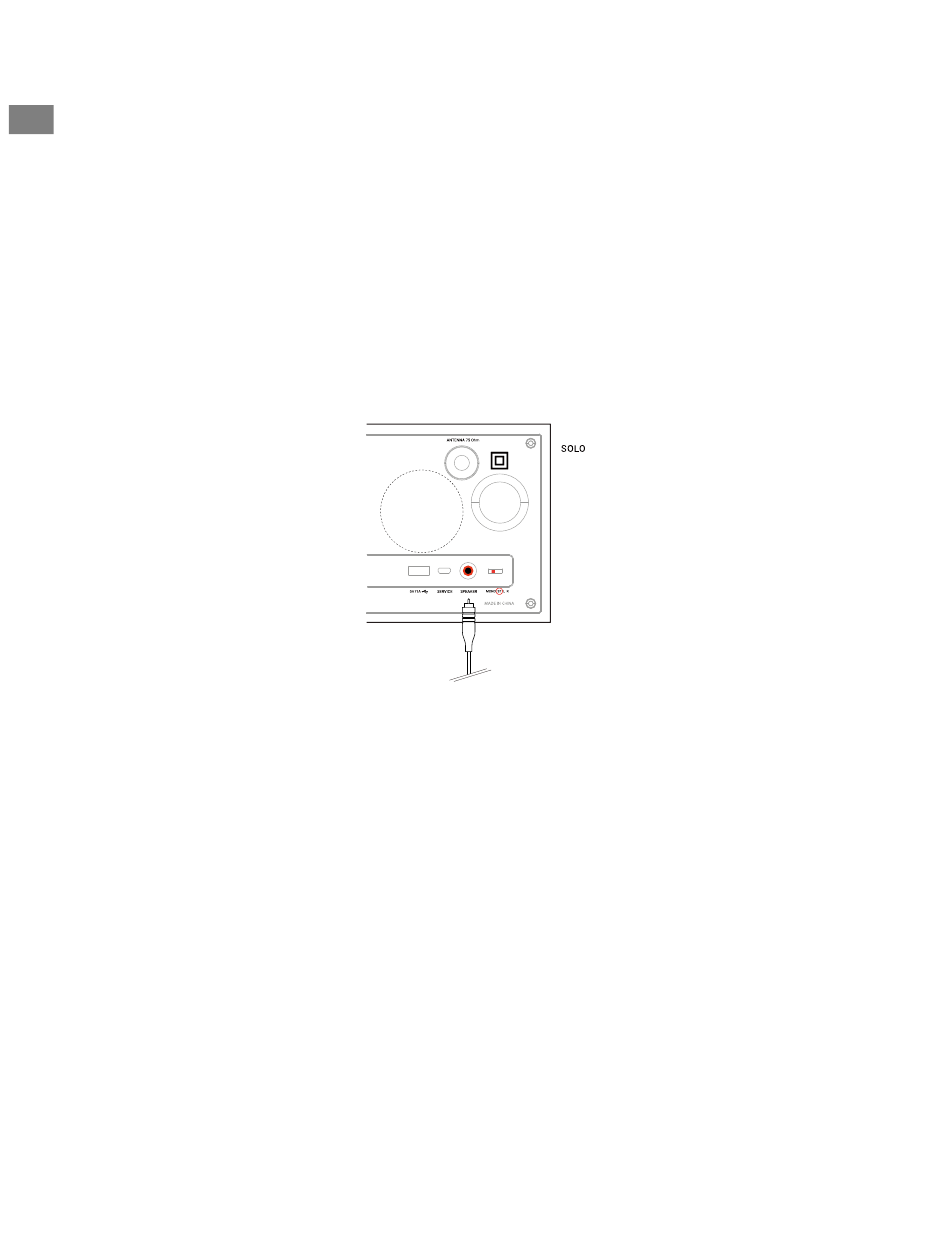

1. Fully insert the red male RCA connector on the Ambiente Speaker's audio cable into the female RCA output
on the back of the Solo.
2. Place the switch on the back of the Solo in the "ST" (stereo) position. Be careful not to place the switch in the
"L" or "R" position. We recommend leaving the Balance in the center position, but if necessary, you can
adjust it in Solo's System Settings Menu under "Equalizer".
3. The further away you place the Ambiente Speaker from the Solo, the wider the stereo soundstage will be. For
accurate reproduction, when facing the units, the Solo should be on the left side and the Ambiente Speaker
on the right since all right channel audio will be sent to the Ambiente Speaker.
Important notes:
Do not use the Ambiente Speaker for any purpose other than the dedicated right channel for Solo.
Do not obstruct the Ambiente Speaker's rear bass port. Placing the Ambiente Speaker in a bookshelf or corner will
exaggerate the bass.
Wood is a product of nature, and as such, has characteristics that can vary greatly. Although every effort has been
made to reasonably match your Ambinete Speaker to your Solo, differences should be expected. It is precisely these
naturally occurring variations that provide the uniqueness of each wood cabinet.
Paint can also vary from batch to batch. Some shade variation may be noticeable with piano high gloss finishes.
Specifications:
Model: Como Audio Ambiente Speaker
Transducer configuration: ¾" dome tweeter and 3" long-throw, 4-layer voice coil woofer with rubber surround
Dimensions: 125mm H (132mm H with feet) x 240mm W x 120mm D (130 mm D including relief strain)
Weight: 3.31 lbs/1.5kg
AQSG0916
