Introduction
Thank you for choosing a COUSTIC COMPRESSOR Amplifier to power your car audio system. Each COUSTIC COM-
PRESSOR amplifier is CEA2006 certified which means you have a 100% guarantee that your amplifier will deliver
every Watt it is rated at.

Specifications

Ratings:
• CEA2006 certified Power Output : 50 watts RMS x 4-channels at 4 ohm and ≤ 1% THD+N
• CEA2006 certified Power Output : 70 watts RMS x 4-channels at 2 ohm and ≤ 1% THD+N
• CEA2006 certified Power Output : 140 watts RMS x 2 bridged at 4 ohm and ≤ 1% THD+N
• Crossover : - High pass 12dB variable 40Hz-800Hz or 400Hz-8kHz
- Band pass 12dB/24dB variable 40Hz-8kHz
- Low pass 24dB variable 40Hz-800Hz or 400Hz-8kHz
• Signal-to-Noise Ratio (1 watt) : >75dB
• THD+Noise (Distortion) (1 watt) : ≤ 1%
• Frequency Response (-1dB) : 20Hz-20kHz
• Maximum Input Signal : 4V
• Maximum Sensitivity : 250mV
• Dimensions : 300mm x 220mm x 50mm
• High level input connection

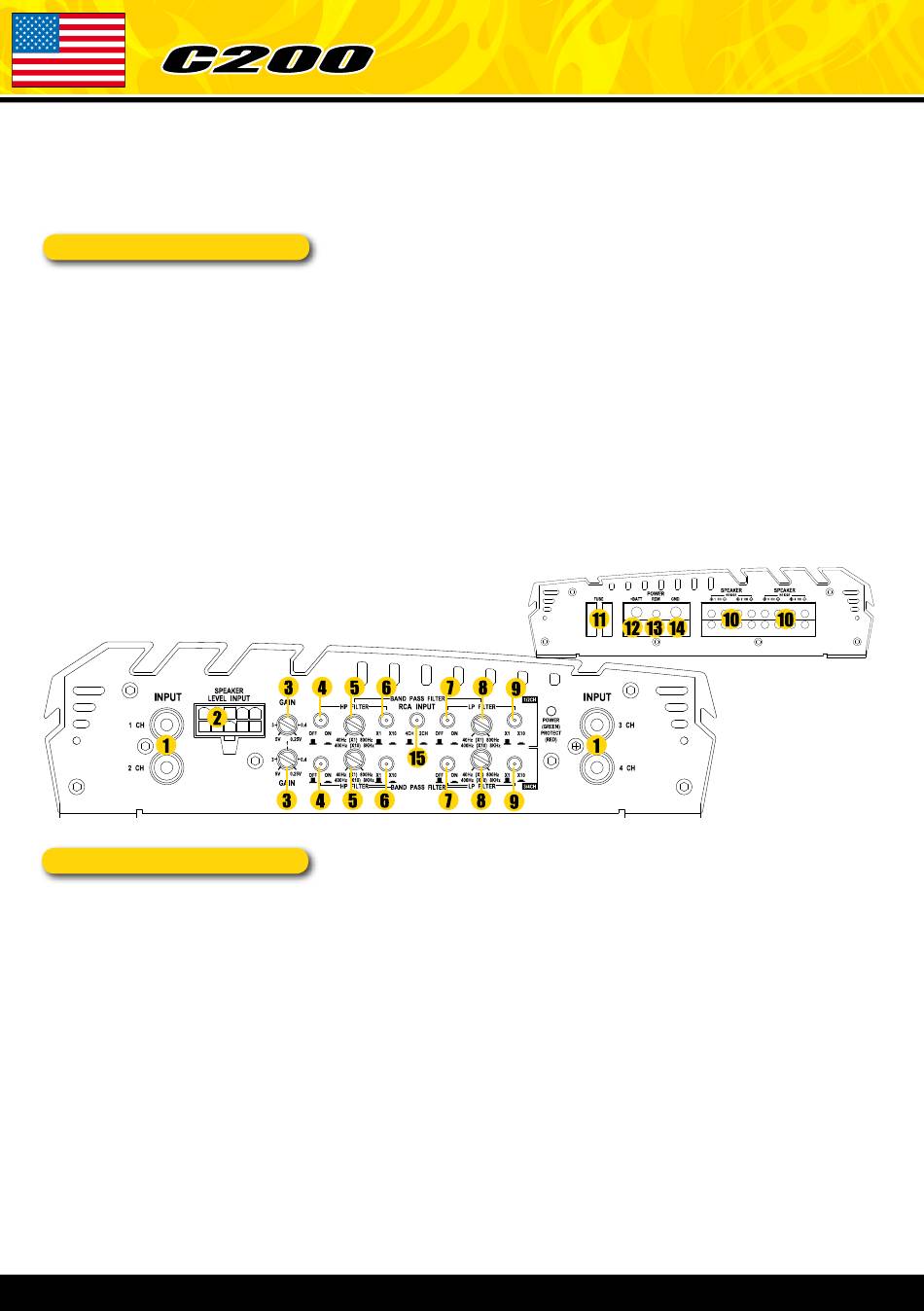

Input/output panel layout
1. RCA input jacks – These RCA input jacks are for use with source units that have RCA or Line level outputs. A
source unit with a minimum level of 200mV is required for proper operation.
The use of high quality twisted pair cables is recommended to decrease the possibility of radiated noise entering
the system.
2. Speaker level inputs – This input will allow the amplifier to operate from source units with speaker-level outputs.
Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier.
**Note: When speaker level inputs are used, a remote turn on wire must used to switch the amplifier on and
off.**
3. Gain control – This control is used to match the input sensitivity of the amplifier to the particular source unit
that you are using. The operating range varies from 250mV gain fully clockwise to 4V input gain fully counter
clockwise.
4. High pass x-over switch - This switch is used to switch on and off the active high pass x-over of the amplifier.
When this switch is pressed the x-over is switched on, when this switch is depressed the x-over is switched off.
