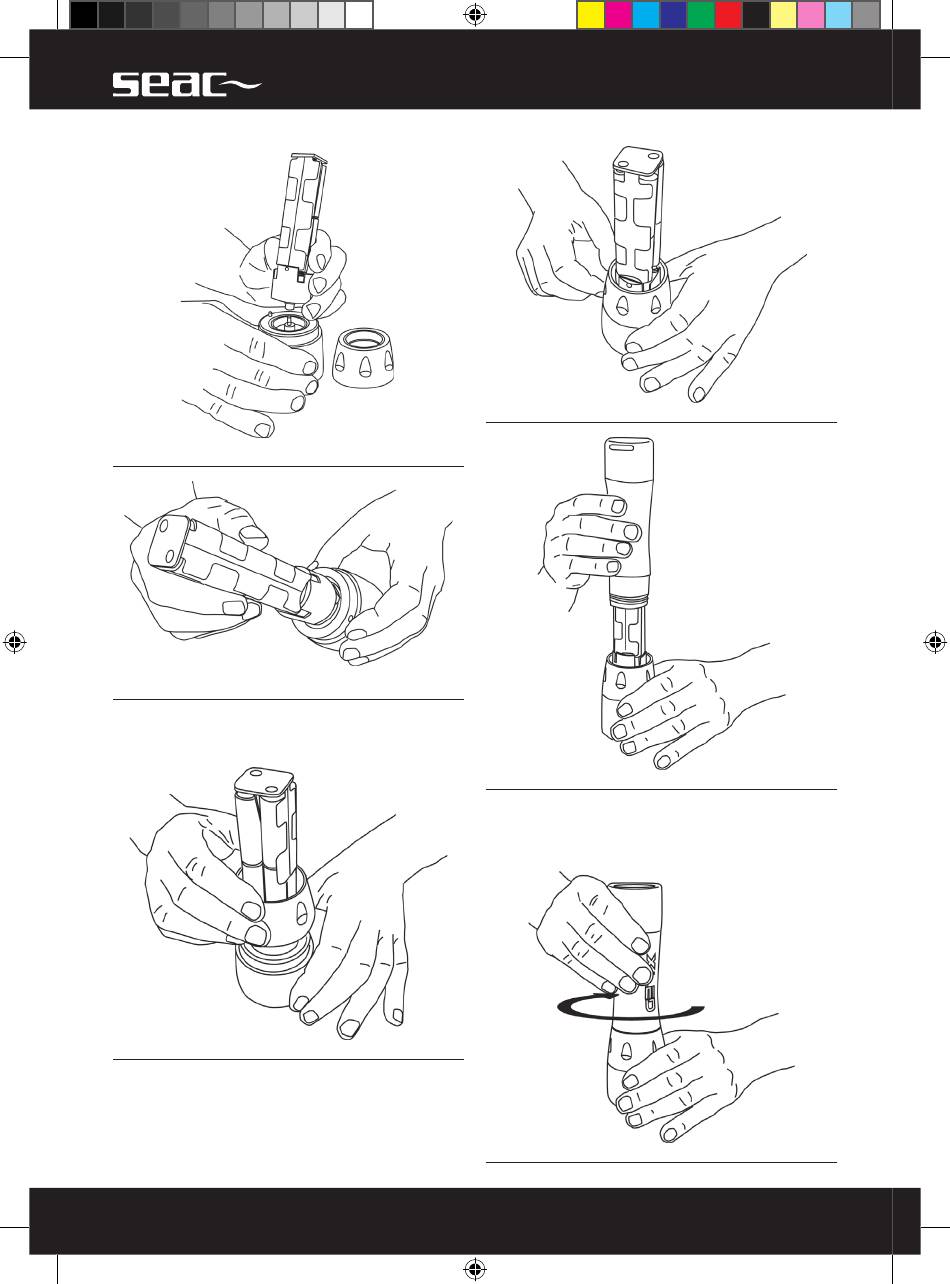

Drawing 8 - Correct insertion of the battery casing
Drawing 9 - Insertion of the battery casing in the reflector-glass
group (torch head)
Replace the switch-on knob (drawing 10) and turn it to check
correct functioning (drawing 11).
Drawing 10 - Correct insertion of the switch-on knob
english
10
4362-SEAC-X5-LED.indd 10
Drawing 11 - Checking the functioning of the switch-on knob
Drawing 12 - Insertion of the battery casing into the torch casing.
Then carefully reposition the torch casing to be screwed
together (drawing 12). Carefully screw the casing into place
clockwise until firmly locked (drawing 13).
Drawing 13 - Closure of the torch by screwing clockwise
