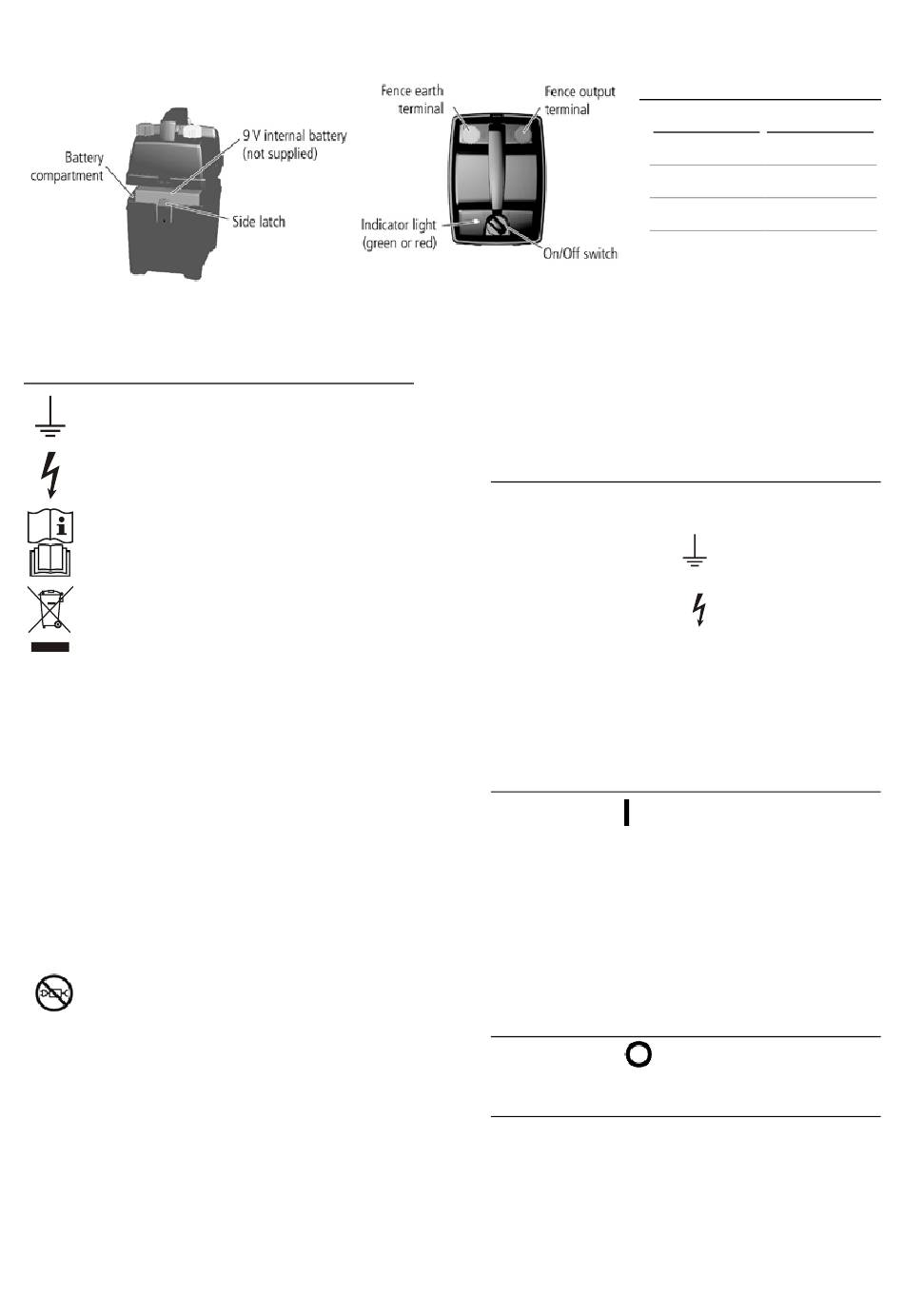

Parts of the energizer
Key to symbols on the energizer
Fence earth terminal. Connect the fence
earth terminal to the earth system.
Fence output terminal. Connect the fence
output terminal to the fence.
Read full instructions before use.
This symbol on the product or its packaging
indicates that this product must not be
disposed of with other waste. Instead, it is
your responsibility to dispose of your waste
equipment by handing it over to a designated
collection point for the recycling of waste
electrical and electronic equipment. The
separate collection and recycling of your
waste equipment at the time of disposal will
help conserve natural resources and ensure
that it is recycled in a manner that protects
human health and the environment. For more
information about where you can drop off
your waste equipment for recycling, please
contact your local city recycling office or the
dealer from whom you purchased the
product.
Do not connect to mains-operated equipment
including battery chargers.
Installation
Read all of the safety instructions in this manual and
any relevant government, regional and local safety
standards before installing the energizer.
Position the energizer in an upright position on firm
ground, away from flooding and out of reach of animals
and children.
If possible, position the energizer in a sheltered area to
protect it from the weather and improve visibility of the
2
Models covered by this
manual
0.17 J model
SV170
HB17
P9-17
102BV
All energizer models are supplied
with an earth rod and a fence
lead set.
indicators. Try to position the energizer as near as
possible to the centre of the electric fence. Ensure that
the energizer, battery, earth rods and all connections
are protected from interference by animals.
Connecting the energizer to the fence
1 Push the earth rod fully into firm ground.
2 Connect the green earth lead from the energizer's
fence earth terminal (
3 Connect the red fence lead from the energizer's
fence output terminal ( ) to the fence.
4 Make sure there is a good contact. If necessary,
carefully strip the polywire to expose steel strands
in order to provide a good connection.
Operation
Turning the energizer on
Turn the switch to .
The indicator light will illuminate green for
approximately 2 seconds indicating that the energizer is
operating and that the battery voltage level is OK.
The energizer then produces an output pulse every 1.5
seconds and the indicator light flashes green with each
pulse.
Turning the energizer off
Turn the switch to .

Indicator light

The indicator light shows the energizer and battery
status:
0.33 J model
SV330
HB33
P9-33
104BV
) to the earth rod.
