Inhaltszusammenfassung für Intellinet 524681

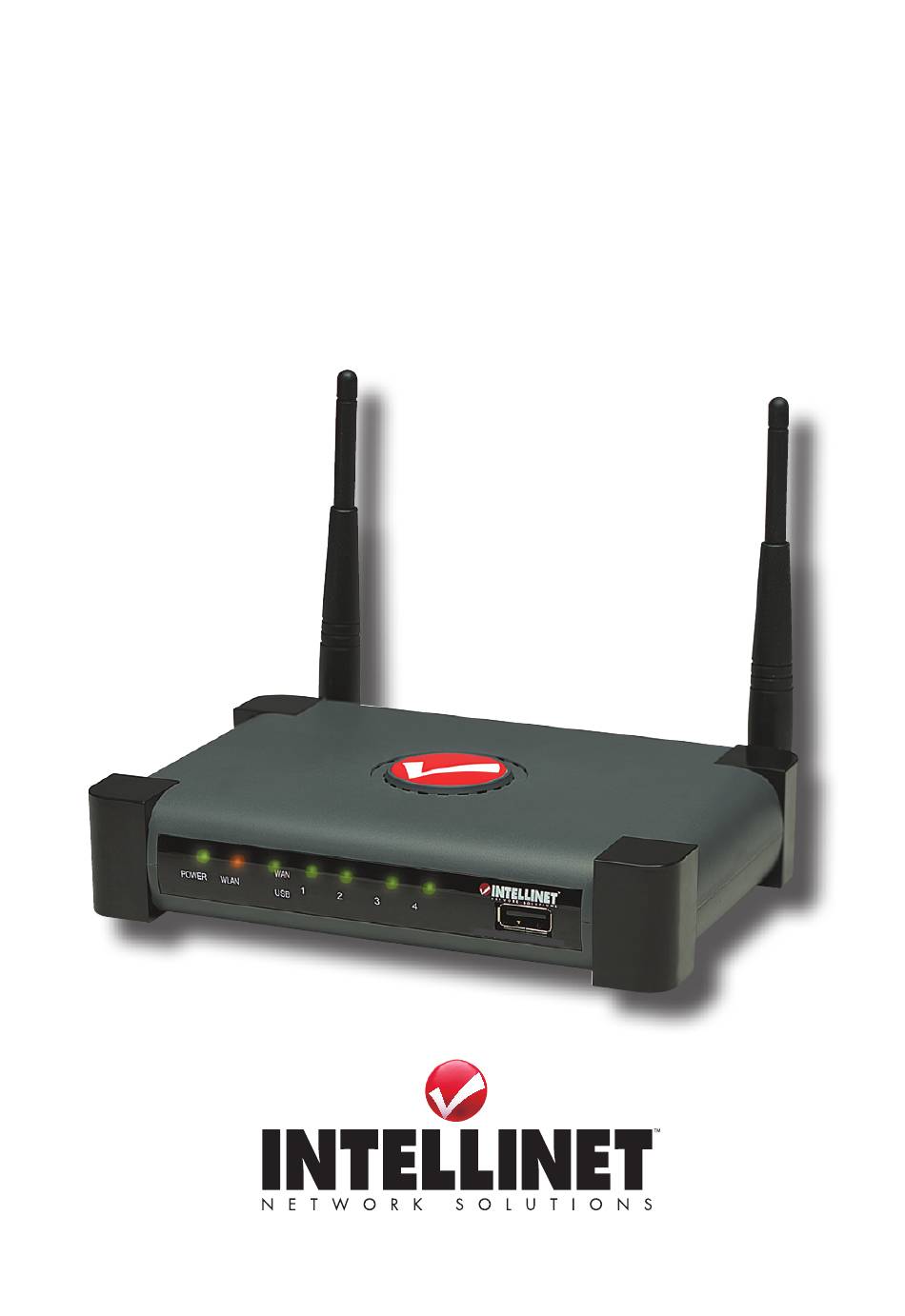

- Seite 1 Wireless 300N 3G router quick iNstall Guide Model 524681 INT-524681-QIG-0809-03...
- Seite 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Wireless 300N 3G Router, Model 524681. This quick install guide presents the basic steps required for setting up and operating this device. For detailed instructions and specifications, refer to the user manual on the CD enclosed with this product at www.intellinet-network.com.
- Seite 3 coNNectioNs 1. With the router properly positioned on a flat, stable surface, connect your 3G / 3.5G USB modem by inserting it in the USB port on the right side of the router’s front panel (below). Wireless 300N 3G Router 2.
-
Seite 4: Network Setup
NetWork setup The following procedure is for configuring the Wireless 300N 3G Router using your Web browser. NOTE: For the initial configuration, a computer with a wired Ethernet connection is required. 1. Set your computer to obtain an IP address from the wireless router: Go to Start (in the lower-left corner of your desktop), then go to Control Panel. - Seite 5 2. When the Local Area Connection Properties screen displays, select “Internet Protocol (TCP/IP),” then click “Properties.”...
- Seite 6 3. When the Internet Protocol (TCP/IP) screen displays, select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” then click “OK.” The IP address setup is now complete.
- Seite 7 4. Go to Start again, then Run. Enter “cmd,” then click “OK.” 5. Enter “ipconfig,” then press <Enter>. Check the “IP Address” and “Default Gateway” settings. (In the example below, the IP address of router — the default gateway — is 192.168.2.1.) C:\Documents and Settings\home user>ipconfig Windows IP Configuration Ethernet adapter Local Area Connection:...
- Seite 8 6. Activate your Web browser and enter the IP address of the router in the browser’s address bar. When the subsequent Login window displays (right), fill in the “User name” and “Password” fields (username default is “admin”; password default is “1234”), then click “OK”...
- Seite 9 8. When the subsequent Time Zone screen displays, select your local time zone from the drop-down menu and click “Next.” 9. When the subsequent Broadband Type screen displays, select “3/3.5G” for the Internet connection, then click “Next.” 10. When the next screen displays the settings options (below), enter the Internet connection values if/as required by your 3G / 3.5G service provider.
- Seite 10 11. With the Basic Settings screen displayed, make the selections/entries you prefer, then click “Next.” 12. To protect your wireless network, it’s recommended that the security be enabled. Select a security type from the drop-down menu, enter the encryption key, then click “OK.”...
- Seite 11 13. When the prompt appears to restart the system, click “Apply.” A status message will display, indicating that the router will be ready for operation in approximately 30 seconds. Once the router is ready for use, connect to any Internet site or open any Internet application to check that they’re working properly.
-
Seite 12: Disposal Of Electric And Electronic Equipment
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. -
Seite 13: Warranty Information
POLSkI: Per informazioni sulla garanzia, accedere a www.intellinet-network.com/warranty. ItALIANO: EN MéXIcO: Poliza de Garantia INTELLINET — Datos del importador y responsable ante el consumidor • IC Intracom México, S.A. de C.V. Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan •... - Seite 14 FEDERAL COMMUNICATIONS COMMISSION REGULATORY STATEMENT Fcc class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Seite 15 ™ INTELLINET NETWORK SOLUTIONS offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com. All products mentioned are trademarks or registered trademarks of their respective owners. INTELLINET NETWORK SOLUTIONS ™...
- Seite 16 Copyright © INTELLINET NETWORK SOLUTIONS...
