6404-901 B.0
Specifications
PRODUCT
BASE PART NUMBER
PRODUCTO
NÚMERO DE COMPONENTE BASE
PRODUIT
RÉFÉRENCE DE BASE
PRODUTO
NÚMERO DAS PEÇAS BÁSICAS
PRODUKT
HAUPTTEILENUMMER
PRODOTTO
NUMERO PARTE DI BASE
製品
基本部品番号
产品
基本部件编号
제품
기본부품 번호
ИЗДЕЛИЕ
БАЗОВЫЙ НОМЕР ИЗДЕЛИЯ
RMK40
6230 / 6238 *
RMPK40
6233 * / 6236
UL Reference Number Deciphering
x
Reader Colors:
K = Black,
G = Gray
1
x
Wiring:
N = Pigtail, T = Terminal
2

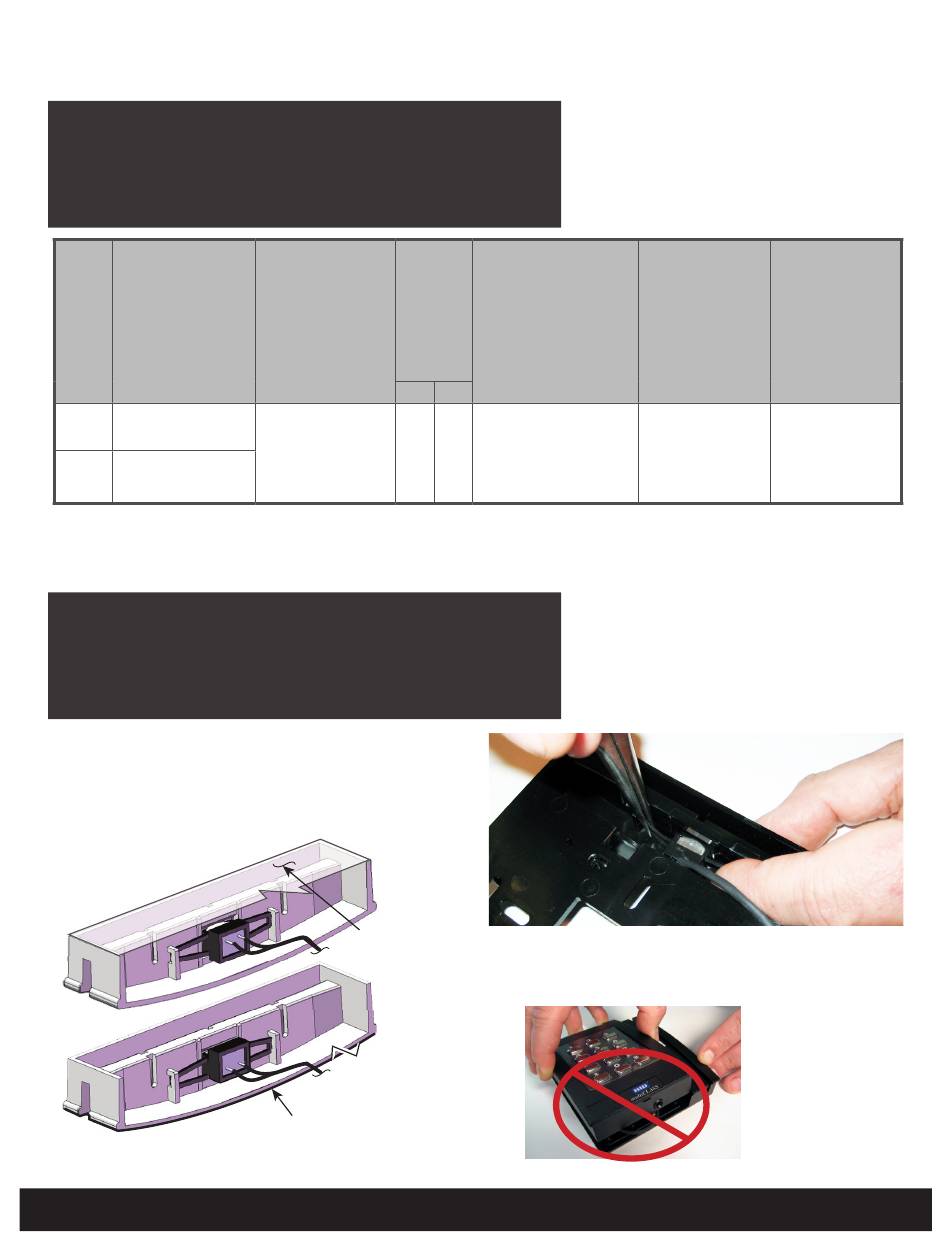

Head Track Adjustments
For a credential with a different track position, change the head track
position on the Magnetic Stripe reader.
1. Snap out the head/gimbal assembly.
2. Rotate the assembly 180 degrees.
3. Re-install the assembly into the reader case.
Track 2 (default)
Track 1
©2009-2010 HID Global Corporation. All rights reserved.
CURRENT
INPUT VOLTAGE (VDC)
CORRIENTE
TENSIÓN DE ENTRADA (VCC)
COURANT
TENSION D'ALIMENTATION (Vcc)
CORRENTE
VOLTAGEM DE ENTRADA (VCC)
STROMSTÄRKE
EINGANGSSPANNUNG (VDC)
CORRENTE
TENSIONE IN INGRESSO (V c.c.)
電流
入力電圧(VDC)
电流
输入电压 (VDC)
전류
입력 전압(VDC)
ТОК
НАПРЯЖЕНИЕ ПИТАНИЯ
(В ПОСТОЯННОГО ТОКА)
NSC
5-16 VDC
132 mA
155 mA
Reader
Back
Reader Face
e
specificaciones
s
pécifications
e
specificações
s
pezifiKationen
OPERATING TEMPERATURE
TEMPERATURA DE FUNCIONAMIENTO
TEMPÉRATURE DE FONCTIONNEMENT
TEMPERATURA OPERACIONAL
BETRIEBSTEMPERATUR
TEMPERATURA D'ESERCIZIO
稼動温度
操作温度
작동 온도
РАБОЧАЯ ТЕМПЕРАТУРА
PEAK
**
32° - 120° F
(0° - 49° C)
NSC = Normal Standby Condition
*
Not UL listed.
**
Temperature qualified by HID Global is -31 to 140°
CAUTION: Pinching mag-head wires during
installation results in degraded Magnetic Stripe
reader performance.
iCLASS
RMK40, RMPK40
s
pecifiche
仕様
规格
사양
Х
АрАКТЕрИсТИКИ
CABLE LENGTH
UL REF NUMBER
LONG. DE CABLE
NÚMERO DE REFERENCIA UL
LONGUEUR DE CÂBLE
RÉF. UL
COMPRIMENTO DO CABO
NÚMERO DE REFERÊNCIA UL
COMPRIMENTO DO CABO
UL-REFERENZNUMMER
LUNGHEZZA CAVO
NUMERO DI RIFERIMENTO UL
ケーブル長
UL参照番号
电缆长度
UL 参考编号
케이블 길이
UL 참조 번호
ДЛИНА КАБЕЛЯ
СПРАВ ОЧНЫЙ НОМЕР В UL
Wiegand = 500 ft - 22 AWG
(152.4 m)
RMPK40Cx
300 ft - 24 AWG
(91.44 m)
F (-35 to 60°
C). Temperature not evaluated by UL.
INSTALLATION GUIDE
x
N
1
2
3
