U SE R G UIDE

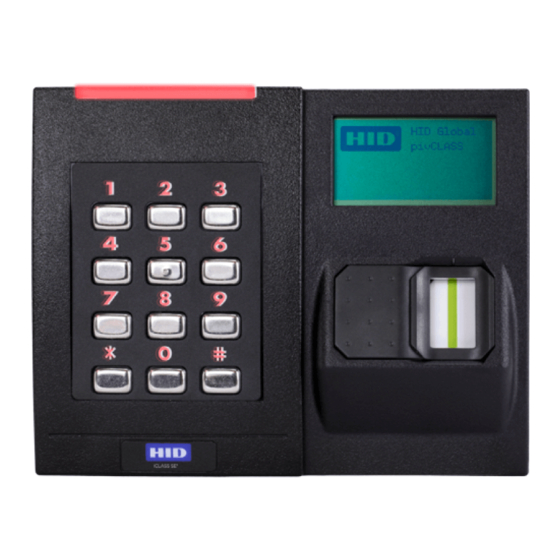

iCLASS SE® Biometric Reader
RKLB40
SRD MODEL: RKCLB40E
1. Introduction
The iCLASS SE® Biometric Reader is a multi-functional
reader and enroller that can be used in a variety of locations.
It is highly configurable and allows the user to access a wide
range of different operational parameters which are outlined
in this document.
The Reader has three Operational Modes. The Operational
Mode chosen is configured in the Initial Setup and will
reflect how the Reader will be used and where it will be
located. The Mode can be changed via the Administration
menu (see Section 4.2.3: Configuration Menu Functions).
ƒ Reader/Enroller Mode: Both Reader and Enroller Modes
are available.
ƒ Enroller Only Mode: Enrolls user and administration
cards. It does not process credentials to allow access
control. The Reader will typically be located in an office
with secure access.
ƒ Reader Only Mode: Processes credentials. The Reader
will typically be located at a building entrance or door.
Notes:
ƒ All enrollment actions are performed locally to the
Reader.
ƒ After Initial Setup, additional functionality for the chosen
Operational Mode can be accessed via the Administration
menu (see Section 2.1.4: Operational Mode).
ƒ The triangle on the display menu indicates the current
default value.
13.56 MHz Credential Compatibility
ƒ iCLASS® Seos® 8kB (iCLASS® Seos® 16kB - NOT
COMPATIBLE)
ƒ Standard iCLASS® 16-32k bit Access Control Application
(iCLASS SE and 2k bit Standard iCLASS - NOT
COMPATIBLE)
Biometric Authentication Compatibility
ƒ ANSI-378 template stored on iCLASS Seos credential
ƒ bioCLASS® template stored on standard iCLASS
credential (6180A enroller template - NOT COMPATIBLE)
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output are
fictitious. Specifications are subject to change without notice.
© 2017 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID Brick Logo, the Chain Design, and iCLASS SE are trademarks or registered trademarks of HID Global in
the U.S. and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
hi d g lo b a l.com
2. Initial Setup
When the Reader is first switched on, the Initial Setup menu
is displayed which will take you through the following stages:
1. Select Language, Template Type and Operational Mode
(all card types).
2. Choose Site Key (Seos® cards only).
3. Verify Admin (all card types).
Note: If Reader Initial Setup Configuration needs to be
modified in the future, two configuration cards are included
with the Reader to reset the Reader back to the Initial Setup
menu. To complete Initial Setup reset:
1. Power cycle the Reader.
2. Within the first 15 seconds of power on, present and
hold "SE BIO Initial Setup Reset Card 1" to the face of
the Reader keypad until the Reader stops beeping and
the LED is solid red or flashing blue/red.
3. Power cycle the Reader.
4. Present and hold "SE BIO Initial Setup Reset Card 2" to
the face of the Reader keypad until the Reader stops
beeping and the LED is solid red or flashing blue/red.
2.1 Initial Setup – Functional Selections
2.1.1 Select Language
Language
1. English
2. Francais
3. Español
4. < more >
1. Power on the Reader.
2. Select the language by pressing the corresponding
number on the keypad. Example: For English, select 1.
Note: To see additional languages select 4. < more >.
Available Languages
ƒ English
ƒ Français (French)
ƒ Español (Spanish)
ƒ Deutsch (German
ƒ Português
(Portuguese)
PLT-03342, Rev. A.3
ƒ Italiano (Italian)
ƒ Русский (Russian)
ƒ 中文 (Chinese)
ƒ 日本語 (Japanese)
ƒ 한국어 (Korean)
