5. Before connecting the recorder into the network

First it is necessary to set the recorder's IP address according to the existing network environ-
ment. Because a PC is used to make the recorder's settings, first modify the PC's IP address to
the recorder's one.

5-1. Setting the PC's IP address

First disconnect the PC from the existing network and modify the PC's IP address to the
recorder's one.
(1) To set an IP address, start with the properties of the local area network connection.
Getting the "LAN Connection" properties displayed

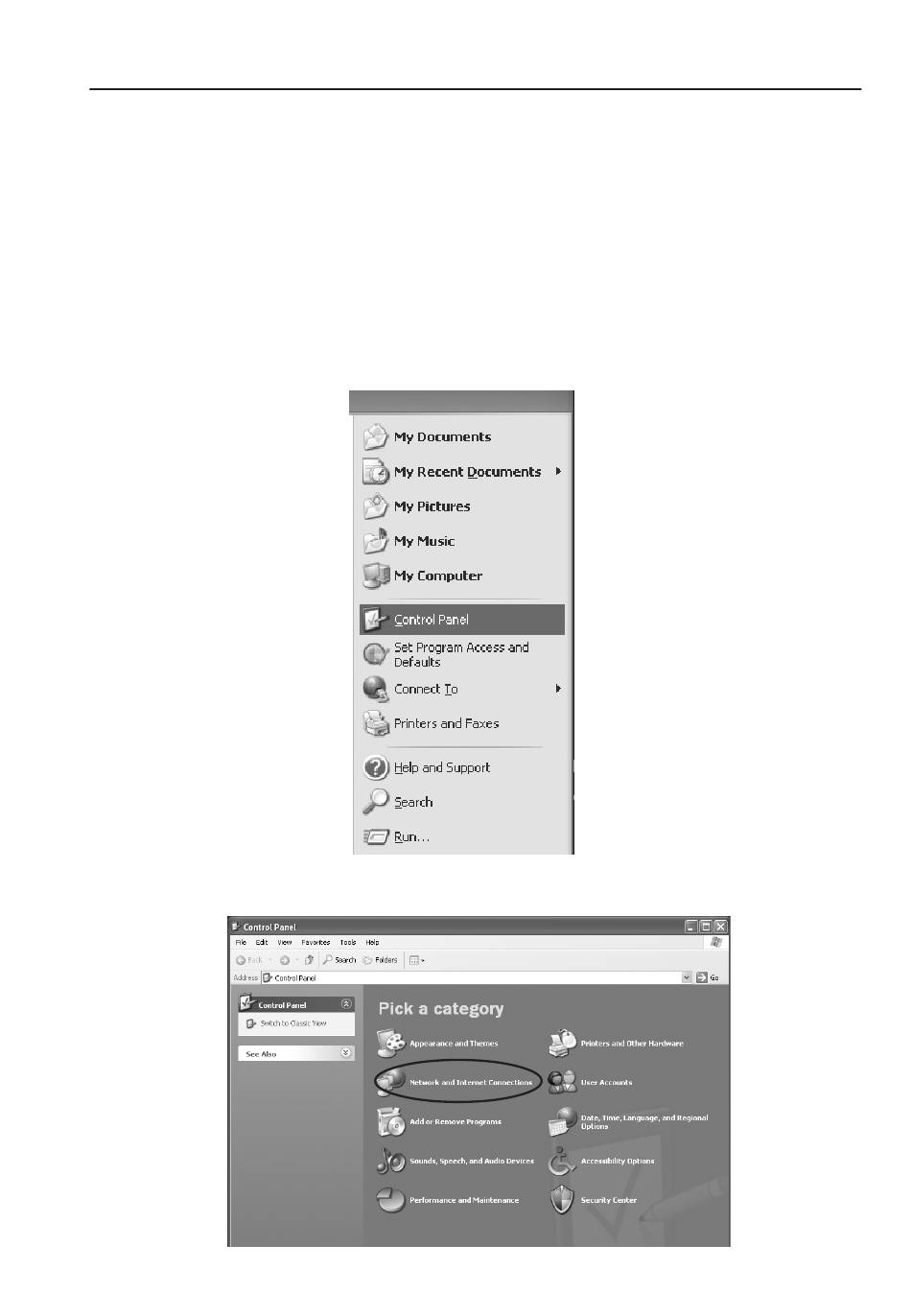

Click on the start button first and then on the control panel.
(2) Click on "Network and Internet Connections".
E-5
