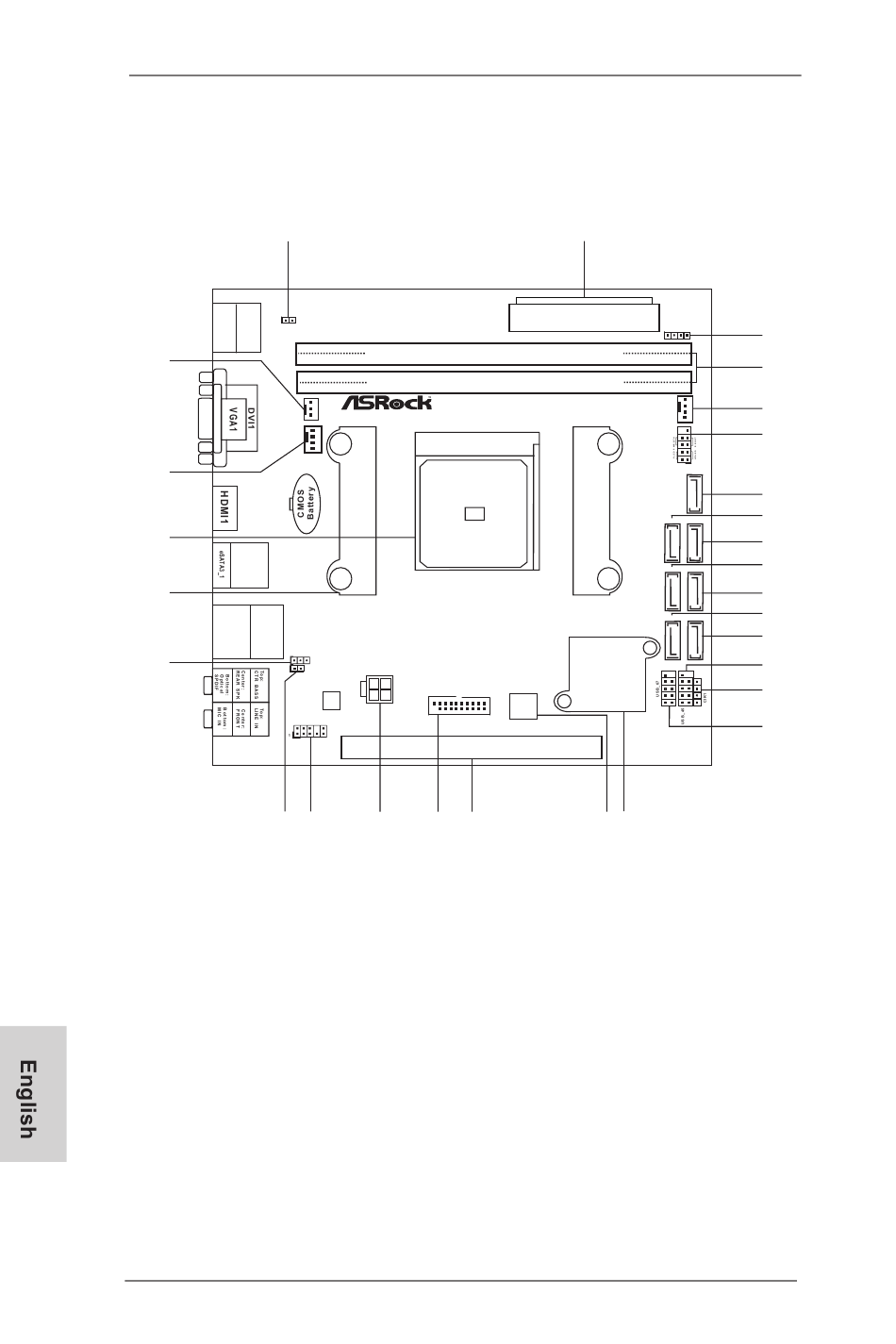

Motherboard Layout
USB 2.0
Ps2
T: USB0
Keyboard
B: USB1
28
27
26
USB 2.0
T: USB2
B: USB3
25
USB 3.0
T: USB2
B: USB3
24
1 Chassis Intrusion Header (CI1)
2 ATX Power Connector (ATXPWR1)
3 Chassis Speaker Header (SPEAKER1)
4 2 x 240-pin DDR3 DIMM Slots
(Dual Channel: DDR3_A1, DDR3_B1)
5 Chassis Fan Connector (CHA_FAN1)
6 System Panel Header (PANEL1)
7 SATA3 Connector (SATA3_7)
8 SATA3 Connector (SATA3_6)
9 SATA3 Connector (SATA3_5)
10 SATA3 Connector (SATA3_4)
11 SATA3 Connector (SATA3_3)
12 SATA3 Connector (SATA3_2)
13 SATA3 Connector (SATA3_1)
14 USB 2.0 Header (USB_45)
2
1
1
CI1
DDR3_B1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
CPU_FAN2
FM2A85X-ITX
CPU_FAN1
Top:
RJ-45
1 CLRCMOS1
1 HDMI_SPDIF1
ATX12V1
AUDIO
CODEC
HD_AUDIO1
23 22 21
ASRock FM2A85X-ITX Motherboard
2
ATXPWR1
Front USB 3.0
X
Fast RAM
RoHS
SOCKET FM2
AMD
A85X
(Hudson-D4)
Chipset
USB3_0_1
64Mb
BIOS
PCIE1
20 19 18
15 Consumer Infrared Module Header (CIR1)
16 USB 2.0 Header (USB_67)
17 Southbridge Controller
18 SPI Flash Memory (64Mb)
19 PCI Express 2.0 x16 Slot (PCIE1)
20 USB 3.0 Header (USB3_0_1)
21 ATX 12V Power Connector (ATX12V1)
22 Front Panel Audio Header (HD_AUDIO1)
23 HDMI_SPDIF Header (HDMI_SPDIF1)
24 Clear CMOS Jumper (CLRCMOS1)
25 CPU Heatsink Retention Module
26 CPU Socket
27 CPU Fan Connector (CPU_FAN1)
28 CPU Fan Connector (CPU_FAN2)
SPEAKER1
3
1
4
5
CHA_FAN1
PANEL 1 6
1
SATA3_7
7
8
SATA3_6 SATA3_5
9
10
SATA3_4 SATA3_3
11
12
SATA3_2 SATA3_1
13
14
15
1 1 1
16
17
