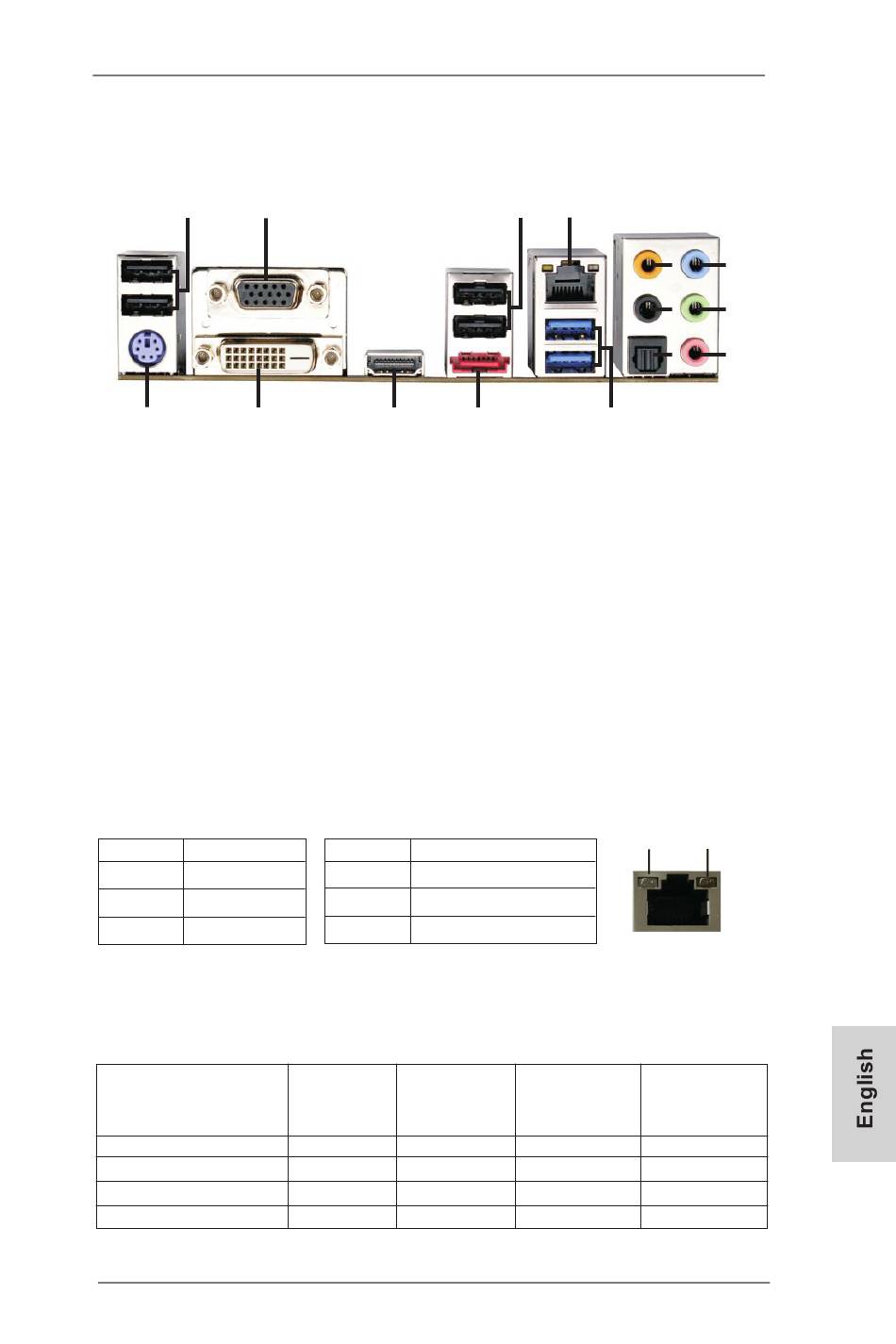

I/O Panel
1
2
15 14
* 1 USB 2.0 Ports (USB01)
2 D-Sub Port (VGA1)
* 3 USB 2.0 Ports (USB23)
** 4 LAN RJ-45 Port
5 Central / Bass (Orange)
6 Rear Speaker (Black)
7 Optical SPDIF Out Port
8 Line In (Light Blue)
* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB01 or
USB23) instead of USB 3.0 ports.
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
***
If you use 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack".
See the table below for connection details in accordance with the type of speaker you use.
Audio Output Channels Front Speaker Rear Speaker
2
4
6
8
13
SPEED LED
Status Description
Off 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
TABLE for Audio Output Connection
(No. 9) (No. 6)
V
V
V
V
ASRock FM2A85X-ITX Motherboard
3
4
11
12
*** 9 Front Speaker (Lime)
10 Microphone (Pink)
11 USB 3.0 Ports (USB3_23)
**** 12 eSATA3 Connector (eSATA3_1)
13 HDMI Port (HDMI1)
14 DVI-D Port (DVI1)
15 PS/2 Keyboard Port (Purple)
Central / Bass
(No. 5)
-- --
V --
V V
V V
8
5
6 9
7 10
ACT/LINK SPEED
LED LED
LAN Port
Line In or
Side Speaker
(No. 8)
--
--
--
V
3
