Ground Zero COMPETITION series Anschluss- Und Bedienungsanleitung Seite 9

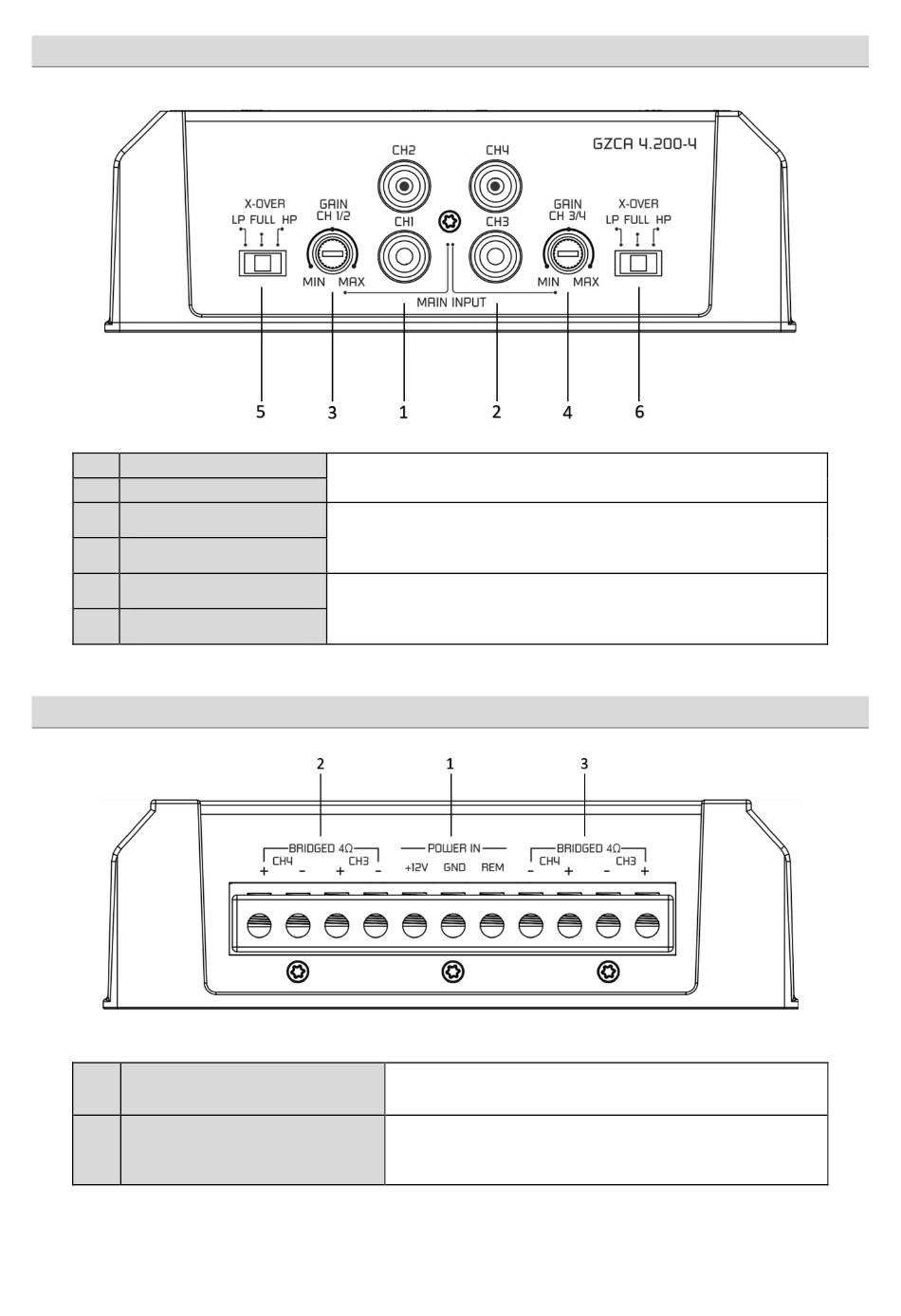

Controls and features – GZCA 4.200-4
1 Signal input channel 1 & 2
2 Signal input channel 3 & 4
Input sensitivity control
3
channel 1 & 2
Input sensitivity control
4
channel 3 & 4
Crossover selection switch
5
channel 1 & 2
Crossover selection switch
6
channel 3 & 4
* to avoid any kind of malfunction, it is strongly recommended to use high quality RCA wires!
1 Power terminal
2/3 Loudspeaker terminals
To connect RCA wires* from the audio source / head unit
To adjust the input sensitivity
To select the function of the integrated crossover
LP – low pass 80 Hz / Full – full range operation / HP – high pass 80 Hz
Connections – GZCA 4.200-4
+12V
REM
GND
To connect the loudspeaker wires
(pay attention to the minimum impedance mentioned)
Stereo - Loudspeaker impedance not less than 2 ohms
Bridged - Loudspeaker impedance not less than 4 ohms
3
To be connected to the positive terminal of the battery
To be connected to the remote output of the head unit
To be connected to the ground of the vehicle
