5. Align the beam with the line on the work piece (Fig. P).
6. Start the motor by depressing the lock-off button (5) and
squeezing the trigger switch (4).
7. Always let the blade reach full speed (approximately
2 seconds) before you begin to cut into the work piece.
8. Slowly push the saw forward using both hands, keeping
the red laser light beam on the line of cut.
9. After completing your cut, release the trigger switch
GB
and allow the blade to come to a complete stop. Do not
remove the saw from the work piece while the blade is
moving.
10. Switch off the laser beam on completion of the cut.
Note. The laser generated line is preset to align with the left
side of the blade (closest to the motor).

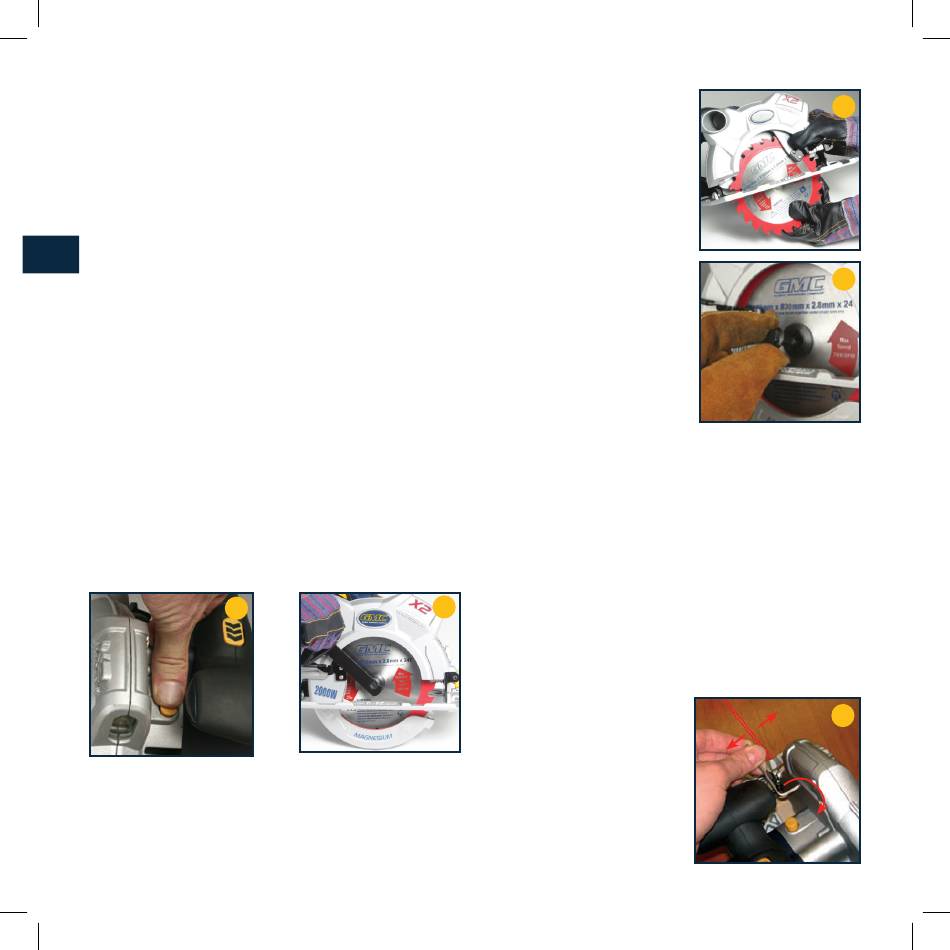

Changing the blade

CAUTION. Always ensure that the saw is switched off
and unplugged from the power supply before making any
adjustments.
1. Place saw on its side on a flat surface.
2. Rotate the saw blade by hand whilst depressing the
spindle lock button (20) until the blade locks (Fig. Q).
3. Whilst depressing the spindle lock button, turn the blade
bolt anti-clockwise using the wrench provided (Fig. R).
4. Remove the outer blade flange and the blade bolt.
5. Raise the lower blade guard (14) using the blade
guard lever (13).
6. Remove the saw blade from the inner flange and pull it
out (Fig. S)
DLS2000MCF_IM.indd 12
Q
7. Clean the saw blade flanges
thoroughly before mounting
the new saw blade. Wipe a
drop of oil onto the inner and
outer flange where they will
touch the blade.
8. Mount the new saw blade
onto the spindle and against
the inner flange.
9. Replace the outer flange and
tighten the blade bolt (Fig.T).
WARNING. The direction in
which the blade rotates has
to be the same as the direction
of the arrow marked on the
housing (25).
10. Ensure that the spindle lock
button (20) is released.
11. Before using the saw again, check that the safety
devices are in good working order.
IMPORTANT. After replacing the saw blade, make sure that
the saw blade runs freely by turning the blade by hand.
12. Plug the machine into a power socket and run the saw
under no load to check that it runs smoothly before using
it to cut any material.Only turn laser beam on when tool
is on workpiece.

Adjusting the twin laser

R
IMPORTANT. The tool should be plugged into a power
source when checking and adjusting the dual laser line.
Ensure hands are kept well away from the saw
blade and avoid accidental activation of the trigger.
1. To adjust the twin laser,
insert a hex key into the
laser guard and turn to
move the laser from side
to side. This will align the
laser with the
blade (Fig. U).
12
S
T
U
