Health & Safety Vision Engineering and its products conforms to the requirements of the EC Directives on Waste Electrical and Electronic Equipment (WEEE) and Restriction of Hazardous Substances (RoHS). Electrical Supply Stand Input Voltage: 9VDC 1.7A Power Supply Voltage (via plug top power supply) : 100-240VAC 50-60HZ 1.0A Max...
Insert the new desiccant and replace the desiccant cover. LED Arrays Remove the desiccant cover Remove the two crosshead screws that secure the LED array and remove the array complete with filters Reassembly is the reverse of this procedure. Mantis Compact with Universal Stand - User Guide www.visioneng.com/support...
Seite 7
This product is warranted to be free from defects in material and workmanship for a period of one year from the date of invoice to the original purchaser. If during the warranty period the product is found to be defective, it will be repaired or replaced at facilities of Vision Engineering or elsewhere, all at the option of Vision Engineering.

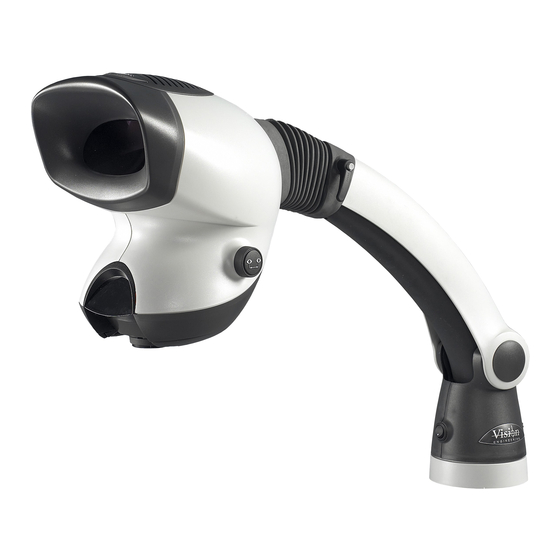

MANTIS ELITE Packing Contents Universal mount G-clamp Counter balanced boom stand Viewing head Power adapter Objective lens Anti glare hood Assembly Secure the universal mount to the work surface using the G-clamp provided or by using appropriate screws located in the counter bored holes of the Mount.
This product is warranted to be free from defects in material and workmanship for a period of one year from the date of invoice to the original purchaser. If during the warranty period the product is found to be defective, it will be repaired or replaced at facilities of Vision Engineering or elsewhere, all at the op- tion of Vision Engineering.
Santé et sécurité Vision Engineering et ses produits sont conformes aux exigences des directives européennes sur les Déchets d'équipements électriques et électroniques (Directive DEEE) et sur la Limitation de l'utilisation de certaines substances dangereuses (Directive RoHS).
Remplacer le dessiccant. LED Arrays Retirer le cache du dessiccant Retirer les 2 vis cruciformes qui tiennent le support des LED et retirer l’ensemble avec les filtres Remonter dans l’ordre inverse. Mantis Compact avec statif universel – Guide d’utilisation www.visioneng.com/support...
Seite 15
Cependant, Vision Engineering se réserve le droit de rembourser le prix d'achat s'il ne peut pas fournir le remplacement, si ce n'est pas commercialement faisable ou si le produit ne peut être dépanné. Les parties qui ne sont pas fabriquées par Vision Engineering sont garantis par leur fabricant. Les composants consommables tels que des fusibles ne portent aucune garantie.
Seite 16
Platine flottante (pour statif de table) Housse de protection Ensemble de LED de remplacement Spécifications D’éclairage Intensité lumineuse mesurée sur un sujet plan avec filtres correcteurs 20 LEDs 9.400 LUX 10.000 heures Mantis Compact avec statif universel – Guide d’utilisation www.visioneng.com/support...
MANTIS ELITE Contenu des colis Embase Serre joint Bras articulé Tête de projection Alimentation secteur Objectif Visière anti reflets Montage Fixer l’embase sur le plan de travail avec le serre-joint fourni ou en la vissant au travers des trous réservés à...
Cependant, Vision Engineering se réserve le droit de rembourser le prix d'achat s'il ne peut pas fournir le remplacement, si ce n'est pas commercialement faisable ou si le produit ne peut être dépanné. Les parties qui ne sont pas fabriquées par Vision Engineering sont garantis par leur fabricant. Les composants consommables tels que des fusibles ne portent aucune garantie.
MANTIS ELITE Famille de produit Mantis Elite Spécifications Alimentation Objectifs Adaptateur secteur externe 9V DC Objectifs Distance de travail Champ visuel 160mm 57,0mm Accessoires 96mm 34,0mm Verres de protection des objectifs 68mm 23,0mm Platine flottante (pour statif de table) Housse de protection X6 SLWD* 112mm 20,0mm...
Seite 21
Arbeitsschutz Vision Engineering und seine Produkte erfüllen die Anforderungen der EU-Richtlinien für Elektro- und Elektronik-Alt-/ Schrottgeräte (Waste Electrical and Electronic Equipment - WEEE) und Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten (Restriction of Hazardous Substances - RoHS).
Sie die Abdeckung. Ersetzen Sie die Luftentfeuchtungspatrone. LED-Beleuchtung Entfernen Sie die Luftentfeuchtungsabdeckung Lösen Sie die zwei Kreuzschlitzschrauben der Beleuchtungseinheit und entfernen Sie die gesamte Einheit inklusive Filter Ersetzen Sie die LED-Einheit. Mantis Compact mit Universalständer - User Guide www.visioneng.com/support...
Sollte während der Garantiezeit ein Fehler auftreten, wird dieser nach freier Wahl von Vision Engineering im Herstellwerk oder an einem anderen geeigneten Ort beseitigt. Vision Engineering behält sich das Recht vor den Kaufpreis zurück zu erstatten, wenn eine Ersatzlieferung nicht möglich oder eine Reparatur auf kommerzieller Basis in angemessener Zeit nicht durchführbar ist.
MANTIS ELITE Packungsinhalt Universalhalterung Montageklemme Universal Schwenk-/Kippständer Projektionskopf Steckernetzteil Objektiv Blendschutz-Aufsatz Aufbauanleitung Die Universalhalterung wird am Arbeitstisch befestigt, entweder durch Klemmung der mitgelieferten Montageklemme, oder mit drei entsprechenden Schrauben (Schrauben nicht im Lieferumfang). Die Unterseite des Universalständers wird mit der Universalhalterung in Deckung gebracht und über den Führungsbolzen der Halterung geschoben bis der Ständer plan aufliegt.
Sollte während der Garantiezeit ein Fehler auftreten, wird dieser nach freier Wahl von Vision Engineering im Herstellwerk oder an einem anderen geeigneten Ort beseitigt. Vision Engineering behält sich das Recht vor den Kaufpreis zurück zu erstatten, wenn eine Ersatzlieferung nicht möglich oder eine Reparatur auf kommerzieller Basis in angemessener Zeit nicht durchführbar ist.
Salute e sicurezza Vision Engineering e i suoi prodotti sono conformi ai requisiti delle norme CE WEEE (Electrical and Electronic Equipment, rifiuti ambientali elettrici ed elettronici) e RoHS (Restriction of Hazardous Substances, restrizioni all'uso di sostanze pericolose).
Blocco LED Rimuovere il coperchio dell’essiccante Rimuovere le due viti a stella che fermano il blocco e rimuovere il blocco completo di filtri Per riassemblare l’unità eseguire questa procedura al contrario. Mantis Compact con Stativo Universal – Manuale d’uso www.visioneng.com/support...
Se, durante il periodo di garanzia, il prodotto dovesse risultare difettoso, verrà riparato o sostituito nei laboratori Vision Engineering altrove, a discrezione di Vision Engineering. In ogni caso, Vision Engineering si riserva il diritto di rimborsare il costo dell'acquisto se non sarà in grado di sostituirlo, se la riparazione non dovesse risultare fattibile per motivi commerciali o se il prodotto non fosse riparabile in modo tempestivo.
Tavolino mobile (per stativo a colonna) Copertina anti-polvere Blocco LED di ricambio Informazioni illuminazione Intensità in lux misurata su soggetto piano con filtri di correzione del colore 20 LEDs 9.400 LUX 10.000 ore Mantis Compact con Stativo Universal – Manuale d’uso www.visioneng.com/support...
Seite 33
MANTIS ELITE Contenuto confezione Base universal Morsetto a G Stativo Universal Testa Alimentatore esterno Obiettivo Paraluce anti riflesso Assemblaggio Fissare la base universal al banco di lavoro usando il morsetto a G oppure utilizzando viti appropriate da posizionare nei fori della base. Posizionare lo Stativo Universal sulla parte alta della base universal.
Seite 34
Se, durante il periodo di garanzia, il prodotto dovesse risultare difettoso, verrà riparato o sostituito nei laboratori Vision Engineering altrove, a discrezione di Vision Engineering. In ogni caso, Vision Engineering si riserva il diritto di rimborsare il costo dell'acquisto se non sarà in grado di sostituirlo, se la riparazione non dovesse risultare fattibile per motivi commerciali o se il prodotto non fosse riparabile in modo tempestivo.
Seite 35
MANTIS ELITE Mantis Elite – Gruppo Prodotto Dati Tecnici Obiettivi Tensione elettrica Alimentatore esterno 9V DC Obiettivi Distanza di lavoro Campo visivo 160mm 57,0mm Accessori 96mm 34,0mm Tappi proteggi lente 68mm 23,0mm Tavolino mobile (per stativo a colonna) Copertina anti-polvere X6 SLWD* 112mm 20,0mm...
Seite 37
Salud & Seguridad Vision Engineering y sus productos cumplen con los requerimientos de las directivas EC en Residuos de Equipos Eléctricos y Electrónicos (WEEE) y la Restricción de Sustancias Peligrosas (RoHS).
Sáquelo del envoltorio Suelte los tornillos de seguridad que protegen la batería de leds y saque el juego complete con los filtros Para volver a montarla, proceda en modo inverso a este proceso. Guía usuario para Mantis Compact con plataforma universal www.visioneng.com/support...
Este producto tiene una garantía de un año desde la fecha de compra en defectos de material y de fabricación. Si durante el periodo de garantía un producto es defectuoso, este será reparado o cambiado en una planta de Vision Engineering o en otro lugar, a elección de Vision Engineering.
Mesa flotante (para soporte banco) Protección contra el polvo Batería de leds de recambio Datos alumbrado Intensidad Lux medida en el plano con filtros correctores del color 20 LEDs 9.400 LUX 10.000 horas Guía usuario para Mantis Compact con plataforma universal www.visioneng.com/support...
Seite 41
MANTIS ELITE Contenidos Acoplamiento Universal Abrazadera - G Soporte con plataforma de contrapesado Cabezal de visión Cargador Lente objetivo Protección contra deslumbramiento Montaje Fije el acoplamiento Universal a la superficie de trabajo con la abrazadera G suministrada, o con los tornillos adecuados situados en los orificios del acoplamiento.
Si durante el periodo de garantía se estropea el producto, será reparado o cambiado en las instalaciones de Vision Engineering o en otro lugar, a opción de Vision Engineering. Sin embargo, Vision Engineering se reserva el derecho de reembolsar el precio de compra si no pudiera reponer el producto y la reparación no fuera comercialmente viable o no se pudiera realizar a tiempo.
Seite 43
MANTIS ELITE Componentes opcionales para Mantis Elite Datos técnicos Lentes Fuente alimentación Lentes Distancia de trabajo Campo de visión Transformador externo 9V DC 160mm 57,0mm Accesorios 96mm 34,0mm Protectores para lentes 68mm 23,0mm Mesa flotante (para soporte banco) Protección contra el polvo X6 SLWD* 112mm 20,0mm...
Seite 45
健康 & 安全 ヴィジョン・エンジニアリングが製造している製品は、EC Directives on Waste Electrical and Electronic Equipment (WEEE) およびRestriction of Hazardous Substances (RoHS) に準拠しています。...
Seite 53
健康和安全 英国Vision微视技术检验测量设备有限公司及其产品是遵循欧洲环保指令在WEEE和RoHS的规定 注: WEEE (Waste Electrical and Electronic Equipment) 第2002/96/EC号指令是欧盟于2003年2月13日在其官方 公报上公布的指令。目的首要是防止报废电子电气设备的产生,并实现这些报废设备的再利用、再循环 使用和其它形式的回收,以达到减少废弃物的处理。所有准备将自己的电子电器产品销售到欧洲市场的 企业都将受到WEEE指令的影响。包括欧洲各国家及其它各国的生产者。欧盟指令并不直接适用于生产 者,这些指令在每个欧盟成员国内必须被首先转化成国内法律。 RoHS (the Restriction of the use of certain hazardous substance in electrical and electronic equipment) 第 2002/96/EC号指令也是欧盟于2003年2月13日在欧盟官方公报上公布的指令。RoHS 表示对有害物质的 限制。目的是使各成员国关于在电子电气设备中限制使用有害物质的法律趋于一致,有助于保护人类健 康和合乎要求的回收和处理。RoHS一共列出六种有害物质:包括Hg(汞)、Cd(镉)、Pb(铅)、Cr6+(六价 铬)、PBB(多溴化联苯)和PBDE(多溴二苯醚)
Seite 61
건강과 안전 Vision Engineering과 당사의 제품은 WEEE(전기 및 전자 장비 폐기물)와 RoHS(유해물질의 사용에 대한 제한)에 관한 EC 고시의 요건을 준수합니다.
Seite 62
MANTIS COMPACT 포장 내용물 한 유니버설 마운트 국 어 G-클램프 카운터 밸런스형 붐 스탠드 뷰잉 헤드 전원 어댑터 대물 렌즈 조립 제공된 G-클램프를 사용하거나 마운트의 구멍에 있는 나사를 사용해 유니버설 마 운트를 작업면에 고정합니다. 유니버설 암을 유니버설 마운트의 상부 에 놓고 완전히 장착될 때까지 마개 위...
Seite 63
보증 기간 내에 결함이 발견되었을 경우 Vision Engineering사의 서비스 센터나 Vision Engineering사가 지정한 곳에서 수리, 교환할 수 있습니다. 그러나 교 환이 불가능한 경우나 수리 비용이 너무 높거나 수리 기간이 너무 길어지는 경우 Vision Engineering사는 제품의 수리 및 교환 대신 제품 가격을 환불해 드...
Seite 64
MANTIS COMPACT 맨티스 컴팩트 제품군 한 국 어 기술 데이터 대물 렌즈 전원 대물 렌즈 작동 거리 시계 9V DC 아답타 167mm 45.0mm 악세사리 96mm 27.5mm 렌즈 보호 뚜껑 73mm 19.2mm 벤치 스탠드용 Floating stage 먼지 커버 교체용 LED 어레이...
Seite 65
MANTIS ELITE 포장 내용물 유니버설 마운트 G-클램프 카운터 밸런스형 붐 스탠드 뷰잉 헤드 전원 어댑터 대물 렌즈 눈부심 방지 후드 조립 제공된 G-클램프를 사용하거나 마운트의 반대쪽에 보링된 구멍에 있는 나사를 사용해 유니버설 마운트를 작업면 에 고정합니다. 유니버설 암을 유니버설 마운트의 상부에 놓습니 다.
Seite 66
보증 기간 내에 결함이 발견되었을 경우 Vision Engineering사의 서비스 센터나 Vision Engineering사가 지정한 곳에서 수리, 교환할 수 있습니다. 그러나 교 환이 불가능한 경우나 수리 비용이 너무 높거나 수리 기간이 너무 길어지는 경우 Vision Engineering사는 제품의 수리 및 교환 대신 제품 가격을 환불해 드...
Seite 67
MANTIS ELITE 맨티스 컴팩트 제품 가계도 기술 데이터 대물 렌즈 전원 9V DC 아답타 대물 렌즈 작동 거리 시계 160mm 57.0mm 악세사리 96mm 34.0mm 렌즈 보호 뚜껑 68mm 23.0mm 벤치 스탠드용 Floating stage X6 SLWD* 112mm 20.0mm 먼지 커버 교체용 LED 어레이 59mm 17.0mm 54mm...
, и снимите крышку. Замените влагопоглотитель. Светодиодные матрицы Снимите крышку влагопоглотителя Удалите два винта с крестообразным шлицем, крепящих светодиодную матрицу , и извлеките матрицу вместе с фильтрами. Соберите узел в обратном порядке. www.visioneng.com/support Mantis Compact на универсальном штативе – Руководство пользователя...
Если в течение гарантийного срока будут обнаружены дефекты изделия, оно будет отремонтировано или заменено на предприятиях Vision Engineer- ing или других, по выбору Vision Engineering. Однако, Vision Engineering оставляет за собой право на возмещение покупной цены, если окажется невозможным обеспечить замену, а ремонт коммерчески не выгоден или не может быть выполнен своевременно. На детали, произведенные не...
27,5mm оборудование 73mm 19,2mm Светофильтры защитные прозрачные Плавающий стоик Чехол Данные освещения Дополнительный светодиодный Интенсивность освещения, измеренная на предметной пластине с осветитель фильтрами цветовой коррекции 10.000 часов 20 LEDs 9.400 LUX www.visioneng.com/support Mantis Compact на универсальном штативе – Руководство пользователя...
Seite 73
MANTIS ELITE Содержимое упаковки Универсальный держатель Струбцина Универсальный штатив Оптическая головка Сетевой адаптер Объектив Антибликовая насадка Монтаж Закрепите универсальный держатель на рабочей поверхности с помощью прилагающейся струбцины или с помощью соответствующих винтов, находящихся в отверстиях, высверленных в держателе. Поместите универсальный штатив на универсальный держатель.
Seite 74
счета-фактуры первоначальному покупателю. Если в течение гарантийного срока будут обнаружены дефекты изделия, оно будет отремонтировано или заменено на предприятиях Vision Engineering или других, по выбору Vision Engineering. Однако, Vision Engineering оставляет за собой право на возмещение покупной цены, если окажется невозможным обеспечить замену, а ремонт коммерчески не выгоден или не может быть выполнен...
Seite 75
MANTIS ELITE Конфигурации Mantis Elite Технические характеристики Источник питания Объективы внешний источник питания 9V DC Объективы Рабочее расстояние Поле обзора 160mm 57,0mm Дополнительное 96mm 34,0mm оборудование 68mm 23,0mm Светофильтры защитные прозрачные Плавающий стоик X6 SLWD* 112mm 20,0mm Чехол 59mm 17,0mm Дополнительный...
