Philips InteGrade Schnellinstallationshandbuch Seite 12

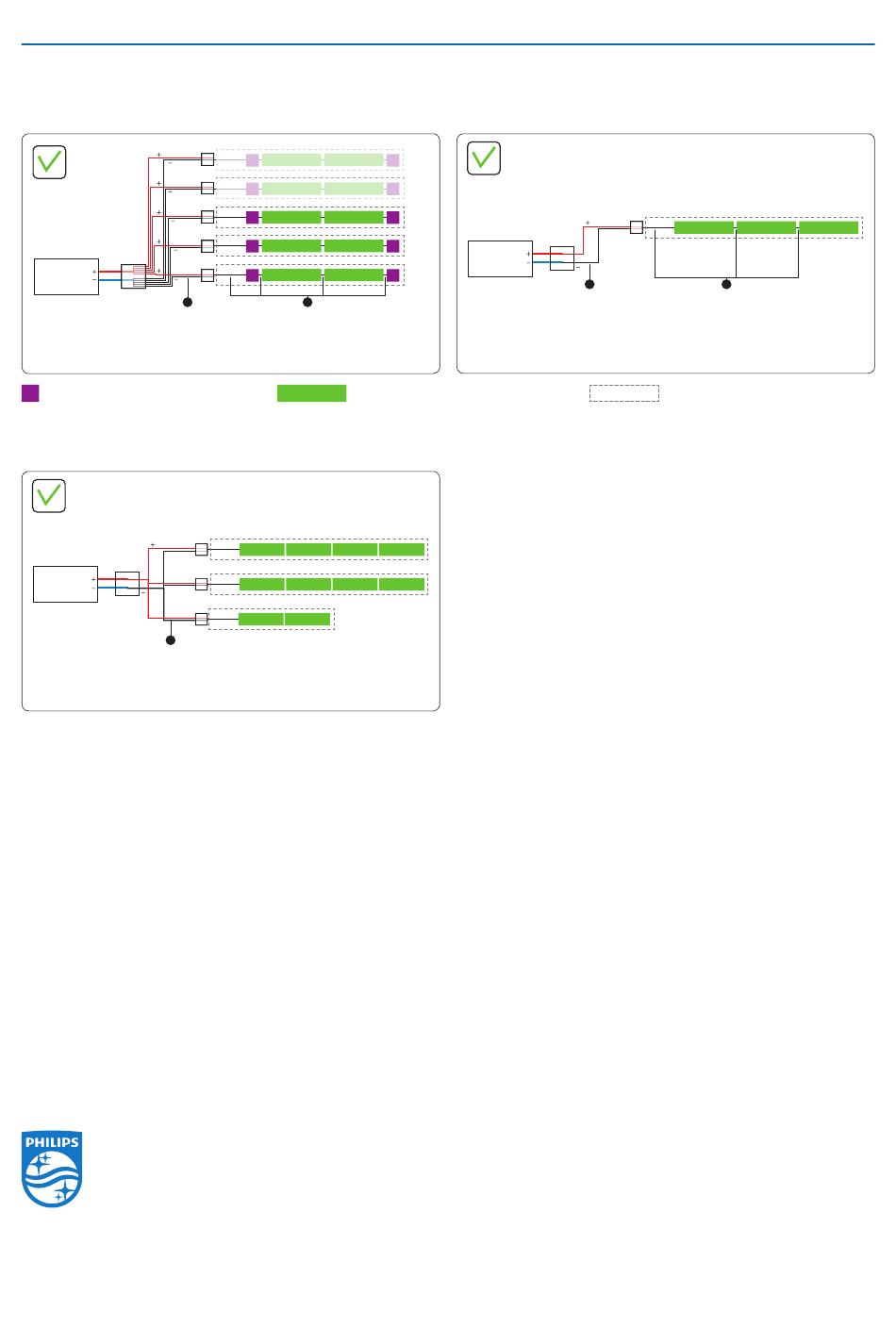

Wiring diagram with Philips InteGrade LED engines
Example parallel connections (more strings)
Philips LED
Power Driver
80 W 24V DC
A
driver cable 0.75 mm
approx 0.3 m (AWG 18)
(12 inch) max. 10 m
(32 feet)
InteGrade LED engine 140 mm (6")
Example parallel connections (max. 100W per string)
100 W
Philips LED
100 W
Power Driver
300 W
50 W
A
Only InteGrade cable
© 2019 Signify Holding. IBRS 10461, 5600 VB, NL. All rights reserved. The information
provided herein is subject to change, without notice. Signify does not give any
representation or warranty as to the accuracy or completeness of the information
included herein and shall not be liable for any action in reliance thereon. The information
presented in this document is not intended as any commercial offer and does not form
part of any quotation or contract, unless otherwise agreed by Signify.
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
All other trademarks are owned by Signify Holding or their respective owners.
Document order number: 4422 946 47681
04/2019
Data subject to change
B
Philips InteGrade
2
cable per string
together max. 2.5 m
(98 inch)
InteGrade LED engine 575 mm (23")
Example series connections (one string)
Philips LED
Power Driver
20 W 24V DC
A
driver cable 0.75 mm
2
approx 0.3 m (AWG 18)
(12 inch) max. 10 m
(32 feet)
www.philips.com/oem
www.philips.com/ledmodulesna
NA Customer Support/Technical Service: Tel. (1)800-372-3331
B
Philips InteGrade
cable per string
together max. 2.5 m
(98 inch)
1 string
