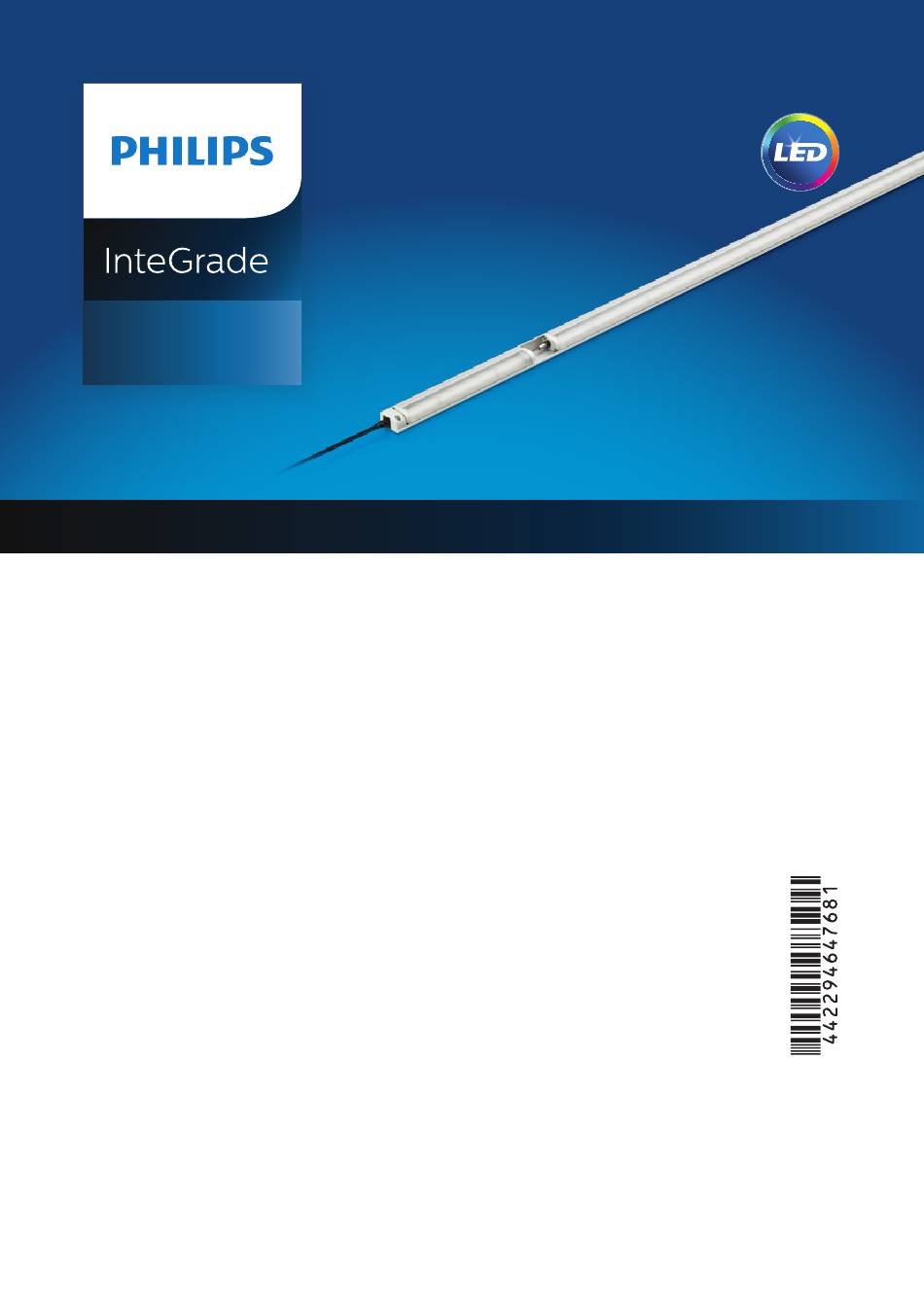

- Seite 1 Xitanium LED driver Philips InteGrade UB LED engine system Quick Installation Guide The perfect fit for indoor environments and refrigerated canopies (-30 to +30 °C / -22 to +86 °F) April 2019...
- Seite 2 Philips. • This Philips LED product is designed to be connected to a circuit from a class 2 power source (Philips LED power driver) with energy- limited supply. For maximum system efficacy, load the driver to 90%.
- Seite 3 LED Power Driver 240W 24VDC 120-240V* 92900210208 * Das InteGrade LED Modul System betrieben von diesem Treiber erfüllt den IEC 60335 Standard (verwendbar im Haushalt und ähnlichen elektrischen Anwendungen) Entsorgung des Systems Wir empfehlen die Module und alle dazugehörigen Komponenten am Ende ihrer (wirtschaftlichen) Lebensdauer sachgemäß zu entsorgen.
- Seite 4 11.8 pollici (30 cm) per la lunghezza dell’apparecchio d’ illuminazione • Debido a la variedad de diseños y marcas en los que se pueden instalar los productos LED de Philips, es posible que tenga que utilizar unos soportes personalizados para el diseño específico. Si necesita más ayuda, póngase en contacto con la organización de ventas local de Philips.
- Seite 5 • Veillez à ne pas endommager le filament existant (chauffant) si le produit à LED est installé dans un réfrigérateur. • N’utilisez pas de ruban adhésif pour fixer en place le produit InteGrade LED ou le profilé à LED ; veuillez employer les clips de montage appropriés.
- Seite 6 Garanzia La garanzia si applica esclusivamente in caso di utilizzo del driver LED Philips e dei cavi Philips adeguati (come descritto nella presente guida e nelle brochure). Per maggiori informazioni visitare il sito internet www.philips.com/oem o contattare gli uffici commerciali Philips locali.
- Seite 7 Philips geleverde instructies. • Dit Philips LED-product is ontworpen om te worden aangesloten op een circuit van een klasse 2 voedingsbron (Philips LED vermogensdriver) van een voeding waarvan het vermogen beperkt is.
- Seite 8 InteGrade mounting engine pro le (F style) spacer cable cable cable angle connector lock inline clip canopy 2.9 mm (1/8 inch) Phillips H0 screw driver Start 8 - 12 Quick Install Guide - Philips InteGrade UB LED engine system April 2019...
- Seite 9 Each powered section should be locked in place by two "lock in-line's" to ensure proper contacting of the engines and power cables. 9 - 12 Quick Install Guide - Philips InteGrade UB LED engine system April 2019...
- Seite 10 Create a fixture with InterGrade LED engines Phillips HO screwdriver/ torque 10 to 15 cNm 10 - 12 Quick Install Guide - Philips InteGrade UB LED engine system April 2019...
- Seite 11 - LED Power Driver 100 W (logistic code 929001669506) max 90 W • Use Philips InteGrade LED power cable of 1 m (39 inch) or 2.5 m (98 inch) • If InteGrade power cables are extended, only use 0.75 mm2 (AWG 18) or thicker cable uptil a length of max 10 m (32 feet) between driver and Philips LED power cable •...
- Seite 12 Signify. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. All other trademarks are owned by Signify Holding or their respective owners.
