Installation Instructions

1. Disconnect all mains power from the computer at the plug.
2. Remove the case/cover from your PC system.
3. Unplug all power connectors from the old power supply.
4. Remove the four screws from the rear of the case that hold the old power
supply to the chassis, then remove the old power supply from the case.
5. Screw the four screws into the rear of the case that hold the FSP power
supply to the chassis.
6. Reconnect all power connectors from the FSP power supply to the computer
components. The plugs will only fit one way, so if they don't fit, do not try
to force them, just try them the other way round.
7. Ensure no screws remain loose inside the casing as these could potentially
short-circuit your motherboard.
8. Replace the case/cover.
2

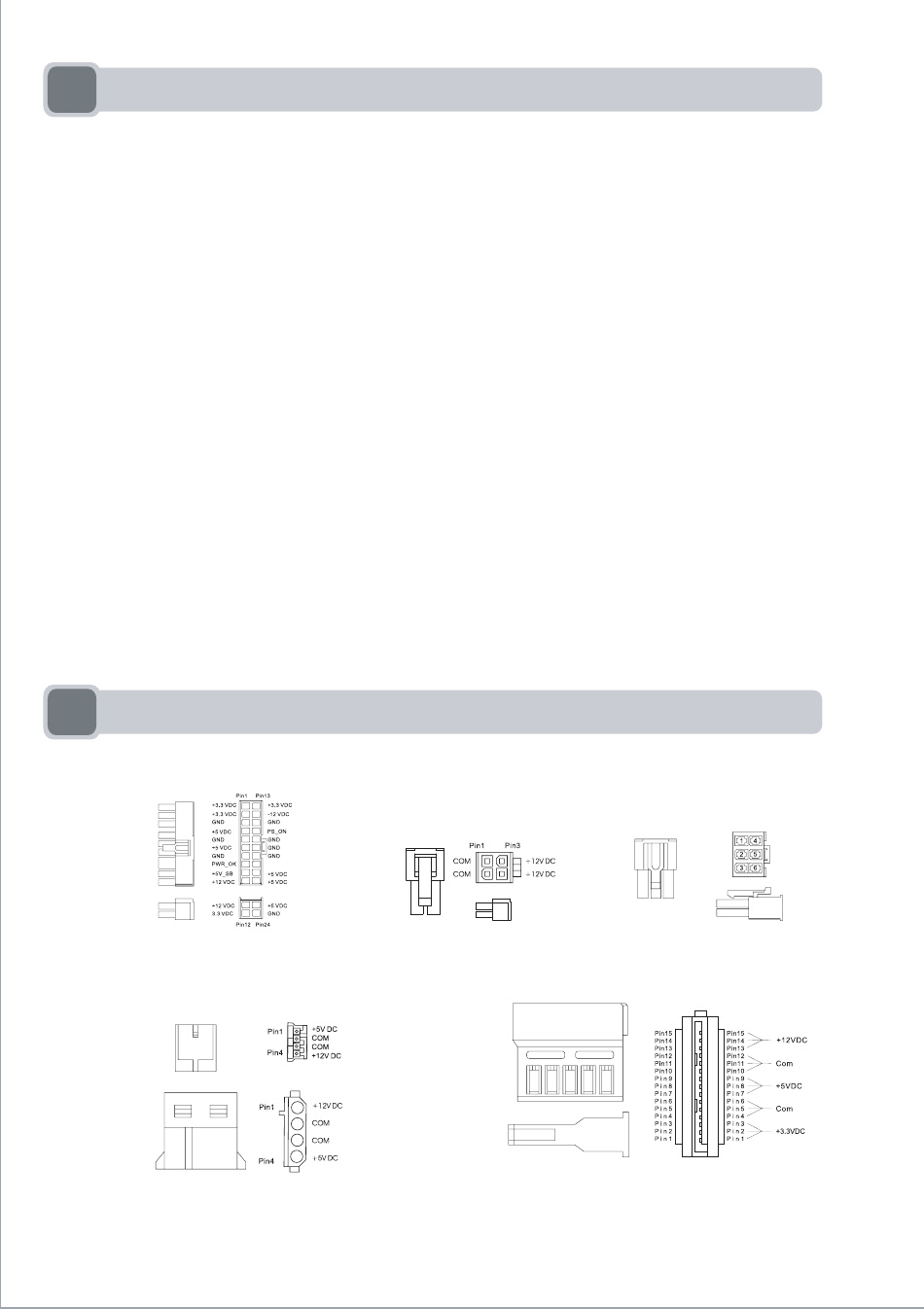

Description of Connectors

Main power connector
Peripheral power connector
+12V power connector
Serial ATA power connector
1
Pin1 Pin2
+12VDC COM
+12VDC COM
+12VDC COM
connector
+12V PCI Express
