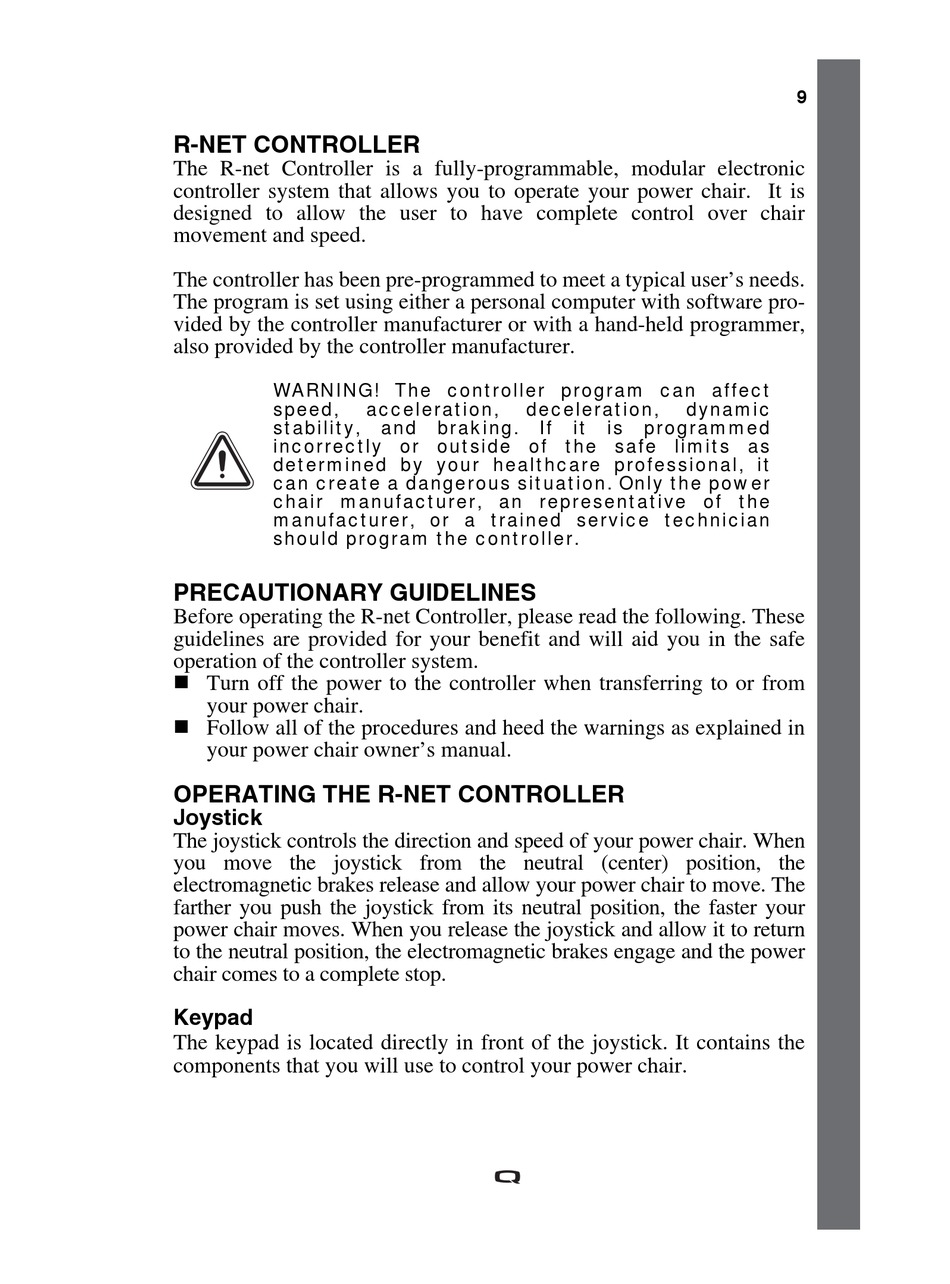

R-NET CONTROLLER

The R-net Controller is a fully-programmable, modular electronic
controller system that allows you to operate your power chair. It is
designed to allow the user to have complete control over chair
movement and speed.
The controller has been pre-programmed to meet a typical user's needs.
The program is set using either a personal computer with software pro-
vided by the controller manufacturer or with a hand-held programmer,
also provided by the controller manufacturer.
WARNING! The controller program can affect
speed,
stability,
incorrectly or outside of the safe limits as
determined by your healthcare professional, it
can create a dangerous situation. Only the power
chair manufacturer, an representative of the
manufacturer, or a trained service technician
should program the controller.

PRECAUTIONARY GUIDELINES

Before operating the R-net Controller, please read the following. These
guidelines are provided for your benefit and will aid you in the safe
operation of the controller system.
 Turn off the power to the controller when transferring to or from
your power chair.
 Follow all of the procedures and heed the warnings as explained in
your power chair owner's manual.

OPERATING THE R-NET CONTROLLER

Joystick

The joystick controls the direction and speed of your power chair. When
you move the joystick from the neutral (center) position, the
electromagnetic brakes release and allow your power chair to move. The
farther you push the joystick from its neutral position, the faster your
power chair moves. When you release the joystick and allow it to return
to the neutral position, the electromagnetic brakes engage and the power
chair comes to a complete stop.

Keypad

The keypad is located directly in front of the joystick. It contains the
components that you will use to control your power chair.
acceleration, deceleration,
and braking. If
dynamic
it is programmed
9
