Pump Connection; Pump Installation - Axis Washer Kit A Installationsanleitung

1

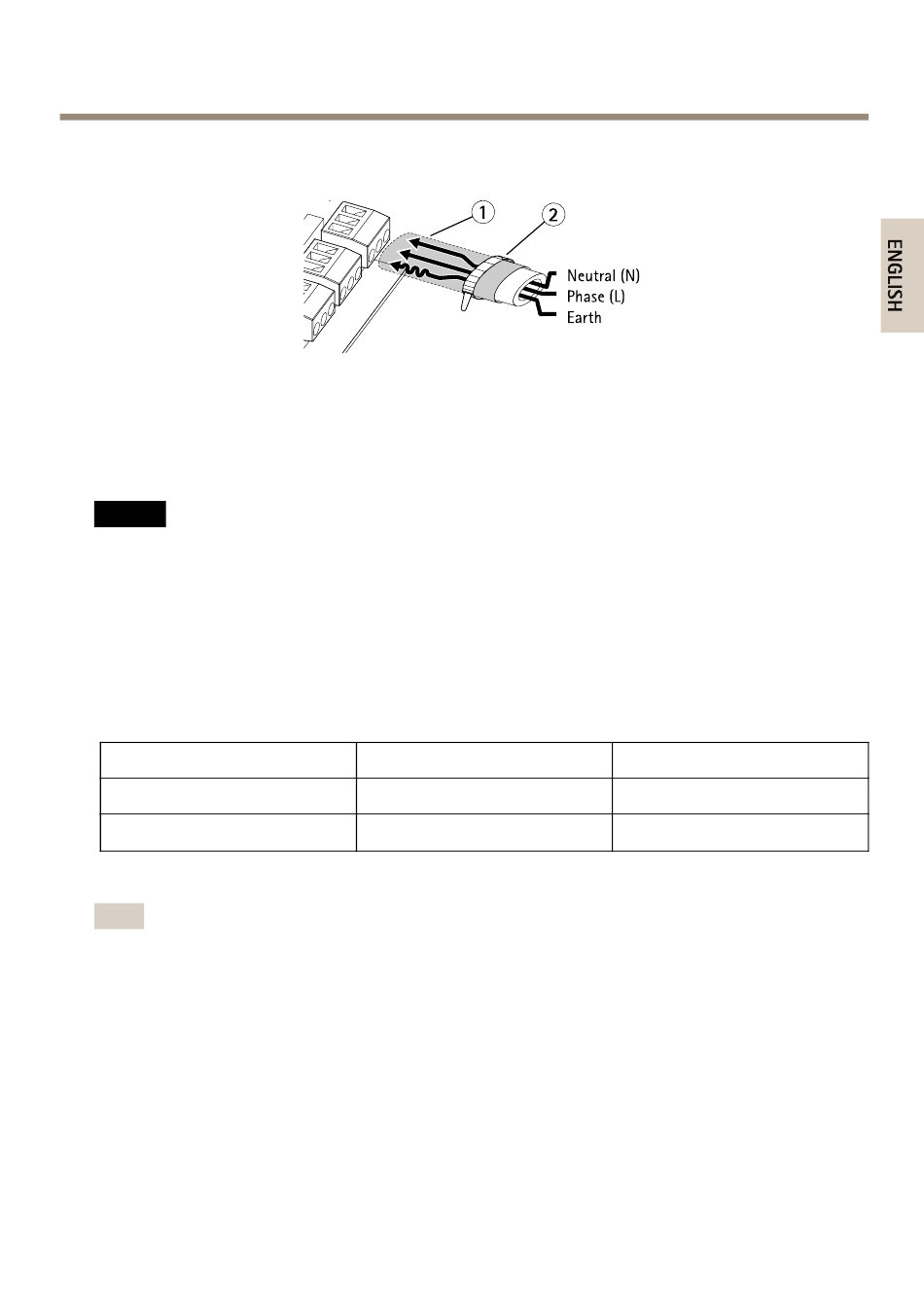

Silicone sheath
2
Strap
NO NO TICE NO TICE TICE
• The Earth cable should be about 10mm longer than the other two, so that it will not be
disconnected accidentally if pulled.
• All the conductors of terminals must be separated from the other low voltage circuits. The
disconnection of a wire must not compromise the protection against electric shocks.

Pump Connection

Connect the Pan & Tilt to the J9 terminal as described in the table below.
Terminal
CP
GCP
Note
All connections of terminal J9 must have a very low safety voltage.

Pump Installation

Fill the tank with water and insert it in the metal cage, see Hardware Overview
Put the pump and float inside the tank and screw the plug on, see image below.
Description
Pump control
GND (pump control)
11
AXIS Washer Kit A
Neutral (N)
Phase (L )
Earth
Q86 Camera
O1
C1
