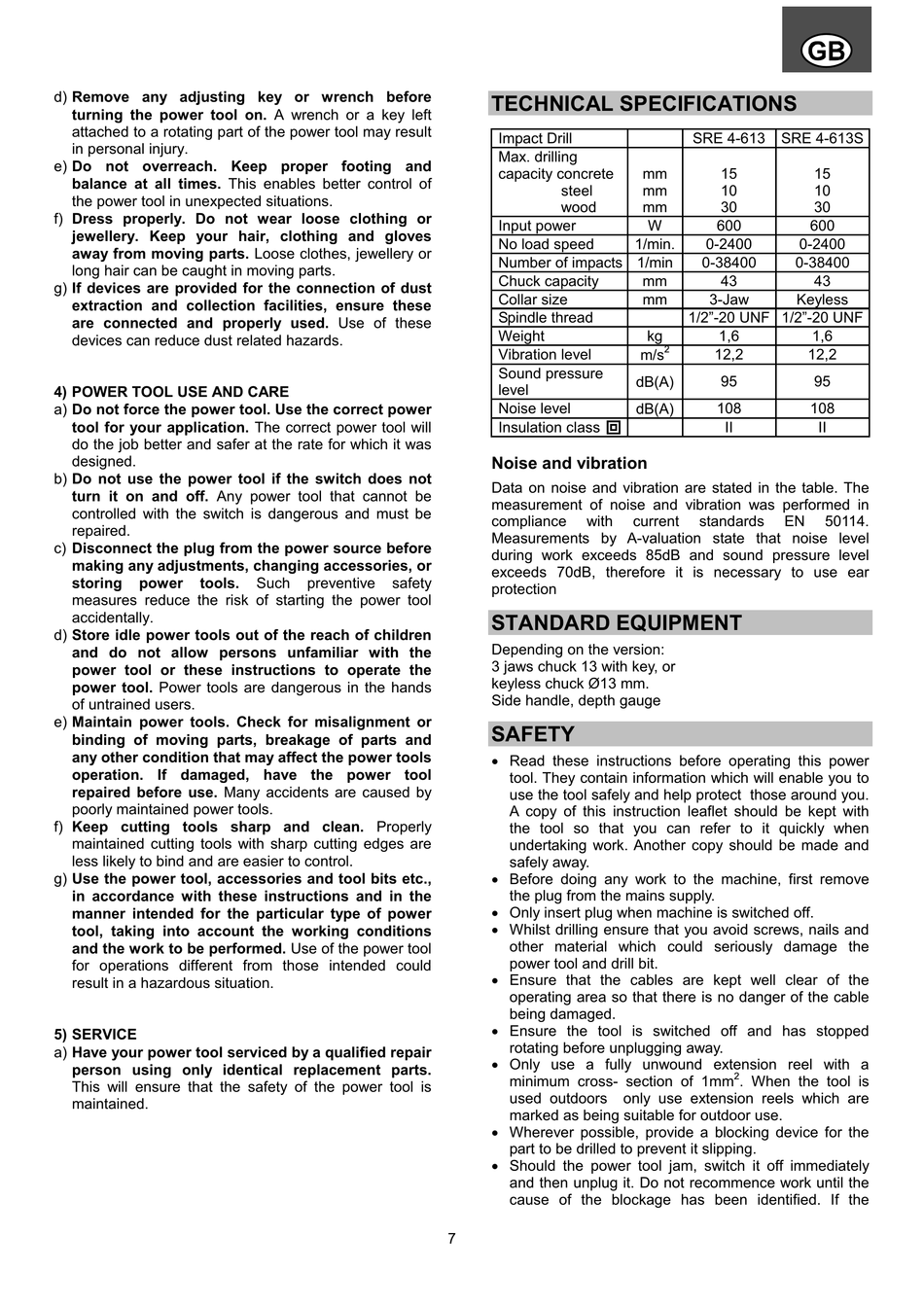

Technical Specifications; Standard Equipment - Perles SRE 4-613 Bedienungsanleitung

d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of these
devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools.
measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tools
operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
Such preventive safety

TECHNICAL SPECIFICATIONS

Impact Drill
Max. drilling
capacity concrete
steel
wood
Input power
No load speed
Number of impacts 1/min
Chuck capacity
Collar size
Spindle thread
Weight
Vibration level
Sound pressure
level
Noise level
Insulation class
Noise and vibration
Data on noise and vibration are stated in the table. The
measurement of noise and vibration was performed in
compliance with
Measurements by A-valuation state that noise level
during work exceeds 85dB and sound pressure level
exceeds 70dB, therefore it is necessary to use ear
protection

STANDARD EQUIPMENT

Depending on the version:
3 jaws chuck 13 with key, or
keyless chuck Ø13 mm.
Side handle, depth gauge
SAFETY
x Read these instructions before operating this power
tool. They contain information which will enable you to
use the tool safely and help protect those around you.
A copy of this instruction leaflet should be kept with
the tool so that you can refer to it quickly when
undertaking work. Another copy should be made and
safely away.
x Before doing any work to the machine, first remove
the plug from the mains supply.
x Only insert plug when machine is switched off.
x Whilst drilling ensure that you avoid screws, nails and
other material which could seriously damage the
power tool and drill bit.
x Ensure that the cables are kept well clear of the
operating area so that there is no danger of the cable
being damaged.
x Ensure the tool is switched off and has stopped
rotating before unplugging away.
x Only use a fully unwound extension reel with a
minimum cross- section of 1mm
used outdoors
marked as being suitable for outdoor use.
x Wherever possible, provide a blocking device for the
part to be drilled to prevent it slipping.
x Should the power tool jam, switch it off immediately
and then unplug it. Do not recommence work until the
cause of the blockage has been identified. If the
7
SRE 4-613 SRE 4-613S
mm 15
mm 10
mm 30
W 600
1/min. 0-2400
0-38400 0-38400
mm 43
mm 3-Jaw Keyless
1/2"-20 UNF 1/2"-20 UNF
kg 1,6
2
12,2
m/s
dB(A) 95
dB(A) 108
II
current standards EN
2
. When the tool is
only use extension reels which are
15
10
30
600
0-2400
43
1,6
12,2
95
108
II
50114.
