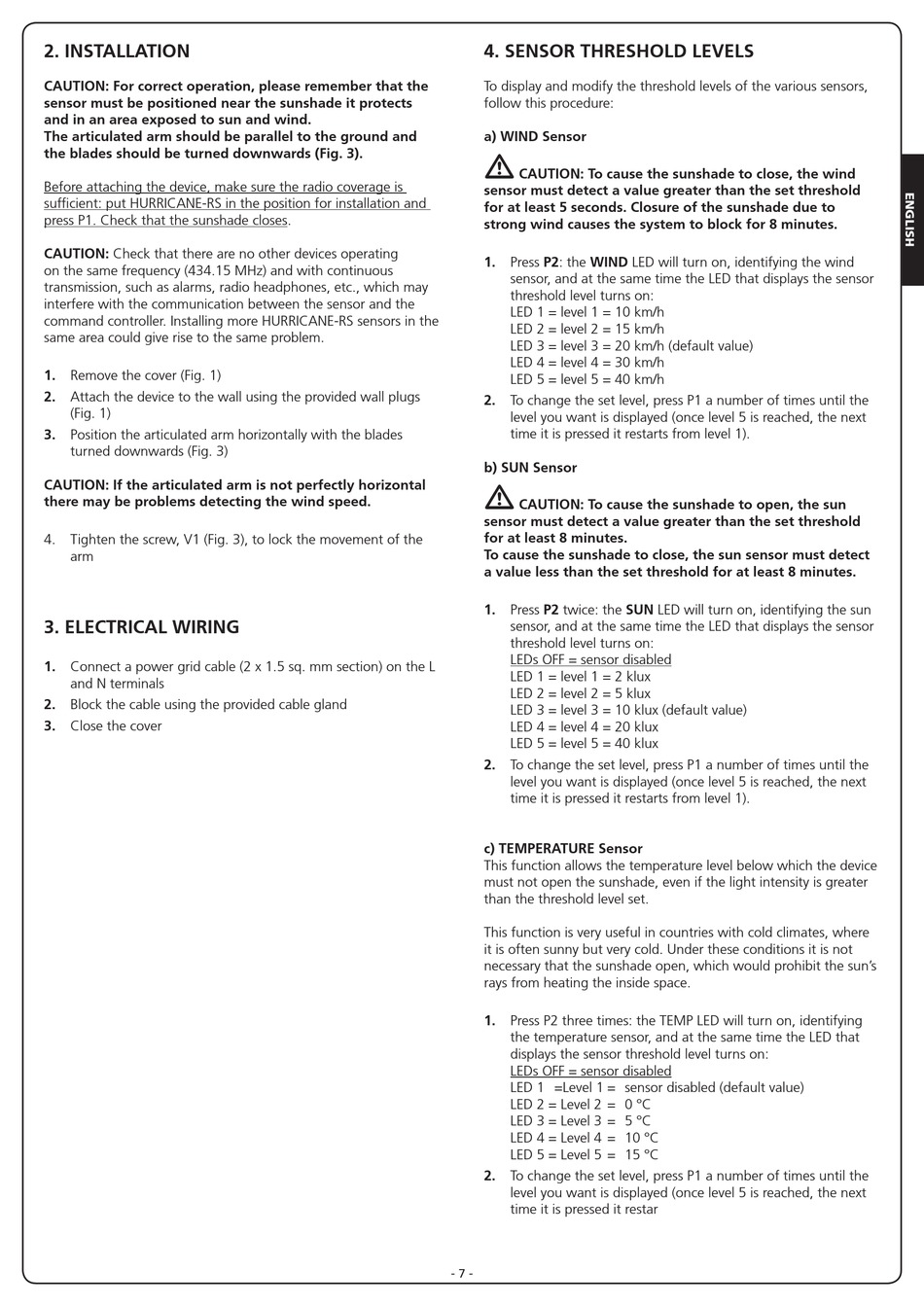

2. INSTALLATION

CAUTION: For correct operation, please remember that the
sensor must be positioned near the sunshade it protects
and in an area exposed to sun and wind.
The articulated arm should be parallel to the ground and
the blades should be turned downwards (Fig. 3).
Before attaching the device, make sure the radio coverage is
sufficient: put HURRICANE-RS in the position for installation and
press P1. Check that the sunshade closes.
CAUTION: Check that there are no other devices operating
on the same frequency (434.15 MHz) and with continuous
transmission, such as alarms, radio headphones, etc., which may
interfere with the communication between the sensor and the
command controller. Installing more HURRICANE-RS sensors in the
same area could give rise to the same problem.
1.
Remove the cover (Fig. 1)
2. Attach the device to the wall using the provided wall plugs
(Fig. 1)
3. Position the articulated arm horizontally with the blades
turned downwards (Fig. 3)
CAUTION: If the articulated arm is not perfectly horizontal
there may be problems detecting the wind speed.
4. Tighten the screw, V1 (Fig. 3), to lock the movement of the
arm

3. ELECTRICAL WIRING

1. Connect a power grid cable (2 x 1.5 sq. mm section) on the L
and N terminals
2. Block the cable using the provided cable gland
3. Close the cover
4. SENSOR THRESHOLD LEVELS
To display and modify the threshold levels of the various sensors,
follow this procedure:
a) WIND Sensor
m
CAUTION: To cause the sunshade to close, the wind
sensor must detect a value greater than the set threshold
for at least 5 seconds. Closure of the sunshade due to
strong wind causes the system to block for 8 minutes.
1. Press P2: the WIND LED will turn on, identifying the wind
sensor, and at the same time the LED that displays the sensor
threshold level turns on:
LED 1 = level 1 = 10 km/h
LED 2 = level 2 = 15 km/h
LED 3 = level 3 = 20 km/h (default value)
LED 4 = level 4 = 30 km/h
LED 5 = level 5 = 40 km/h
2. To change the set level, press P1 a number of times until the
level you want is displayed (once level 5 is reached, the next
time it is pressed it restarts from level 1).
b) SUN Sensor
m
CAUTION: To cause the sunshade to open, the sun
sensor must detect a value greater than the set threshold
for at least 8 minutes.
To cause the sunshade to close, the sun sensor must detect
a value less than the set threshold for at least 8 minutes.
1. Press P2 twice: the SUN LED will turn on, identifying the sun
sensor, and at the same time the LED that displays the sensor
threshold level turns on:
LEDs OFF = sensor disabled
LED 1 = level 1 = 2 klux
LED 2 = level 2 = 5 klux
LED 3 = level 3 = 10 klux (default value)
LED 4 = level 4 = 20 klux
LED 5 = level 5 = 40 klux
2. To change the set level, press P1 a number of times until the
level you want is displayed (once level 5 is reached, the next
time it is pressed it restarts from level 1).
c) TEMPERATURE Sensor
This function allows the temperature level below which the device
must not open the sunshade, even if the light intensity is greater
than the threshold level set.
This function is very useful in countries with cold climates, where
it is often sunny but very cold. Under these conditions it is not
necessary that the sunshade open, which would prohibit the sun's
rays from heating the inside space.
1. Press P2 three times: the TEMP LED will turn on, identifying
the temperature sensor, and at the same time the LED that
displays the sensor threshold level turns on:
LEDs OFF = sensor disabled
LED 1 =Level 1 = sensor disabled (default value)
LED 2 = Level 2 = 0 °C
LED 3 = Level 3 = 5 °C
LED 4 = Level 4 = 10 °C
LED 5 = Level 5 = 15 °C
2.
To change the set level, press P1 a number of times until the
level you want is displayed (once level 5 is reached, the next
time it is pressed it restar
