AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
The maximum output current from the RDMX Splitter 8 is 15A. See the User Manual or the specification sticker on the
product for more details.
AC Plug
Connection
AC live
AC neutral
AC ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
DMX Linking
The RDMX Splitter 8 will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from
www.chauvetprofessional.com.
Mounting
Before mounting this product, read the
mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps/

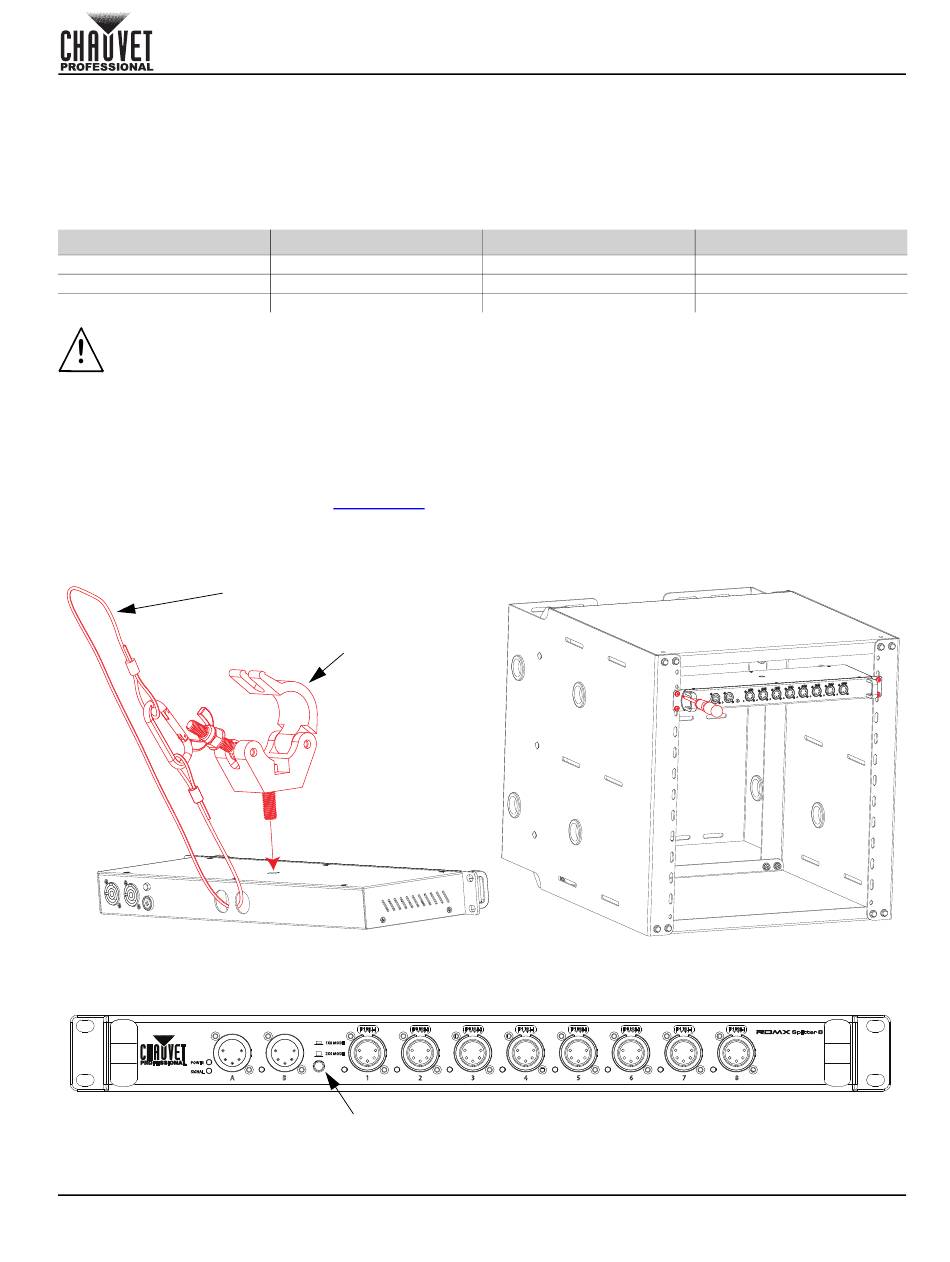

Product Mounting Diagram
Safety cable
Front Panel Description
POWER
SIGNAL
A
RDMX Splitter 8 QRG Rev. 2
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/yellow
Safety Notes. Use at least one mounting point per product. Make sure the
Mounting clamp
1X8 MODE
2X4 MODE
B 1 2
Mode button
Wire (Europe)
Brown
Blue
Green/yellow
3 4 5 6
Screw Color
Yellow/brass
Silver
Green
7 8
