Proklima BAHAG Bedienungsanleitung Seite 72

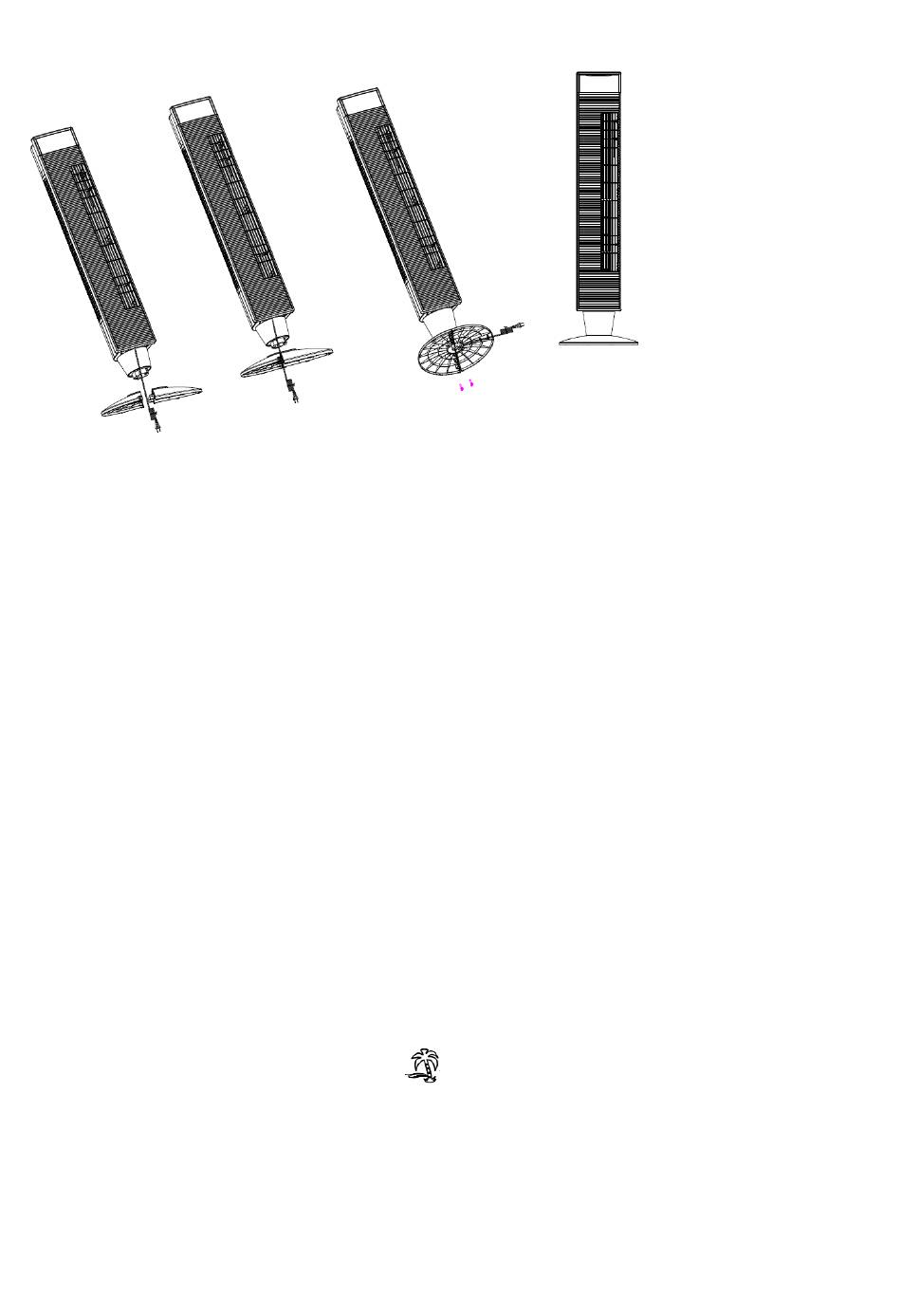

ASSEMBLY
1. Spin 2 screws out from the turnplate.
2. Fasten two pieces of base together.
3. Align the base with the turnplate and then spin 2 screws back to fasten them up.
4. Press the power cord into the line deduction.
OPERATION
Please press the control panel to choose your desired functions.
1. ON/SPEED: Connect the unit to a suitable power source. Then press ON/SPEED button to turn the unit on
and the display panel will now be illuminated.
1) If the unit is turned on at the first time, it will work with the following presetting:
Speed: low / Mode: normal / Swing: off / Timer: off
2) If the unit has already been used, press ON/SPEED button, the unit will resume former settings; except
the function of timer. But, if you pull out the plug from the socket, the former settings will all be lost.
3) If the unit is working, press ON/SPEED button to adjust the speed. It will work as below:
Low → Mid → High → Low ... (repeating).
Note: Wind direction can be adjusted up and down by the blade adjuster in the air outlet.
2. MODE: Press this button to choose the mode functions from normal →Natural → Sleeping → Normal ...
(Repeating).
1) Normal: under this mode, the motor works with the preset speed. You can press ON/SPEED button to
choose speed Low /Mid /High.
2) Natural: under this mode, the display of
Low /Mid /High. The fan will operate as follows:
is on. You can press ON/SPEED button to choose speed
- 71 -
