Rear Panel Layout - R5a

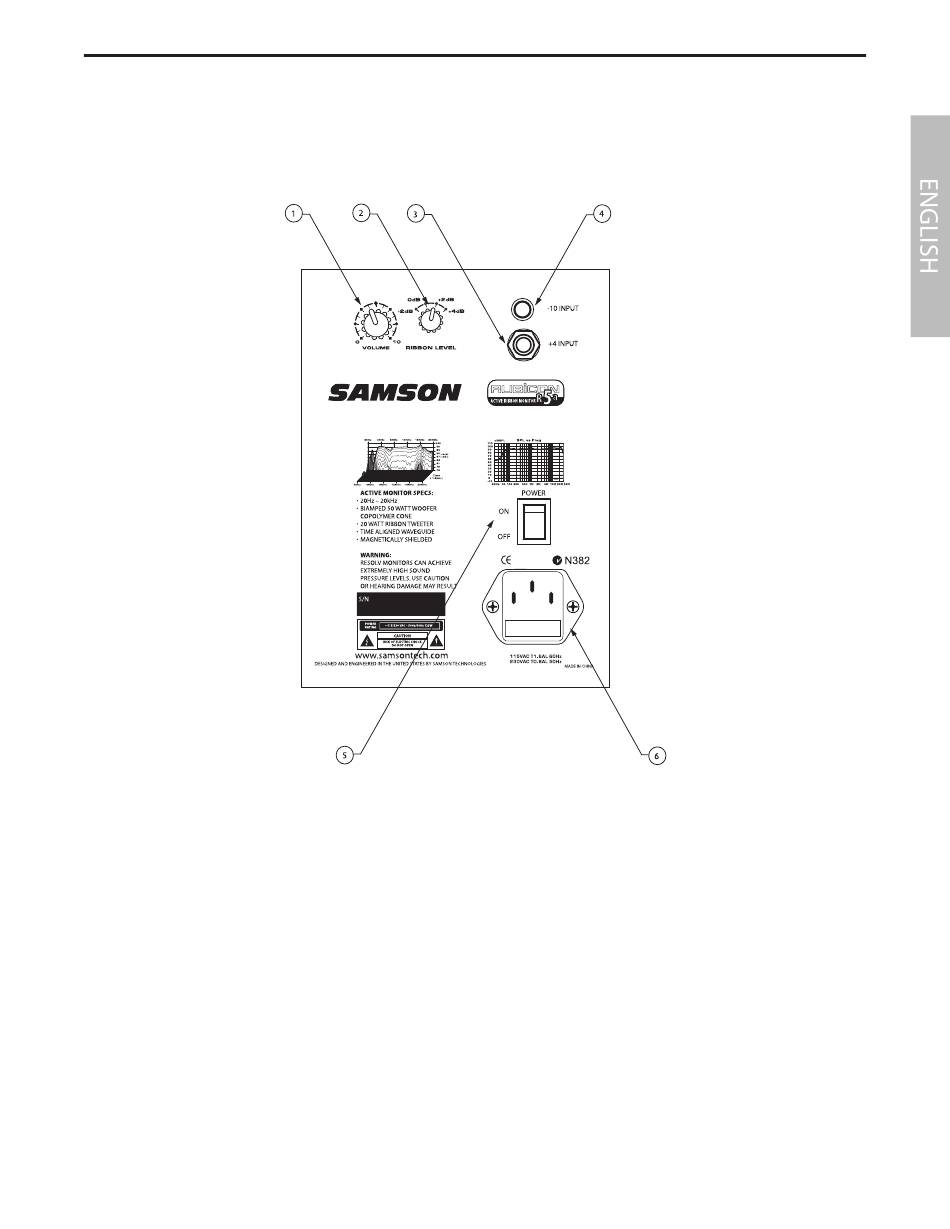

1 VOLUME - Controls the amount of output level.
2 RIBBON LEVEL CONTROL – Four-position
switch used to adjust the high frequency
response providing customized voicing.
3 1/4-INCH PHONE – Balance TRS (Tip, Ring,
Sleeve) 1/4-inch phone plug used to connect
balanced or unbalanced +4dBu line level signals.
Rubicon R5a and R6a Layout
4 RCA – Used to connect signals from unbalanced,
–10dBV devices.
5 POWER SWITCH – Main power switch.
6 AC INLET - Connect the supplied IEC power cable
here.
