f. If stacking the expansion module on top of another module, engage the Y-rails of the new
module in your library configuration. Ensure that the Y-rails are properly aligned and the
thumbscrews are tightened.

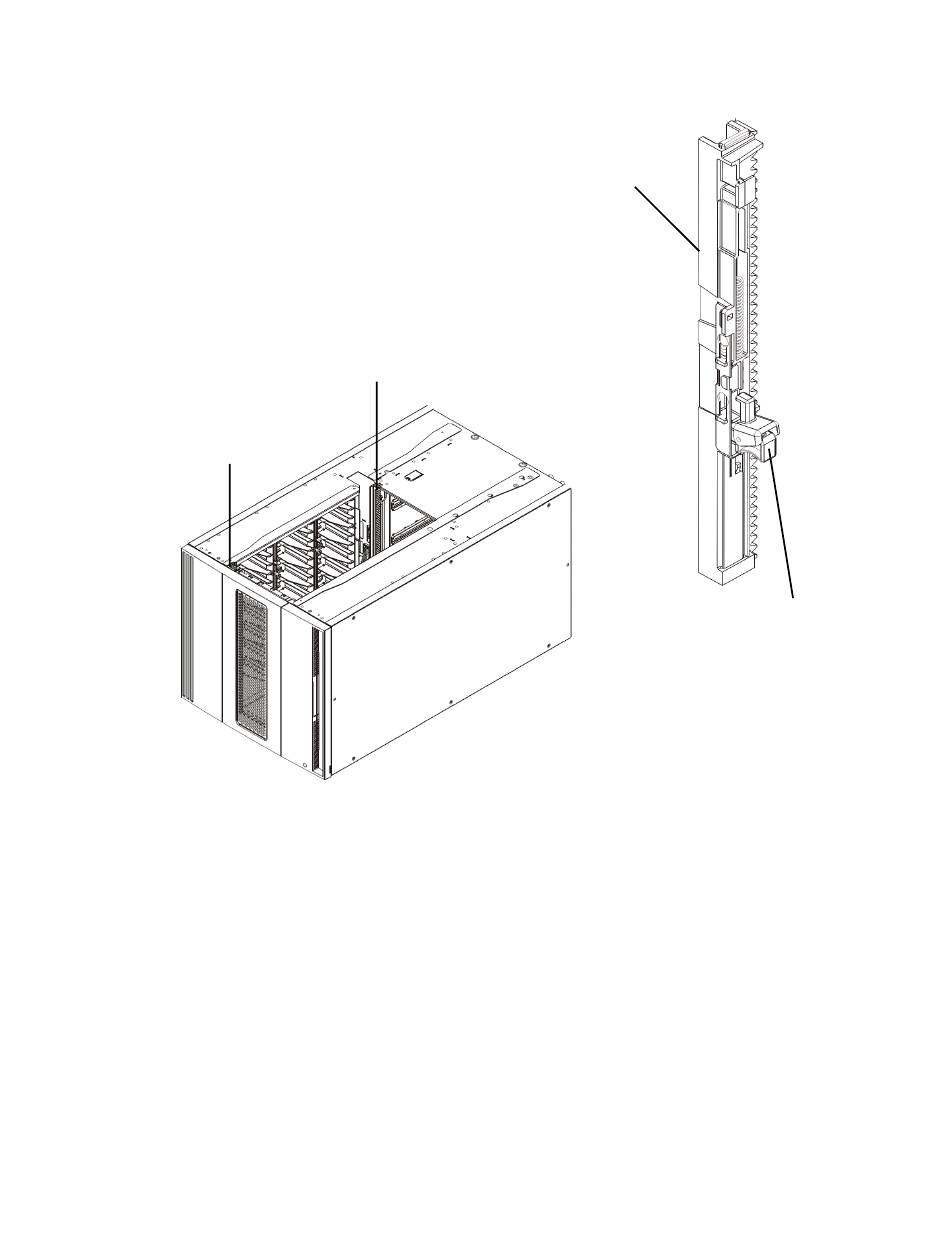

Front Y-rail
g. From the front of the library, open the I/E station and access doors of the expansion module.
Squeeze the handle of the Y-rail release mechanism, lift it out of its locked position, and slide
it downward as far as it will go.
h. From the back of the library, find the rear Y-rail release mechanism, which is located in the
interior of the right side of the module. Squeeze the handle of the Y-rail release mechanism, lift
it out of its locked position, and slide it downward as far as it will go.
10
Y-rail (this end up)
Rear Y-rail
Squeeze here
to release
