Operation

TO START THE HEATER
1. Fill the tank with paraffin until fuel gauge points to "F".
2. Be sure fuel cap is secure.
3. Plug power cord into electrical outlet.
4. Turn thermostat control knob to
(70/125/175/215 only). The setting range is from 5
C. Push the Power switch to the "ON" position. The power
indicator lamp and room temperature display (125/175/215
only) will light and the heater will start.
Optimum pressure occurs when the nose cone is cherry red
and there are no extending flames from the heater.
NOTE: The room temperature display (125/175/215 only) will
indicate the following:
- When temperature is less than -17.8
- When temperature is above 37.3
- Between -17.8 and 37.3
° °
TO STOP THE HEATER:
turn the Power Switch to "OFF" position, and unplug the Power
Cord.
TO RESTART THE HEATER
1. Wait ten seconds after shutting off heater.
2. Turn the Power Switch to "ON" position.
3. Be sure to follow all starting procedure precautions.

LONG TERM STORAGE

Drain Fuel Tank
1. For models PT-45/70T-KFA-EU, drain fuel through the
fuel cap opening using an approved siphon. For models
PT-125/175/215-KFA-EU, drain fuel through the Drain Plug at
the bottom of the Fuel Tank.
2. To remove the Drain Plug (125/175/215), pull the Plug Grip
downward and remove seal head from drain hole in tank.
3. Rinse and completely empty the tank.
4. To replace, push the drain head fully into the drain hole and
secure by pushing the seal cap fully into the head hole.
IMPORTANT: Never store leftover fuel over the summer.
Using old fuel can damage your heater.
Store heater in a dry, well-ventilated area! If your heater
cannot be stored indoors, a tarp or weatherproof cover must be
used to protect the heater.
Be sure that the storage area is free of dust and corrosive
vapors. Repack the heater in the original shipping material. Keep
the Users Manual in an easily accessible place.
Temp Setting Knob

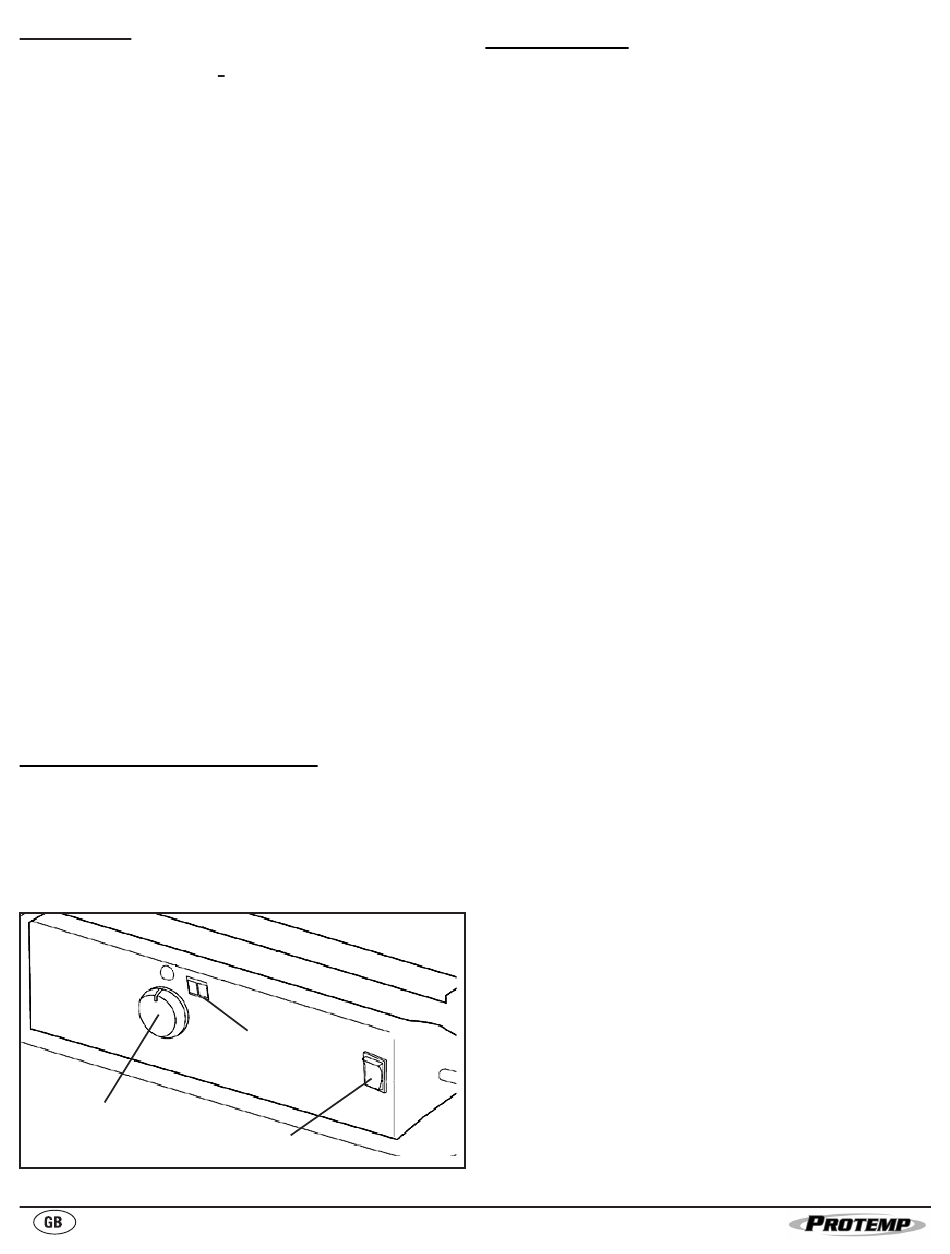

Figure 2. Start The Heater
© 2017, Obelis S.A Registered Address:
Bd. Général Wahis, 53,1030 Brussels, Belgium
:
desired temperature setting
°
C, display says "LO".
°
C, display says "HI".
°
C display shows actual temperature.
Turn the Temp. Setting Knob to left,
LED Operating
Time/ Temp
On / Off Switch

Maintenance

Always service heater in a clean, flat, dry area. Never service
heater while it is plugged in or while hot!
Never service heater in wet conditions. In an emergency, be
sure heater has completely cooled before servicing using a
tarp or weatherproof cover, to ensure heater or electronics
inside heater are not exposed to wet conditions. Do not
C to 45
°
service heater while plugged in under any circumstance.
FUEL/FUEL TANK: Flush every 200 hours of operation or as needed
with paraffin.
AIR FILTERS: Open heater lid to access filters. Filters should be
replaced every 500 hours of operation, or less, depending on conditions.
See figure 7.1 on page 18 for detailed view.
FAN BLADES: Open heater lid to access fan blades. Blades should be
cleaned at least once per heating season. See figure 6.1 on page 48 for
detailed view.
NOZZLES: Open heater lid and remove burner head to access nozzle.
Nozzles should be cleaned or replaced at least once per heating season.
See figure 3.1 on page 48 for detailed view.
SPARK PLUG: Open heater lid to access spark plug. Clean and re-gap
every 600 hours of operation, or replace as needed.
Re-gap the terminals to 3.5mm. See figure 3.1 on page 48 for detailed
view.
PHOTOCELL: Open heater lid to access photocell. The Photocell should
be cleaned at least once per heating season or more depending on
conditions. See figures 4.1 and 5.1 on page 48 for detailed view.
After servicing your heater you should perform the following
function check before commissioning this heater:
- check the air and fuel lines for leaks using a 50/50 soap
solution
- check extension cord for wear, cracks or cuts
- check to see igniter lines are connected securely to spark plug
THERMISTOR PLACEMENT: Ensure the thermistor wire is in the proper
place. The wire should be lying on the bottom shell inside the heater with
plastic end placed under the motor support/motor and away from fan
blade.
ROTOR: The rotor with carbon vanes should be evaluated every heating
season. The rotor is behind the air filters. The vanes should be inspected
for damage or wear. The rotor should be inspected for damage, chips,
wear, cracks.
Check rotor gap: Remove the rear cover. Loosen the two pump ring
screws. Lift the pump ring upwards. Insert a 0.1 mm feeler gauge
and apply slight downward pressure, enough to offer resistance when
attempting to remove gauge. Hand-tighten the two pump ring screws.
Re-install the End Pump Cover and the plastic End Filter Cover. Start the
heater and adjust to the proper pump pressure.
Improper maintenance can lead to poor combustion and soot
production. Never alter or modify the heater. Use only genuine
parts from the manufacturer or sales agent for repair and
maintenance on your heater, and contact the manufacturer or
sales agent before replacing parts other than those specified or
recommended.
PUMP PRESSURE ADJUSTMENT:
While heater is operating, turn relief valve clockwise to increase,
counterclockwise to decrease. Use flat blade screwdriver to turn valve.
Correct pump pressure is on page 3.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not
play with the appliance.
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
