Connecting the Cables

In order for your computer to recognize the flat panel monitor, you
should connect the monitor first, before turning on your computer. Follow
these steps to connect the cables:
1. Turn off your computer.
2. Attach the flat panel monitor's interface cable, indicated in
Figure 1-1, to the appropriate connector on your computer. (See
your computer's documentation.)
3. Tuck the interface cable behind the clip on the base of the
monitor, as shown in Figure 1-1.
4. Connect the power cables as follows:
Connect the DC power cable from the AC adapter to the DC
input power connector on the back of the flat panel monitor,
as shown in Figure 1-2.
DC power

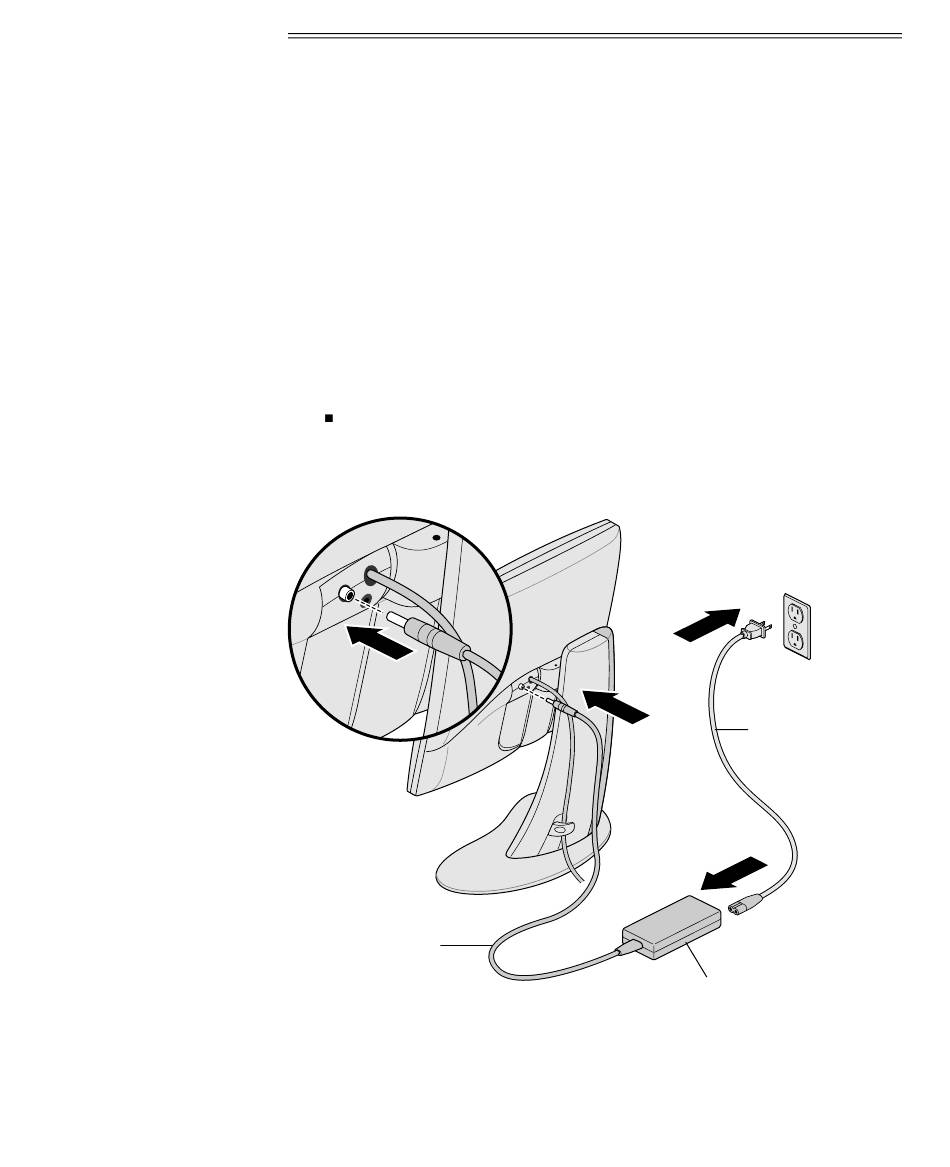

Connecting the Power Cable and AC Adapter
Figure 1-2
AC power
AC adapter
