Ｄ.Carefully push the removable tray into the slot and push the handle back into place.
3. Use Mode and Connection Wiring Descriptions
Users must determine which mode to use prior to installation. Once the installation mode
is selected, please do not change the mode arbitrarily if possible. Especially when you
have already selected RAID 0 mode but change it to JBOD mode later or vice versa, it will
cause data damage in the HD.

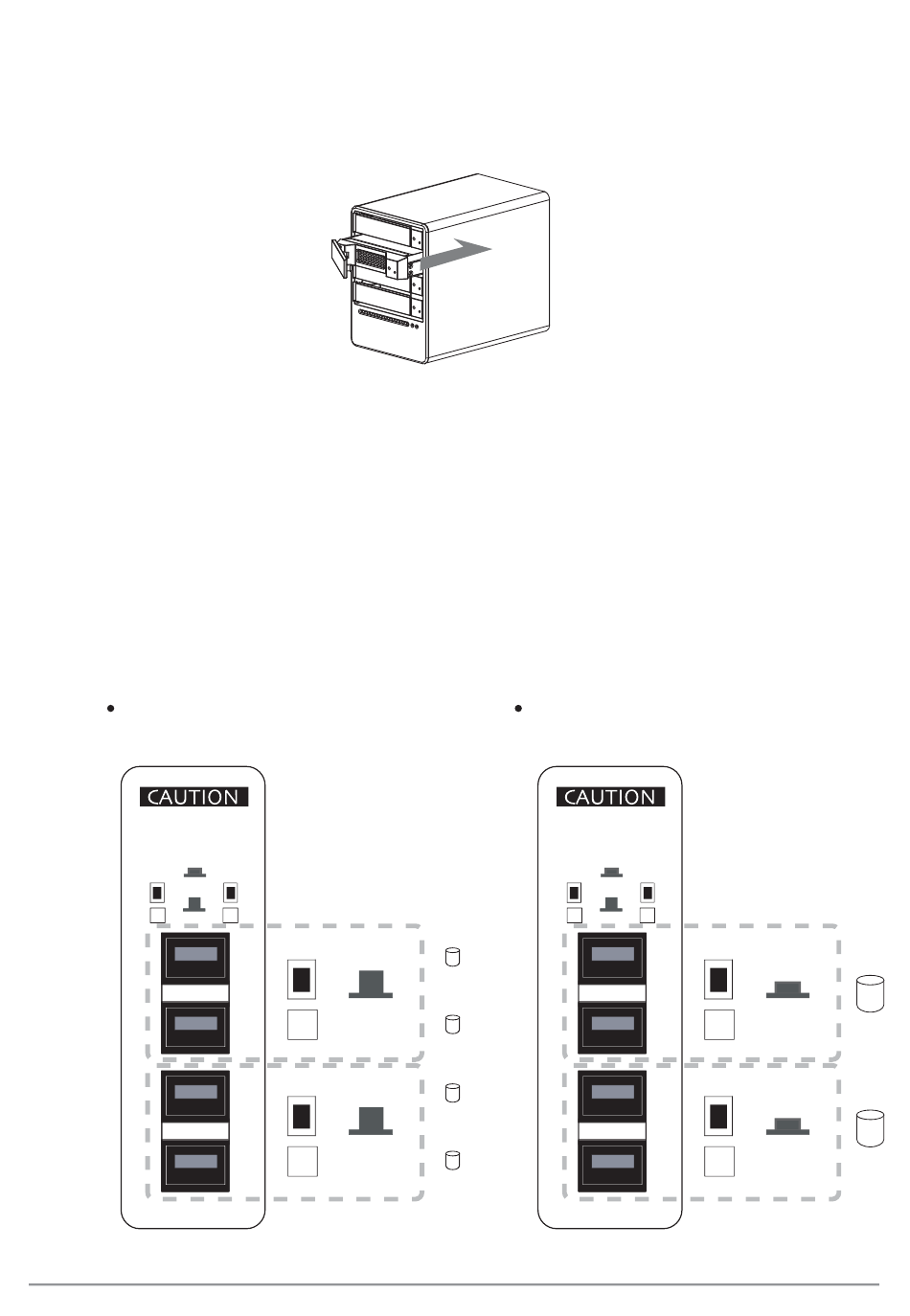

A. Switch Adjustment Mode Illustrations:
With the machine powered off, you can adjust Switch by selecting any of the following
modes from the rear panel of the machine .
a. For 4 Hard Disk Drives Installed
Two JBOD modes, as 4 physical
hard disk drives
Please ensure each
plug has connected
tightly before turn
on the power.
Raid 0
JBOD
1
1
2
1394b
Hardware Installation Procedure
5
2
JBOD
1
JBOD
2
Two RAID 0 modes, as 2 virtual
hard disk drives
Please ensure each
plug has connected
tightly before turn
on the power.
Raid 0
JBOD
1
1
1
2
3
2
4
1394b
2
Raid 0
1
Raid 0
2
1
2
