SuperTrak EX8654, EX8658 Quick Start Guide

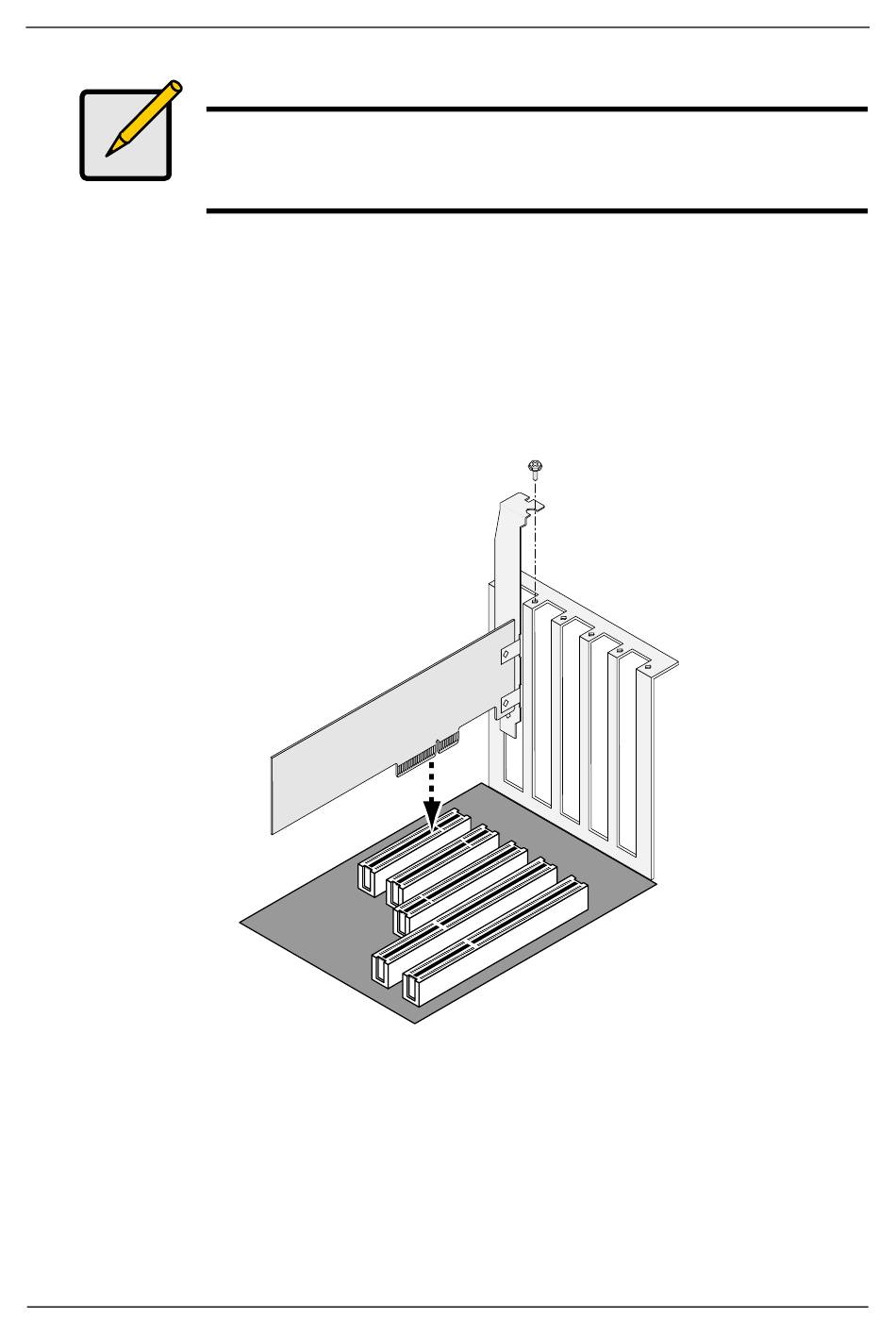

Step 2: Installing the SuperTrak Card

The SuperTrak EX Controller card fits into any available 3.3-volt PCI-Express X8
slot. You can also plug the SuperTrak card into a PCI-Express X16 slot.
1. Remove the cover of your PC or enclosure.
2. Remove the inside slot cover of an available PCI-Express slot on the
motherboard.
3. Install the SuperTrak card into the open PCI-Express slot.
4. Fasten the SuperTrak card bracket to the PC or enclosure case.
5. EX8654 only. Attach one end of a SAS multi-lane cable to the internal SAS
port on the SuperTrak card.
6. Attach one end of a SAS multi-lane cable to an external SAS port on the
SuperTrak card. Attach two cables on EX8658.
See Figures 1 and 2.
The SuperTrak EX Controller cards are PCI Plug-n-Play (PnP)
devices. No changes are necessary in the motherboard CMOS/
BIOS Setup for resources or drive types in most applications.
Note
4
