Setup
2.1.1 Configuring Remotely Controlled
Adjustment of Active Output Power
Level
To configure the remotely controlled Power Level
Adjustment, choose the 'Active power' submenu.
•
Enable the 'Remotely controlled Power Level
Adjustment' radio button.
•
64 possible relay configurations are available.

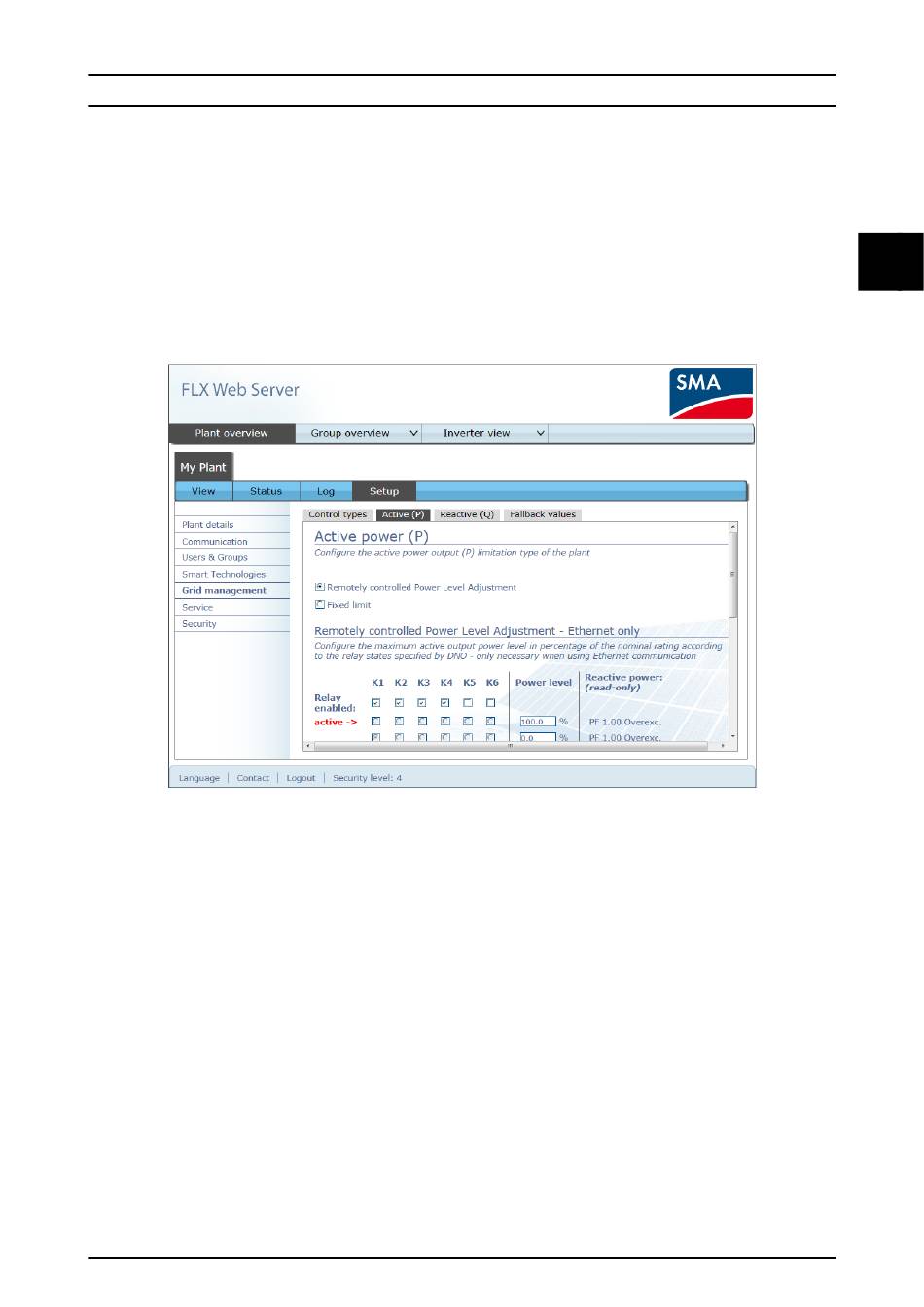

Illustration 2.2 Configuring Active Power Control – PLA
To proceed with the configuration guide, press 'Next'.
•
•
The value entered is set on each inverter and is the
maximum percentage of nominal active power that the
inverter is capable of delivering.
L00410649-02_2q / Rev. date: 2014-06-20
Per default 4 relay inputs are active.
Follow the information provided by the DNO and
enter the appropriate power level for each relay
state.
