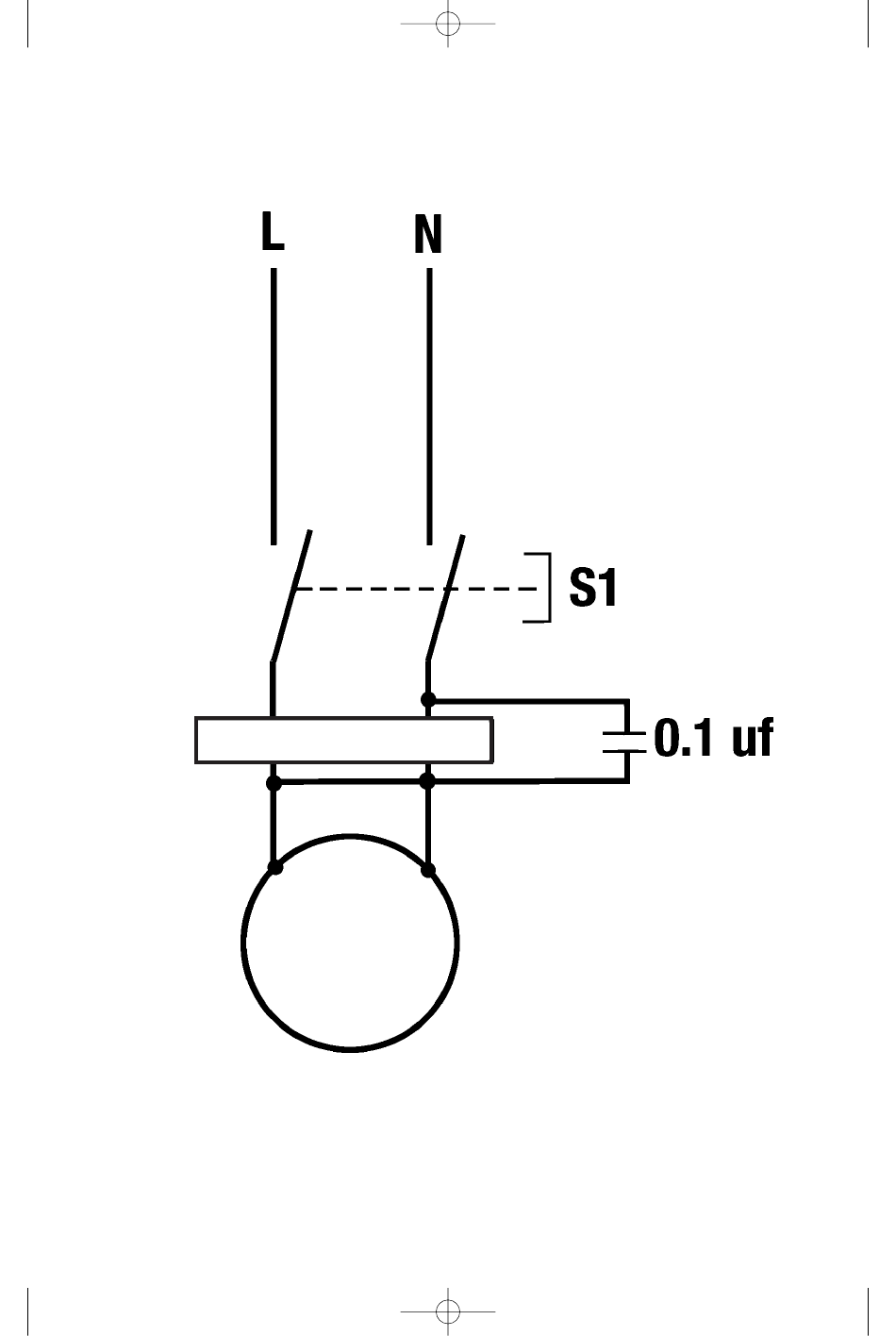

ELECTRICAL DIAGRAM

CAPACITOR FILTER
MOTOR

ELECTRICAL REQUIREMENTS:

The mixer of a class 2 category (double insulation) is powered by a single phase alternating current and
do not require a "u" ground plug.
A differential circuit breaker and one (1) 10A fuse is required.
You must provide a 10/16A single phase current socket.
Always verify that your power supply corresponds to that indicated on the plate on the motor unit and
that it can take the amperage.
