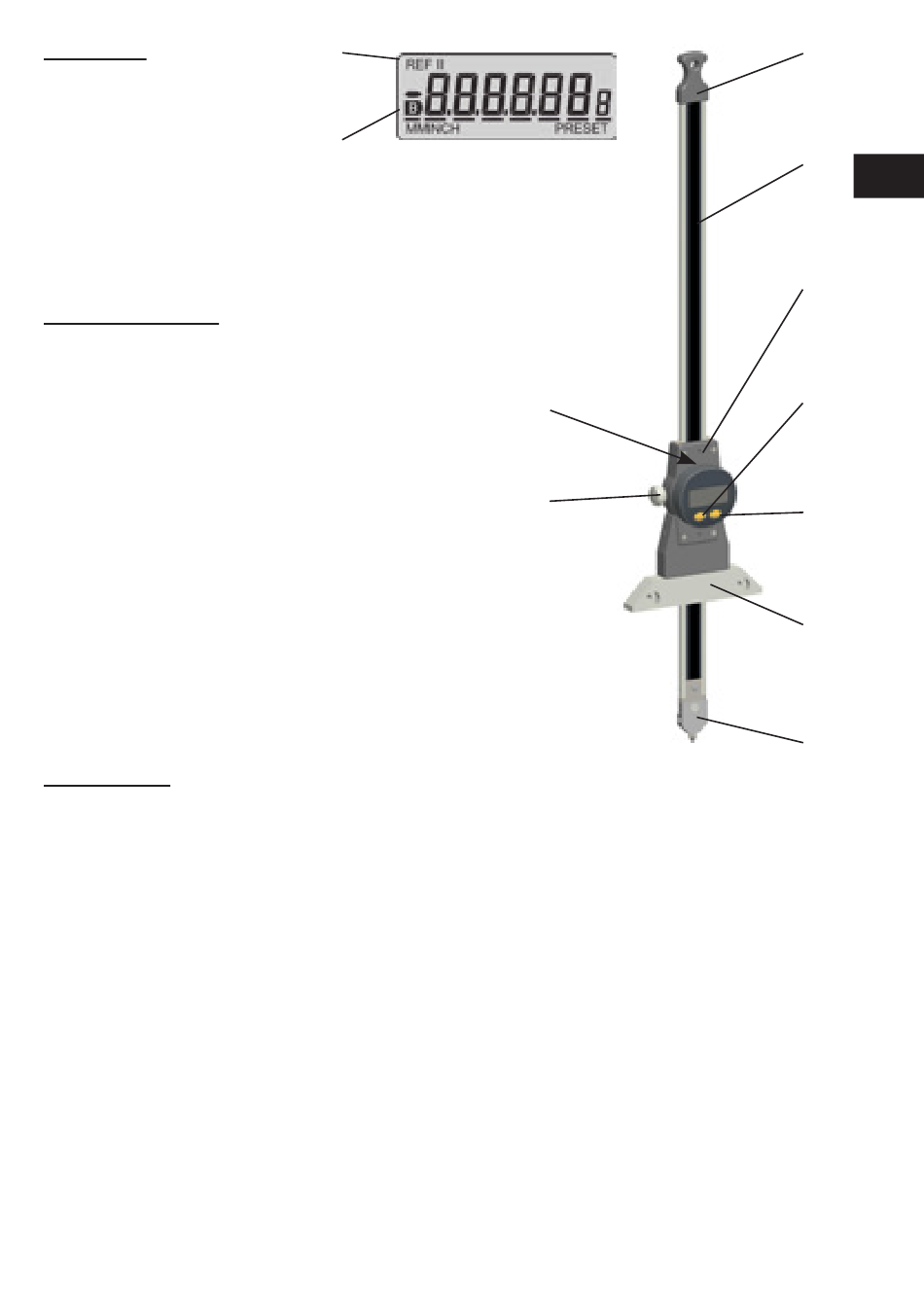

Description
1. Support
2. Perch
3. Slider
4. MODE button
5. SET button
6. Bases
7. Contact points
8. Battery compartment and data output
9. Thumbscrew
10. Reference indicator
11. Indicator of end of battery life
General description
The depth gauge is equipped by a sensor SIS
(Smart Inductive System) with maintenance
of reference position, even when the instru-
ment is in standby mode. Its principle with
mobile cursor allows a very fast positioning.
It includes the following functional features:
•
Input of Preset values.
•
Selection of the measuring unit (mm /
INCH).
•
Water resistant measuring system (oil,
water)
The digital scale is extremely easy to operate
because of its menu selection system.
Spécifications
Resolution:..................................................... 0.01mm / .0005"
Measuring range:........................................... 300mm / 12"
....................................................................... 600mm / 24"
Accuracy: ....................................................... 300mm = 30 µm / .0015"
....................................................................... 600mm = 40 µm / .0020"
Repeatability: ................................................. 10 µm / .0004" (±1 digit)
Weight: .......................................................... 300mm = 440 g
....................................................................... 600mm = 550 g
Max. displacement speed: ............................. > 2 m/s / > 80 "/s
Number of measurements per second: ......... > 10 meas./s
Measuring unit: .............................................. metric (mm) /imperial (Inch) (direct conversion)
Measuring system: ........................................ Sylvac inductive system (patented)
Power supply: ................................................ 1 lithium battery, 3V, type CR2032
Consumption: ................................................ 93 μA (active) / 12,5 μA (standby)
Self-contained use: ........................................ 6000 hours
Operational temperature:............................... +5° to +40°C / +41° to +104°F
Conformity: .................................................... CEM: CE/2004/108 / ROHS: 2002/95
Degree of protection of the electronic unit: .... IP 54 (according to IEC 60529)
Specific accessories: ..................................... RS232/USB connection and power supply
