Back Panel - Thinknx Micro Inbetriebnahmeanleitung

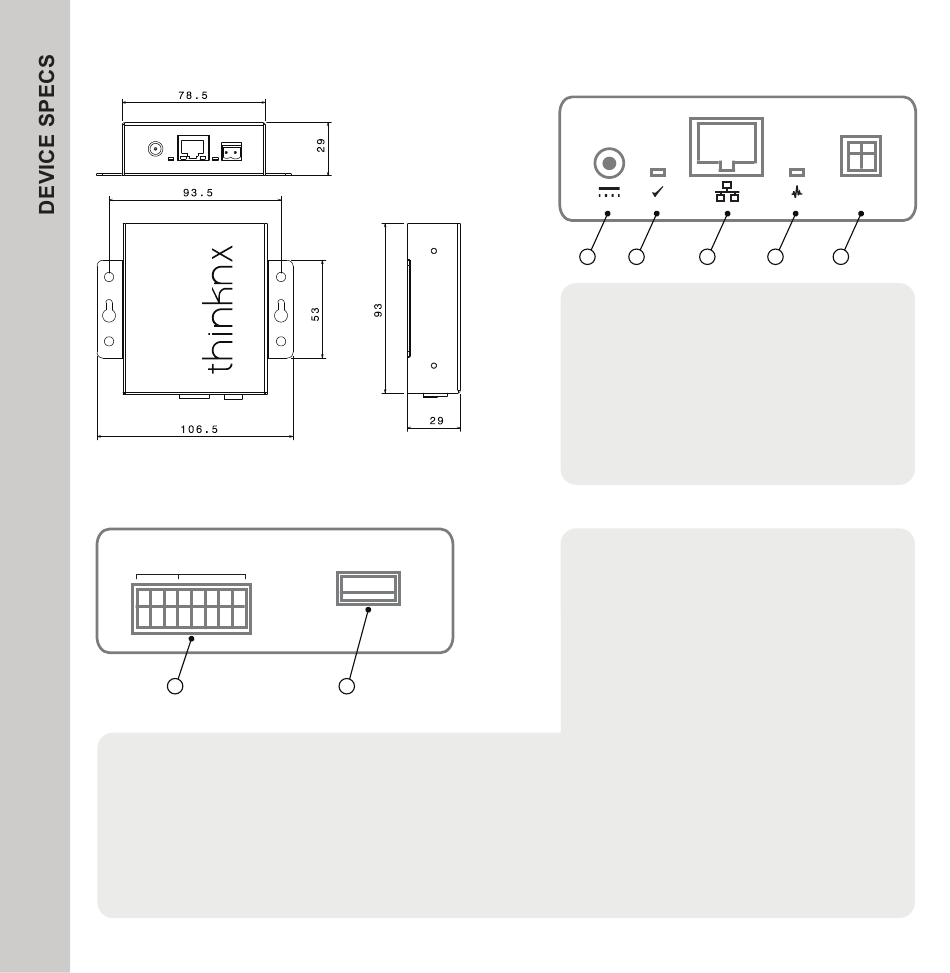

Measurements

Back Panel

RS485 RS232
1 2 3 4 5 6 7 8
A
Only for Brickbox:
A Serial ports (refer to right panel)
Only for Micro Z-Wave:
B USB port for Z-Wave Dongle
B
Front Panel (all devices)
1 2 3
1 Power supply connector
2 Power supply LED
3 Ethernet port (DHCP)
4 KNX activity LED indicator
5 EIB / KNX connector (respect
polarity)
Brickbox serial ports:
RS485 - port number 5
1 Ground (shield)
2 A (D+)
3 B (D-)
RS232 - port number 4
4 Ground
5 CTS (Clear To Send - input)
6 RTS (Request To Send - output)
7 RX (Receive Data - input)
8 TX (Transmit Data - output)
_
+
BUS
4 5
