b. Camera (SVCM 82501)
Power supply (straight plug) : 5V DC.
Power consumption : 1000 mA.
Channels : 4.
Frequency transmission : 2,402-2,454 GHz.
Light sensitivity : 1-8 lux* (* Use an additional lighting system overnight).
Infrared Led : 24 infrared diodes.
Weight (without bracket) : 240 g.
Operating temperature : -10°C to 40° approx.
Dimensions : 164 x 64 x 42 (mm).
Resolution : 640 x 480 pixels at 25 frames/s.
Viewing angle : 53°.
Digital link between the camera and the monitor (this technology limits interference and
disturbances in the link).
Range: approximately 150 m in free field.

INSTALLING THE CAMERA

4
CAUTION
in the wall.

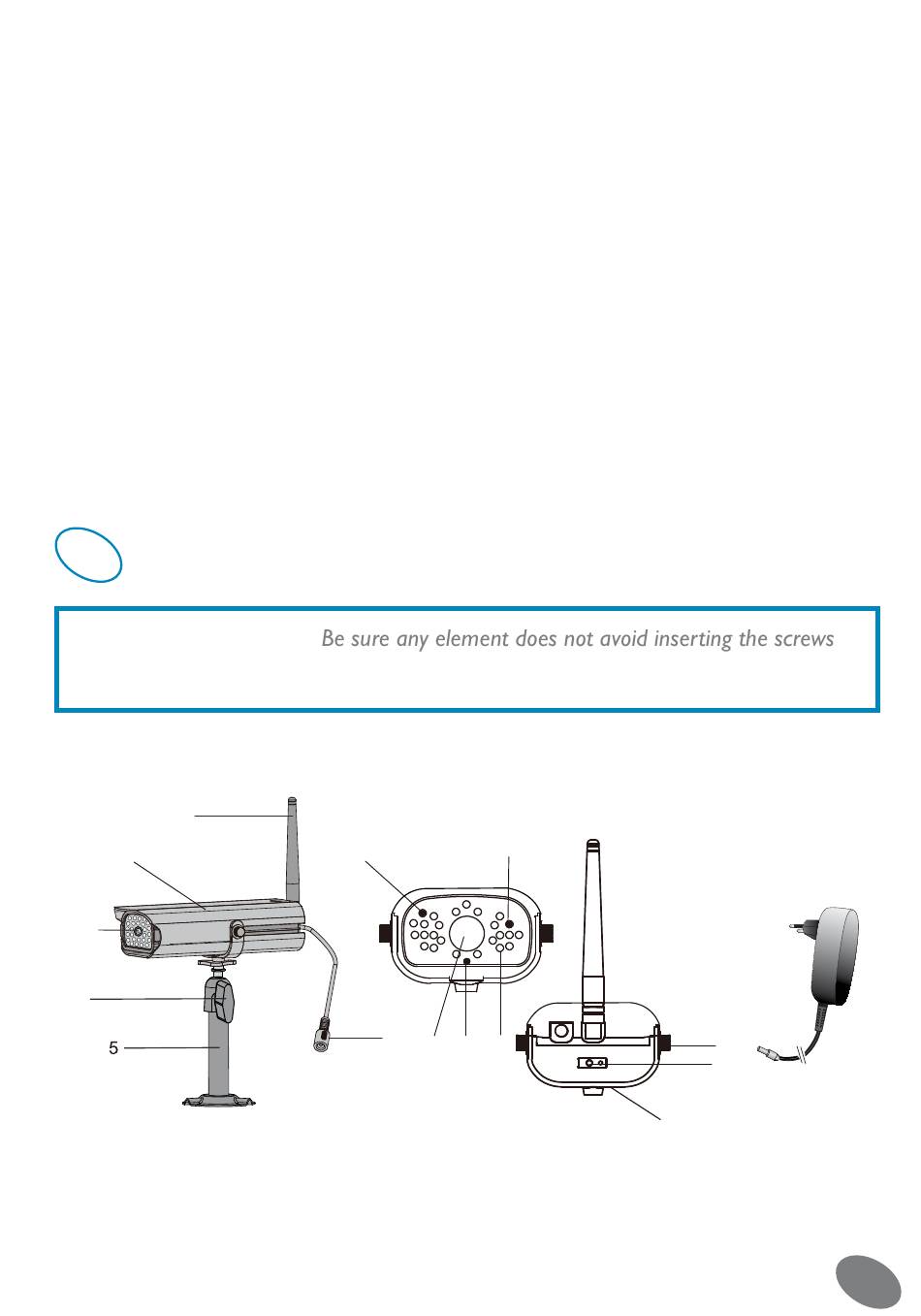

a. Description of the camera
1
11
10
2
3
4
7
3 8 9
12
13
14
6
1. Adjustable antenna to be screwed at the back of the camera.
2. Protection of the cameras (IP 44).
3. Lens of the camera.
4. Screw to fix the position of the camera.
