Integra MILTEX Gebrauchsanweisung Seite 6

3. Convergence Angle Test
The convergence angle of the loupe optics is preset according to the working distance.
3.0 To test the convergence angle, draw a single dot on a piece of paper.
Focus on the dot with the loupe optics at the proper working distance. The convergence
settings should not require adjustment unless two dots are seen.
3.1 Two horizontal dots indicate horizontal misalignment. Proceed to step 5 to correct the
convergence angle.
3.2 In the rare case that two vertical dots indicate a vertical misalignment, the loupes
should be returned to Miltex for adjustment.

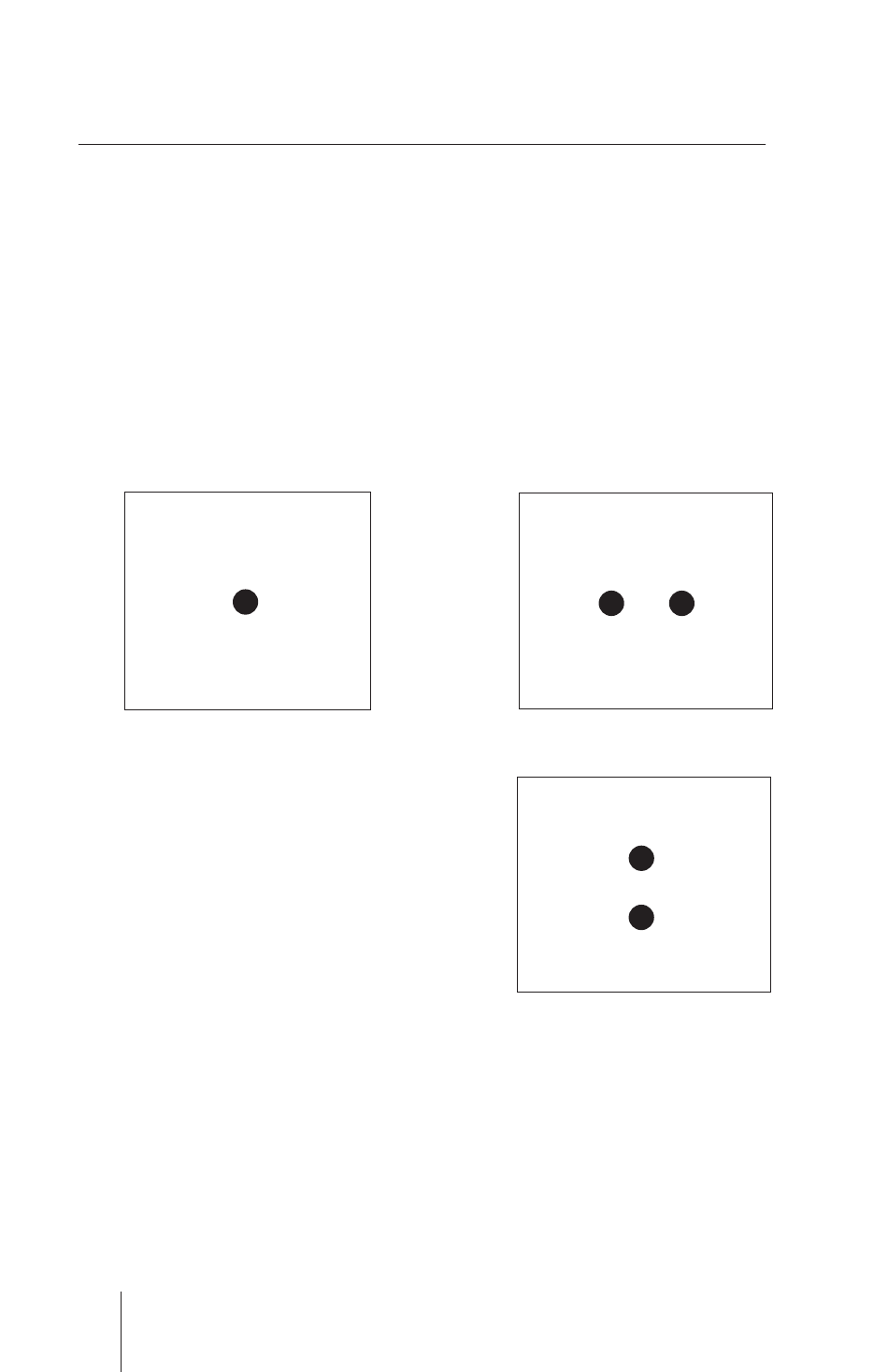

3.0
Normal
6 www.miltex.com
3.1
Horizontal misalignment
3.2
Vertical misalignment
