Step 3: Connecting Your Data Logger - PICO ADC-20 Kurzanleitung

Quick Start Guide
Temperature
Product
Storage
ADC-20 & ADC-24 –20 to 60 °C
DrDAQ –20 to 80 °C
PicoLog 1000 Series –20 to 80 °C
PicoLog CM3 –20 to 80 °C
PT-104 –20 to 80 °C
TC-08 –20 to 60 °C
Product Altitude
All data loggers
2000 m
Some Pico data loggers have enhanced environmental specifications. Refer to the device's
User's Guide and Data Sheet for further information.
2.5 Care of the product
The product contains no user-serviceable parts. Repair, servicing and calibration require
specialized test equipment and must only be performed by Pico Technology or an approved
service provider. There may be a charge for these services unless covered by the warranty.
To prevent injury or death, do not use the product if it appears to be damaged in any way, and
stop use immediately if you are concerned by any abnormal operations.
When cleaning the data logger, use a soft cloth and a solution of mild soap or detergent
in water. To prevent electric shock, do not allow water to enter the casing, as this will
compromise the electronics or insulation inside.
Do not tamper with or disassemble the data logger, connectors or accessories. Internal
damage will affect performance.
DO112-8
Humidity
(RH, non-condensing)
Stated
Operating Storage
accuracy
0 to 45 °C 20 to 30 °C 5% to 95%
0 to 70 °C 20 to 30 °C 0% to 95%
0 to 70 °C 20 to 50 °C 5% to 95%
0 to 50 °C 20 to 28 °C 5% to 95%
0 to 70 °C 20 to 30 °C 5% to 95%
0 to 50 °C 20 to 30 °C 5% to 95%
Pollution degree
Pollution degree 2
WARNING
CAUTION
Copyright © 2005–2018 Pico Technology Ltd. All rights reserved.

Step 3: Connecting your data logger

Make sure you have already installed the PicoLog software before you connect the data logger.
The data logger will not work without the software.
Operating

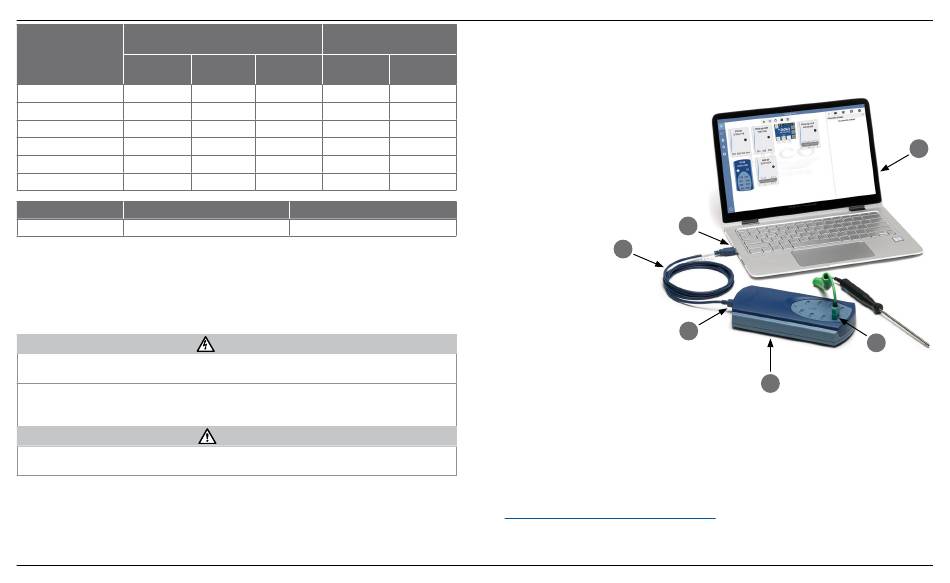

1. Connect the data logger to your PC using the USB cable supplied. See the diagram below
for more information.
5% to 80%
5% to 80%
a. Pico USB data logger
5% to 80%
b. Data logger USB port
20% to 80%
c. Pico USB cable
d. PC USB port
20% to 90%
e. PC
5% to 80%
f. Data logger input connectors
2. Wait for your computer to install the data logger. While doing so it will display a message
or icon in the taskbar telling you it has found the device.
3. Run the software by clicking the new PicoLog 6 icon on your desktop. PicoLog 6 will
automatically detect and identify your data logger. You are now ready to begin data
acquisition.
For more detailed instructions on setting up your data logger, including Ethernet connectivity
(PT-104 and PicoLog CM3 only), see the product User's Guide.
For more information on the software, please refer to the A to Z of Data acquisition and logging,
at www.picotech.com/library/a-to-z-data-loggers.
d
c
b
a
USB Data Logger
e
f
3
